Главная Каталог товаров Polaris EPC 2002 Polaris ATV Polaris 2002 XPLORER 400 (A02CG38CA) Polaris 2002 ATV CLUTCH COVER - A02CG38CA (4970247024C05) | CLUTCH COVER - A02CG38CA (4970247024C05)

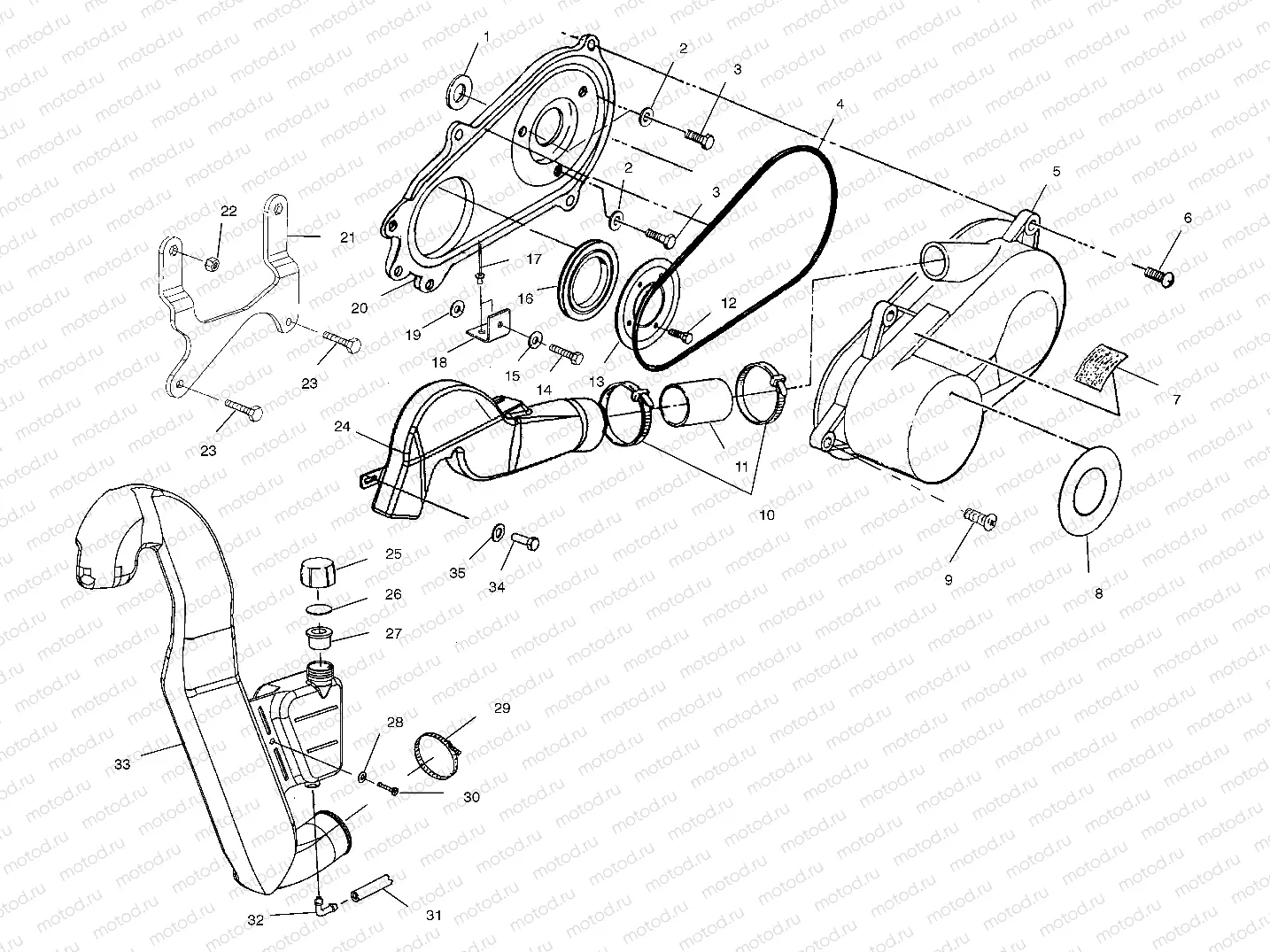

CLUTCH COVER - A02CG38CA (4970247024C05) | CLUTCH COVER - A02CG38CA (4970247024C05)

CLUTCH COVER - A02CG38CA (4970247024C05) | CLUTCH COVER - A02CG38CA (4970247024C05)

Например: 5411553

1

5411553

SEAL CVR INNER

2

7555748

Rondelle

3

7512278

Vis

4

5521301

SEAL OUTER CLUTCH COVER

5

5438142-070

COVER-CLUTCH OUTER HV BLK

6

7512093

SCREW #14 X 1-3/4

7

7078689

Gebruik/Utilisez 7078689

8

7074782

DECAL,AUTO.TRANSMISSION

9

7512094

Vis

10

7080707

CLAMP BAND NARROW

11

5411489

BOOT DUCT HI-FLOW

12

LR--

CALIPER, BRAKE, RH

13

5222446-067

BRKT RETAINER SEAL

14

7512098

Vis

15

7555935

Rondelle

16

5412637

SEAL-COVER CASE ENGINE

17

7661638

RIVET INTERLOCK B

18

5247949

BRKT-CLUTCH COVER FRT PLTD

19

7555932

Rondelle (plastic)

20

2201159

COVER CLUTCH INNER 400

21

5242208-067

BRKT,CLUTCH,LOW,BLK

22

7547067

NUTSERT,HEX

23

7517386

Vis

24

5434213

DUCT-AIR OUTLET

25

5430743

CAP OVERFLOW

26

5810279

GASKET

27

5433774

CAP PLUG9X(GRN) FLEX TEMP

28

7555783

WASHER FLAT

29

7080511

CLAMP NARROW BAND

30

7512018

Vis

31

8450003-1525

LINE FUEL 1/4 ID(1525 CM.)

32

7052065

FITTING 90 DEGREE

33

5433342

DUCT,CLUTCH INLET,HYBRID

34

7512232

Vis

35

7558301

WASHER FLAT
