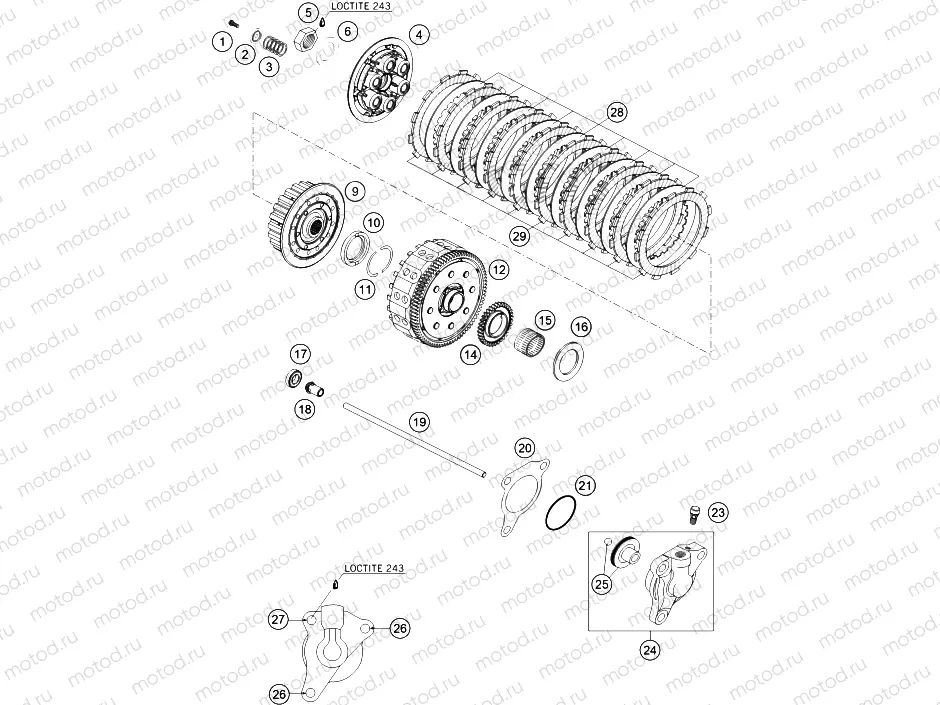

CLUTCH

CLUTCH
Например: 0984060203
1
0984060203
AH SCREW DIN6912-M 6X20 8.8
2
76232006000
SPRING RING 07
3
58532080001
CLUTCH SPRING 3,0X33,5
4
76232003000
PRESSURE PLATE 07
5
60036073150
Nut (M20x1,5)
6
47032020000
STOP DISC 20X32X2
9
76232002000
INNER CLUTCH HUB 07
10
75032009000
STEPPED WASHER 07
11
75032007000
HALF-WASHER 07
12
76232001044
OUTER CLUTCH HUB CPL.
14
75032050001
OIL PUMP DRIVE WHEEL 07
15
56532095000
Needle bearing
16
75032017000
WASHER 26X40X2 07
17
0625060016
Roulement (C3)
18
75032055000
PRESSURE BOLT 07
19
75032054100
PUSH ROD 08
20
59032065100
GASKET F. OUTPUT CYLINDER
21
0770300015
O-Ring
23
54732064000
BLEEDER SCREW WITH CAP
24
75032061044
OUTPUT CYL. WITH BLEEDER SCREW
25
75032061044
OUTPUT CYL. WITH BLEEDER SCREW
26
0025060356
Vis
27
0025060206
Vis
28
58332112000
STEEL DISK 1,5 MM LC4'94
29
58332011300
LINING DISK 2,7MM FCC 02 (2,7MM FCC 02)
