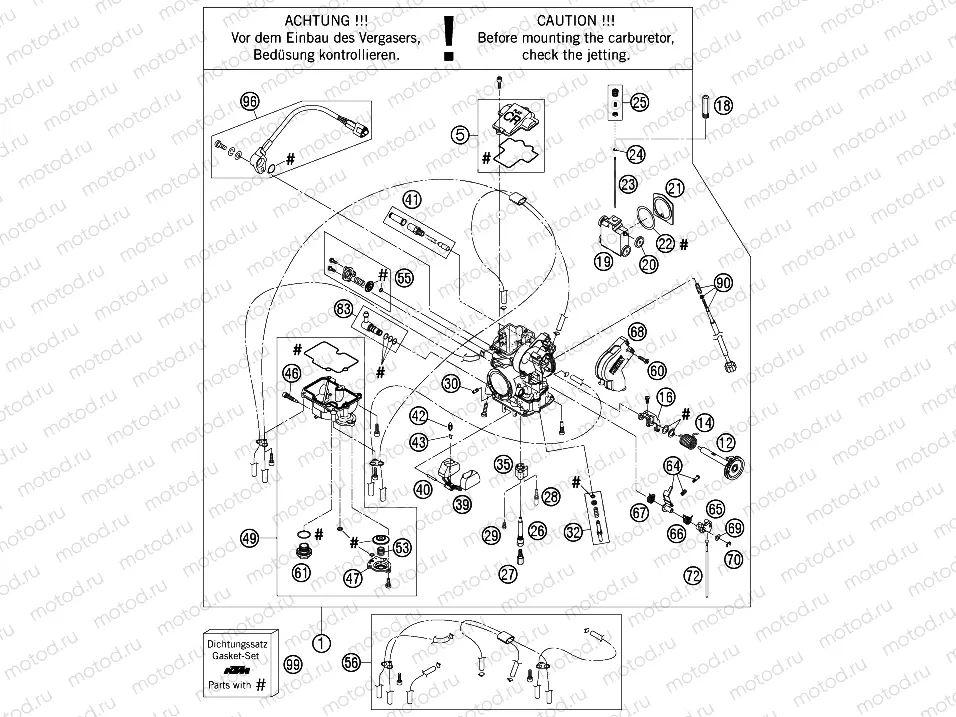

CARBURETOR

CARBURETOR
Например: 76231001000
1
76231001000
CARBURETOR FCR-MX4100BTPS 07
5
57331027044
CARBURETOR COVER WITH GASKET
12
57331046100
THROTTLE SHAFT CPL. 06
14
57331046050
COIL SPRING THROTTLE SHAFT
16
76231035051
LINK ARM THROTTLE VALVE CPL.07
18
59031029010
SLIDE STOP 03
19
76231035000
THROTTLE VALVE CPL.
20
59031035050
BUSHING THROTTLE VALVE
21
57331035153
GASKET PLATE THROTTLE VALVE 04
22
59031035052
GASKET WASHER THROTTLE VALVE
23
57331034100
JET NEEDLE KEIHIN OBEKP
23
57331034200
JET NEEDLE KEIHIN OBEKQ
23
57331034300
JET NEEDLE KEIHIN OBEKR
23
57331034400
JET NEEDLE KEIHIN OBEKS
23
57331034500
JET NEEDLE KEIHIN OBEKT
23
59031023200
JET NEEDLE KEIHIN OBDVT
24
59031029000
BAR CLIP
25
57331032000
NEEDLE SET SCREW CPL.
26
59031121000
NEEDLE JET FCR-MX
27
54531623172
MAIN JET 172 KEIHIN
27
54531623175
MAIN JET 175 KEIHIN
27
54531623178
MAIN JET 178 KEIHIN
27
54531623180
MAIN JET 180 KEIHIN
27
54531623165
MAIN JET 165 KEIHIN
27
54531623168
MAIN JET 168 KEIHIN
27
54531623170
MAIN JET 170 KEIHIN
27
54531623162
MAIN JET 162 KEIHIN
28
54531607042
IDLE JET 42 KEIHIN
28
54531607045
IDLE JET 45 KEIHIN
28
54531607048
IDLE JET 48 KEIHIN
29
59031051085
STARTER JET 85
30
57331107100
IDLE AIR JET 100 KEIHIN
32
59031017100
ADJUST SCREW CPL. FCR-MX
35
57331085000
BUFFER PLATE
39
57331009000
FLOAT CPL.
40
57331008000
ARM PIN FLOAT
41
58502096044
CONNECT. COLD START CABLE CPL.
42
54631220000
FLOAT NEEDLE
43
54531621000
Collier
46
76231155000
DRAIN SCREW . O-RING
47
57331060000
COVER ACCELERATOR PUMP
49
78031011000
FLOAT CHAMBER CPL. 08
53
59031059000
COIL SPRING
55
57331090000
AIR CUT VALVE 2002
56
57331098000
BREATH.HOSE FCR-MX KEIHIN CPL.
60
0965050103
FLAT HEAD SCREW DIN0965-M 5X10
61
54531699000
PLUG M 18X1
64
57331062000
INTERMEDIATE LEVER CPL.
65
57331056000
LINK LEVER
66
57331059000
SPRING LINK LEVER
67
57331159000
SPRING INTERMEDIATE LEVER
68
57331038200
CARBURETOR COVER 06
69
57331087000
WASHER LINK LEVER
70
57331084000
E-CLIP
72
57331061000
ROD ACCELERATOR PUMP
83
59031013044
HOSE CONNECTOR CPL.
90
76231025000
STOP SCREW CPL.FCR-MX RALLY 07
96
59031077200
TPS-SENSOR FCRMX 190MM 2006
99
57331099000
GASKET SET FCR-MX KEIHIN (FCR-MX KEIHIN)
