Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100E Z SUZUKI 98 - COWLING (GSX1100ESD)

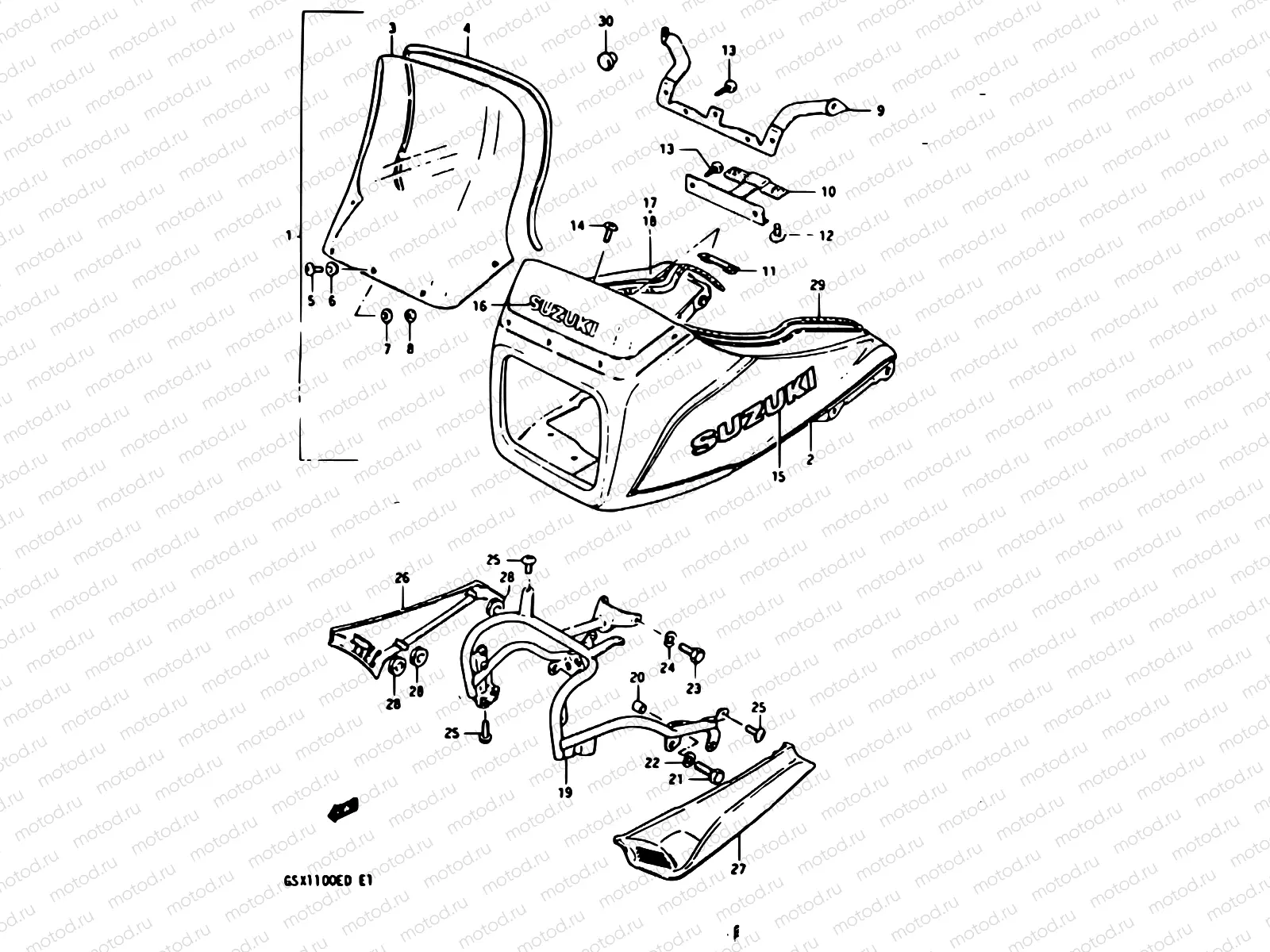

98 - COWLING (GSX1100ESD)

98 - COWLING (GSX1100ESD)

Например: 94400-49X00

1

94400-49X00

1

94611-31330

Window,cowling

1

94400-49520-86S

Cowling assy

1

94400-49520-91J

Cowling assy

2

68190-49500-82S

.tape set

2

68190-49500-93K

.tape set

3

94611-31330

Window,cowling

3

94611-31320

.windows

4

94631-44110

MOLD,COWLING

4 845 ₽/шт

4

94631-31320

.moulding

5

02142-05207

Болт

85 ₽/шт

6

09320-05021

Cushion(5.5X11X4.5)

194 ₽/шт

7

08322-0105B

Шайба

81 ₽/шт

8

08310-00057

Гайка

81 ₽/шт

9

94530-31311

Brace, upper

10

94540-31311

Brace, lower

11

94550-31311

Brace, rh & lh

12

02142-06107

Болт

85 ₽/шт

12

02142-0610B

Винт держатель

85 ₽/шт

13

02142-05127

Болт

85 ₽/шт

13

02142-0512A

Болт

85 ₽/шт

14

08322-0105B

Шайба

81 ₽/шт

15

03211-0510C

Болт

1 330 ₽/шт

16

02142-0510A

Болт

82 ₽/шт

17

08321-01067

Шайба, стопорная

81 ₽/шт

18

08310-00067

Гайка

81 ₽/шт

19

68111-32B10-742

Emblem,cowling

19

68111-32B10-07G

Emblem fuel

20

68197-31310-291

Tape, rh (black)

21

68198-31310-291

Tape, lh (black)

22

94510-31312

Brace

23

09180-08150

Прокладка 8.1X15X1

7 590 ₽/шт

24

01500-08307

Болт

97 ₽/шт

25

08321-01087

Пластина замка

81 ₽/шт

26

01500-0816B

Болт

85 ₽/шт

27

08321-01087

Пластина замка

81 ₽/шт

28

02142-06127

Винт 6X12

81 ₽/шт

29

94431-49500

30

94441-49500

31

09320-08527

Cushion

1 640 ₽/шт

32

09250-06005

Заглушка

1 410 ₽/шт
