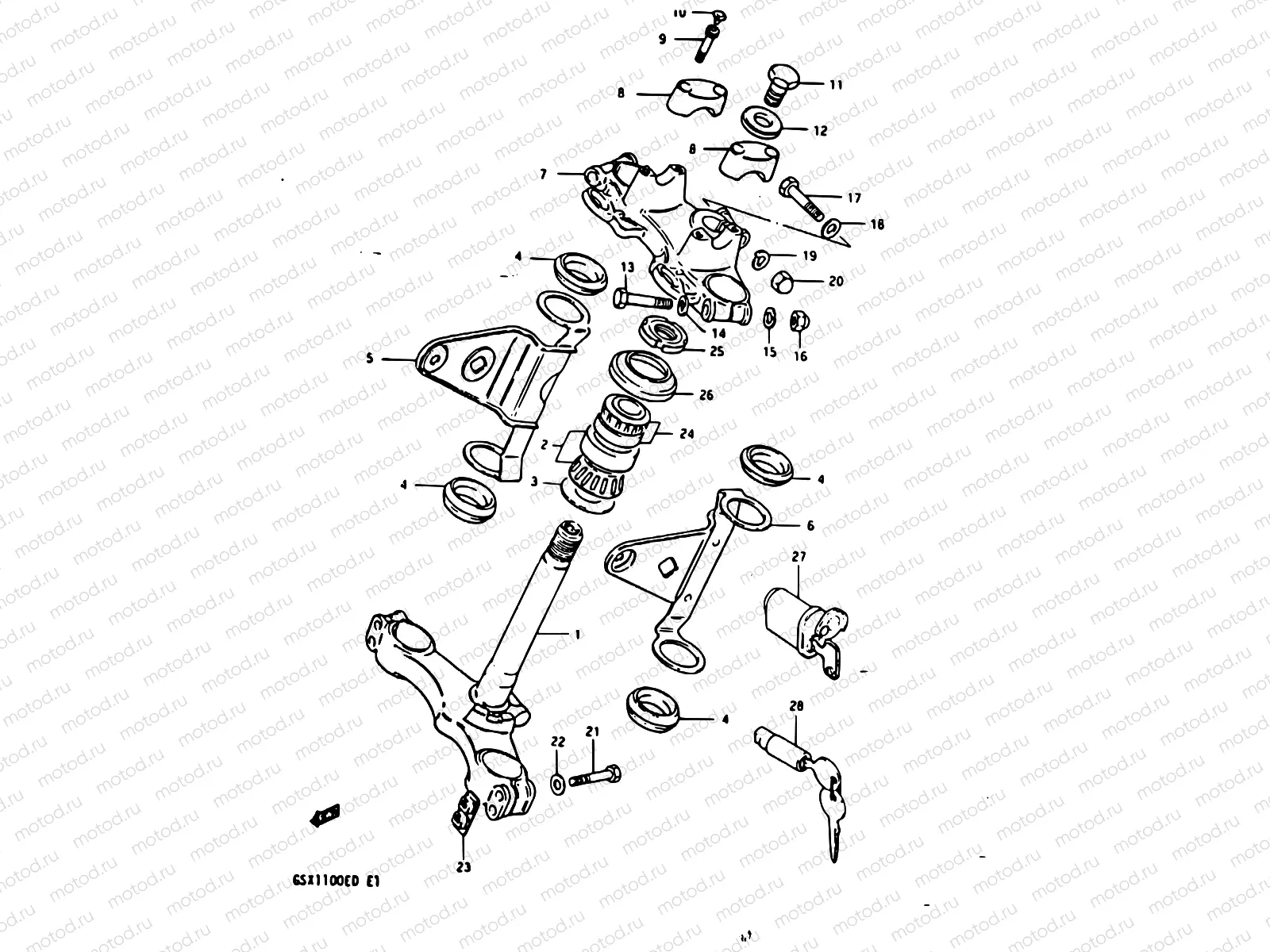

67 - STEERING STEM (GSX1100ED/EXD)

67 - STEERING STEM (GSX1100ED/EXD)
Например: 51410-49520-291
1
51410-49520-291
Steering stem
2
09265-30034
Bearing
3 392 ₽/шт
3
09181-30184
SHIM(30X40X1.5)
194 ₽/шт
4
51553-34300
упругая прокладка подвеса
204 ₽/шт
5
51530-49510-291
Bracket, head lamp rh
6
51540-49510-291
Bracket, head lamp lh
7
51311-49400-291
Steering stem head
8
56211-26D00
Держатель рукоятки, верхний
2 424 ₽/шт
9
07130-0830A
БОЛТ (хром)
2 070 ₽/шт
10
09250-06004
CAP(OD:14.5)
97 ₽/шт
11
51352-31305
Болт
1 449 ₽/шт
12
51356-43530
WASHER,STEERING STEM
387 ₽/шт
13
01500-1055A
БОЛТ
2 070 ₽/шт
14
08322-0110B
Шайба
85 ₽/шт
15
08321-01107
Шайба, стопорная
85 ₽/шт
16
08313-10107
Гайка
1 520 ₽/шт
17
01500-08507
Болт
1 840 ₽/шт
18
08322-01087
Шайба
81 ₽/шт
19
08321-01087
Пластина замка
81 ₽/шт
20
08313-10087
Гайка
1 330 ₽/шт
21
01500-08557
БОЛТ
1 840 ₽/шт
22
08322-01087
Шайба
81 ₽/шт
23
51458-49000
NUT,FR FORK INNER TUBE
230 ₽/шт
24
09265-25019
BEARING(25X47X15)
2 746 ₽/шт
25
51631-34200
Nut
26
51643-40503
Seal,dust
727 ₽/шт
27
51900-45400
Lock assy, steering (executed locally)
28
51900-309V0
LOCK SET,STEERING
13 959 ₽/шт
