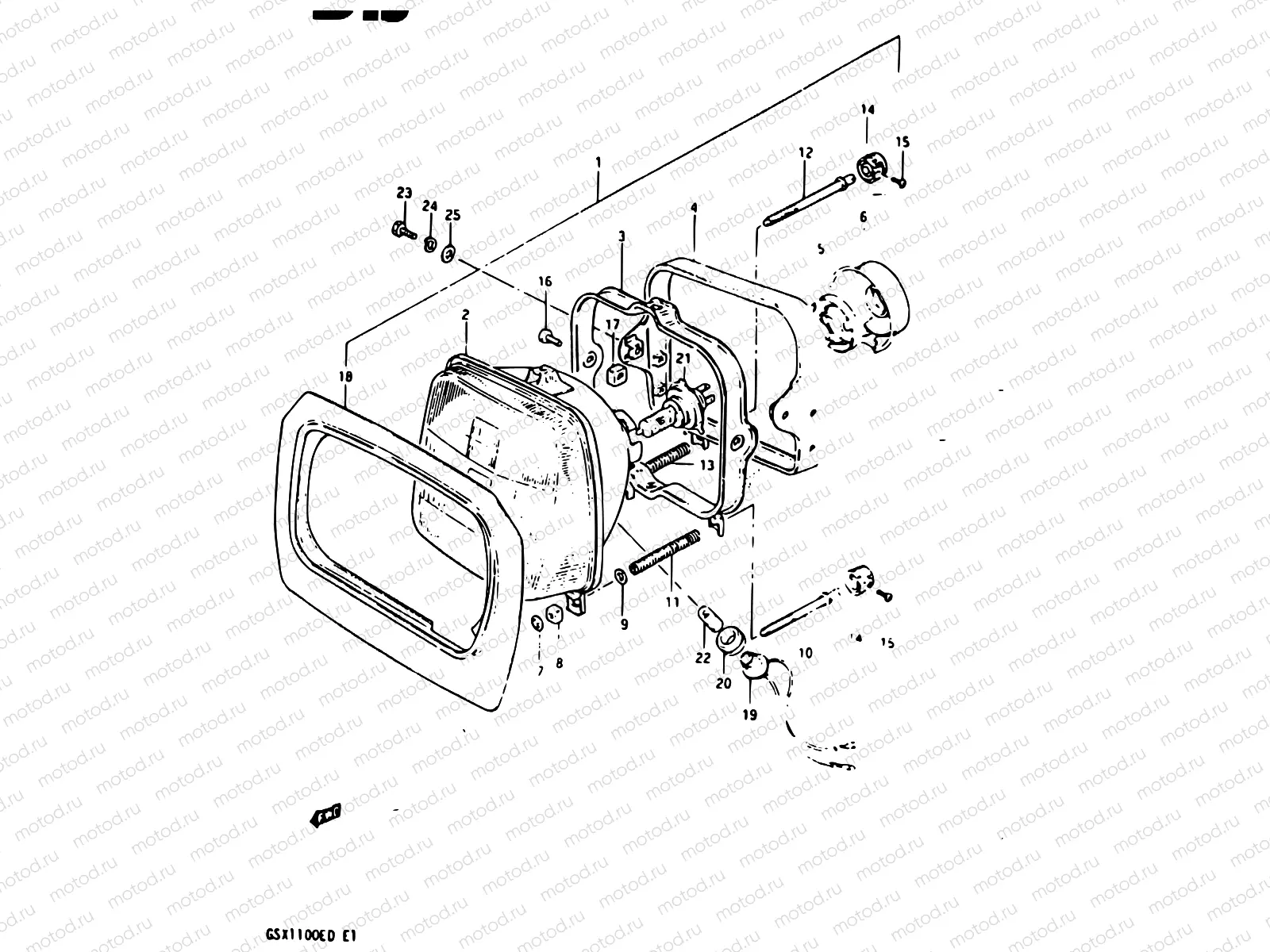

35 - HEADLAMP (GSX1100ESD)

35 - HEADLAMP (GSX1100ESD)
Например: 35100-49530-999
1
35100-49530-999
Headlamp assy
1
35100-49520-999
Headlamp assy
1
35100-49550-999
Headlamp assy
2
35121-49530
.unit
2
35121-49520
.unit
2
35121-49550
Unit,head lamp
3
35130-49500
.mounting ring
4
35141-49500
.housing
5
35136-49200
Holder,head lam
6
35173-38A00
COVER,SOCKET
931 ₽/шт
7
09148-04010
Гайка 4MM
119 ₽/шт
8
35152-49500
.nut
9
09160-06073
WASHER(6.5X12X1.2)
1 560 ₽/шт
10
35151-49320
Винт настройки
1 216 ₽/шт
11
35154-49500
.spring, lh
12
35151-49320
Винт настройки
1 216 ₽/шт
13
35154-49320
Пружина
309 ₽/шт
14
35136-49331
Болт
254 ₽/шт
15
02112-0310A
Болт
1 060 ₽/шт
16
02112-05127
Болт
81 ₽/шт
17
35135-45900
Гайка
170 ₽/шт
18
35129-49500
.shade
19
36118-49320
SOCKET
864 ₽/шт
20
36116-22630
JOINT,RUBBER
422 ₽/шт
21
K9206-91002
Bulb,12v 60/55w
22
09471-12063-LCP
Bulb 6v/1,7w
23
01500-06207
Болт
81 ₽/шт
24
08321-01067
Шайба, стопорная
81 ₽/шт
25
08322-0106A
Шайба
81 ₽/шт
