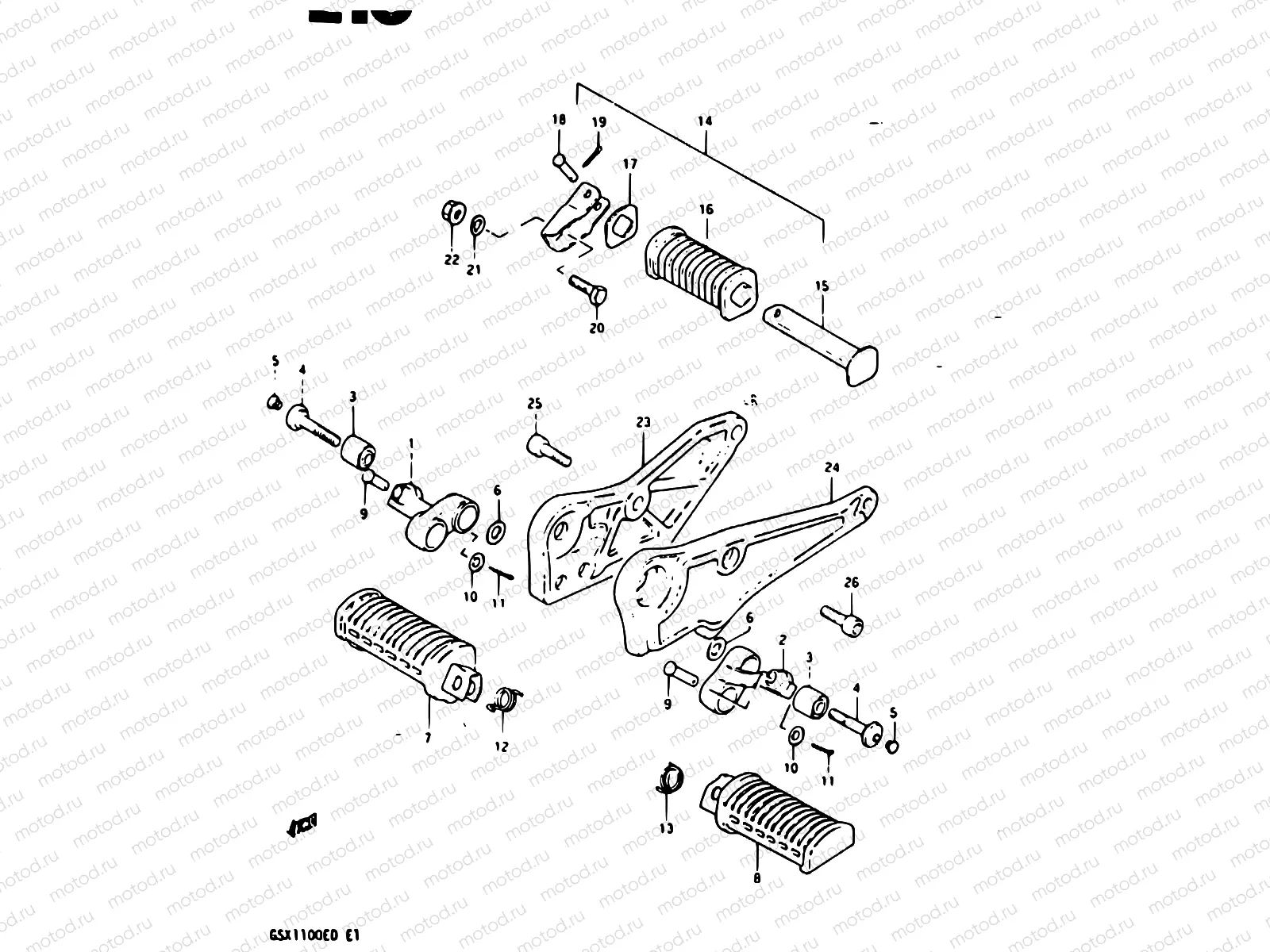

43 - FOOTREST (MODEL Z)

43 - FOOTREST (MODEL Z)

Например: 43510-49510

1

43510-49510

Repose pieds (Front, RH)

2

43520-49510

Repose pieds (Front, LH)

3

09319-10008

BUSH

5 980 ₽/шт

4

09106-10010

Vis

5

43575-34500

CAP

170 ₽/шт

6

09160-10005

WASHER(10.5X20X3.2)

980 ₽/шт

7

43550-34501

Резина

3 617 ₽/шт

8

43560-34501

Резина

3 617 ₽/шт

9

09200-08002

ШТИФТ

194 ₽/шт

10

08322-01087

Шайба

81 ₽/шт

11

04111-2020A

Штифт

81 ₽/шт

12

09448-19014

Spring (RH)

13

09448-19015

VEER

14

43600-49502

14

43700-49502

15

43612-49402

Rubber

15

43610-49401

Bar, rh

16

43612-49402

Rubber

17

43631-49401

Washer

18

09200-06010

PIN

1 250 ₽/шт

19

04111-2020A

Штифт

81 ₽/шт

20

01500-1035A

Vis

21

08321-01107

Шайба, стопорная

85 ₽/шт

22

08316-1010B

Гайка

85 ₽/шт

23

43811-49500

Bracket, muffler rh

24

43821-49500

Bracket, muffler lh

25

07130-10307

Болт

2 620 ₽/шт

26

07130-1040A

Болт

2 310 ₽/шт
