Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GS1150EF F SUZUKI 9 - CRANKSHAFT

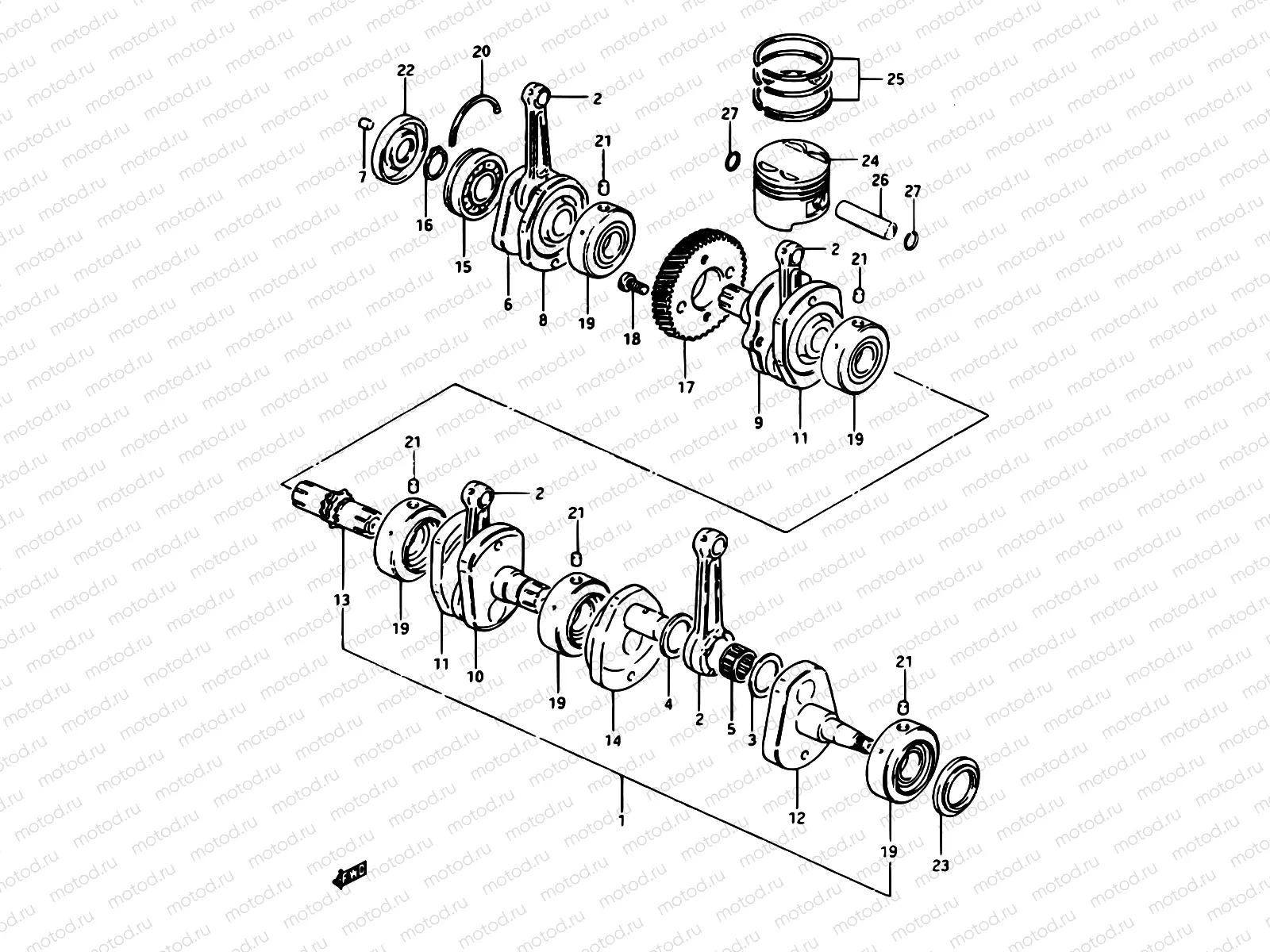

9 - CRANKSHAFT

9 - CRANKSHAFT

Например: 12200-00A08

1

12200-00A08

2

12161-00A03

Connecting rod

3

09160-31002

Шайба

4 140 ₽/шт

4

09160-31003

Rondelle

5

09263-31004

BEARING(31X39X21)

7 990 ₽/шт

6

12220-49202

.crankshaft, rh

7

04221-04089

шпонка ведомой звездочки балансира

81 ₽/шт

8

12230-49202

Web,crank r.

9

12241-49203

10

12271-49202

.crankshafrt, middle lh

11

12250-49202

12

12261-49601

Vilebrequin (LH)

13

12281-49200

.shaft, chain drive (nt:15)

14

12290-49202

Web, crank,l.

15

09262-30033

Ball bearing 30

16

08331-31309

CIRCLIP

170 ₽/шт

17

21111-00A02

18

07130-0816A

БОЛТ

113 ₽/шт

19

09264-32009

Roulement

20

09390-72004

C ring

21

04221-07129

PIN

1 060 ₽/шт

22

09283-30021

SEAL,OIL(30X72X11)

5 015 ₽/шт

23

09289-48002

SEAL,OIL(47.3X60X6.5)

2 125 ₽/шт

24

12111-00A07

ZUIGER

24

12103-00820-100

24

12103-00820-050

Piston set

25

12140-00A24

Kir segment (STD)

25

12140-00A24-100

Piston ring set (os:0.5)

25

12140-00A24-050

Piston ring set (os:0.5)

26

12151-05A00

Палец поршня

1 195 ₽/шт

27

09381-20004

КОЛЬЦО СТОПОРНОЕ

162 ₽/шт
