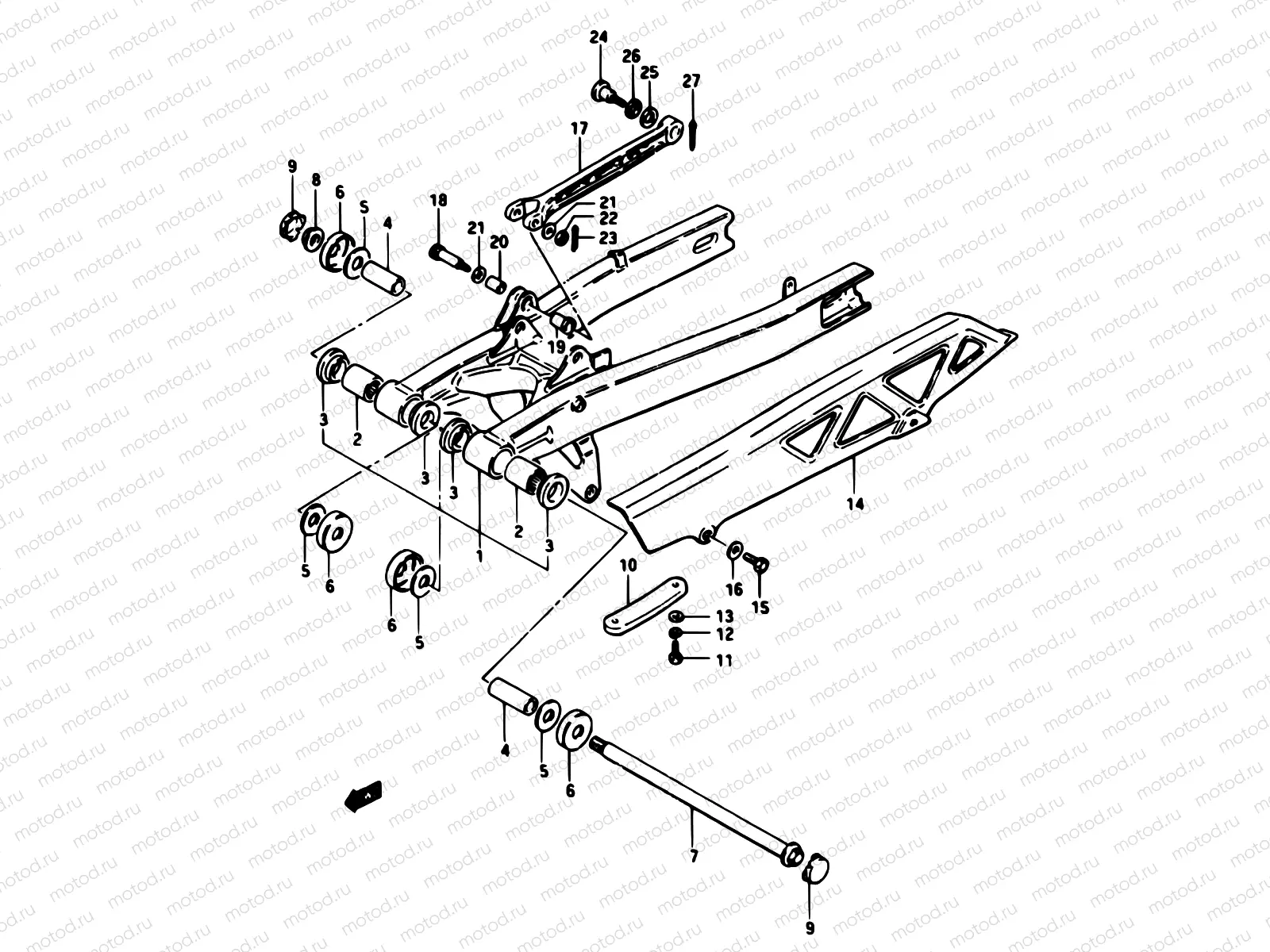

69 - REAR SWINGING ARM

69 - REAR SWINGING ARM
Например: 61000-00A00
1
61000-00A00
Swinging arm, rear
2
09263-25024
BEARING(25X33X30)
4 165 ₽/шт
3
61261-31300
Bushing
4
61251-00A00
Spacer,rr swing
5
08211-16381
WASHER
1 410 ₽/шт
6
61262-49202
Cover,rr Swingingarm Pivot
1 207 ₽/шт
7
61211-00A00
Shaft, swinging arm pivot
8
08319-3114A
Гайка
646 ₽/шт
9
61222-31301
Cap,pivot
10
61273-00A00
Buffer,chain to
11
01500-0612B
Болт
1 210 ₽/шт
12
08321-0106A
Шайба
81 ₽/шт
13
09160-06056
WASHER(6.5X18X1)
82 ₽/шт
14
61310-00A01
Chain case
15
01500-0612B
Болт
1 210 ₽/шт
16
09169-06071
Шайба
97 ₽/шт
17
64311-00A00-13L
Torque ldnk, rear
18
09101-08019
Bolt, front
19
64353-00A00
Spacer, torque link
20
64354-00A00
Spacer, torque link
21
08322-01087
Шайба
81 ₽/шт
22
08314-4008B
Гайка
113 ₽/шт
23
04111-2020A
Штифт
81 ₽/шт
24
64331-00A00
Bolt, torque link, rear
25
09320-18003
CUSHION
1 490 ₽/шт
26
09160-18014
Washer
27
04111-2020A
Штифт
81 ₽/шт
