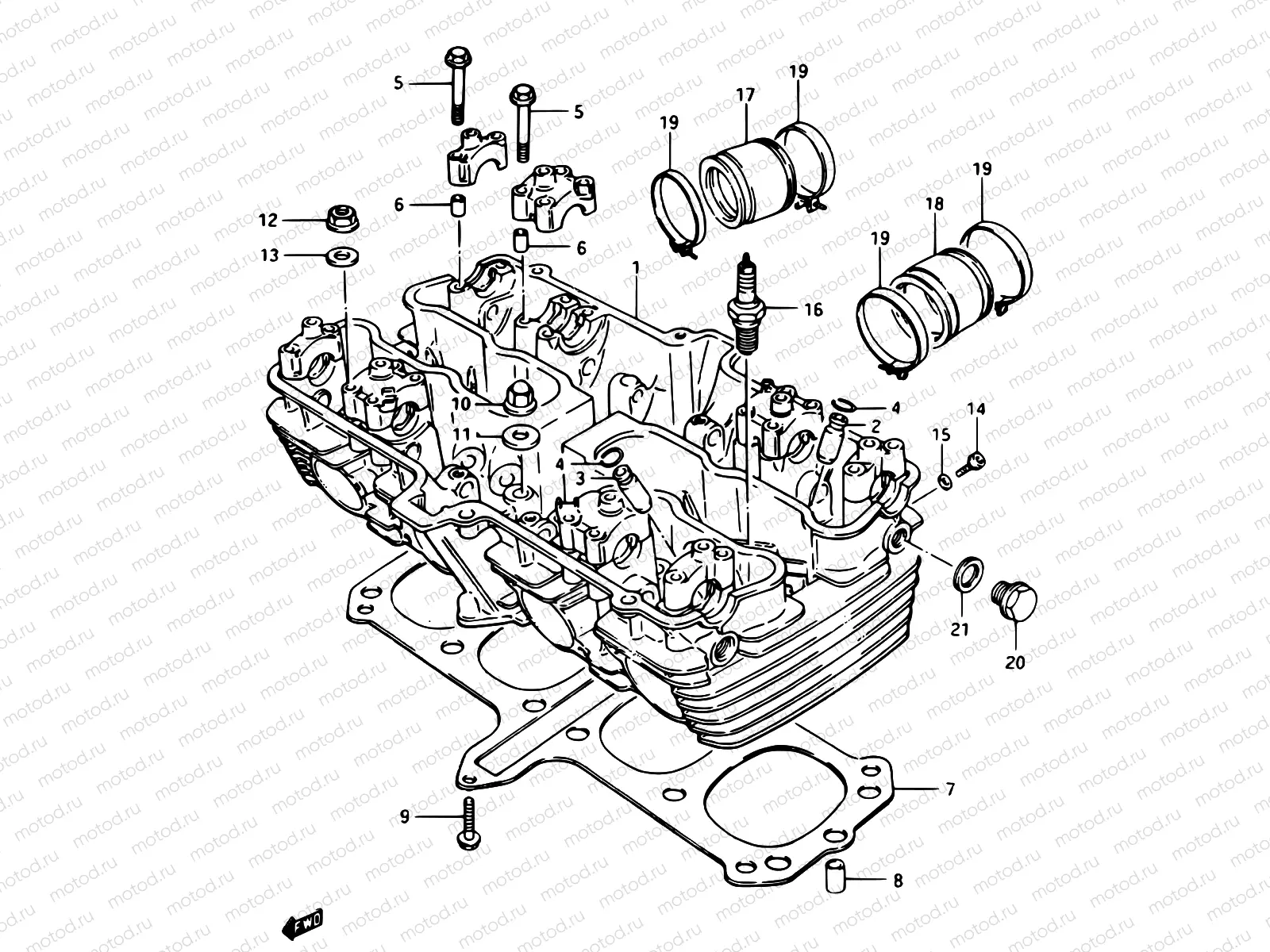

2 - CYLINDER HEAD

2 - CYLINDER HEAD
Например: 11100-00A03
1
11100-00A03
Head assy, cylinder
2
11115-49290
Направляющая впускного клапана
1 548 ₽/шт
3
11115-49290
Направляющая впускного клапана
1 548 ₽/шт
4
09381-10004
КЛИПС
113 ₽/шт
5
09103-06026
BOLT(6X39)
101 ₽/шт
6
09206-08001
Стопор
170 ₽/шт
7
11141-00A03
Прокладка цилиндра
10 322 ₽/шт
8
04211-11189
ШТИФТ
119 ₽/шт
9
01550-0630A
БОЛТ
102 ₽/шт
10
09159-10026
Гайка
3 750 ₽/шт
11
09168-10017
GASKET(10.5X22X2)
187 ₽/шт
12
08316-1010B
Гайка
85 ₽/шт
13
09160-10039
Шайба
119 ₽/шт
14
07130-05083
Vis
15
09168-05010
Прокладка
980 ₽/шт
16
09482-00185
Spark plug (nd,x27es-u)
17
13111-00A00
Pipe d’admission (RH)
18
13111-00A00
Pipe d’admission (RH)
19
09402-52306
ХОМУТ РУЛ. НАК.
1 115 ₽/шт
20
09247-14026
Пробка редуктора сливная
289 ₽/шт
21
09168-14004
Прокладка
129 ₽/шт
