Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GS1150EF F SUZUKI 24 - ELECTRICAL

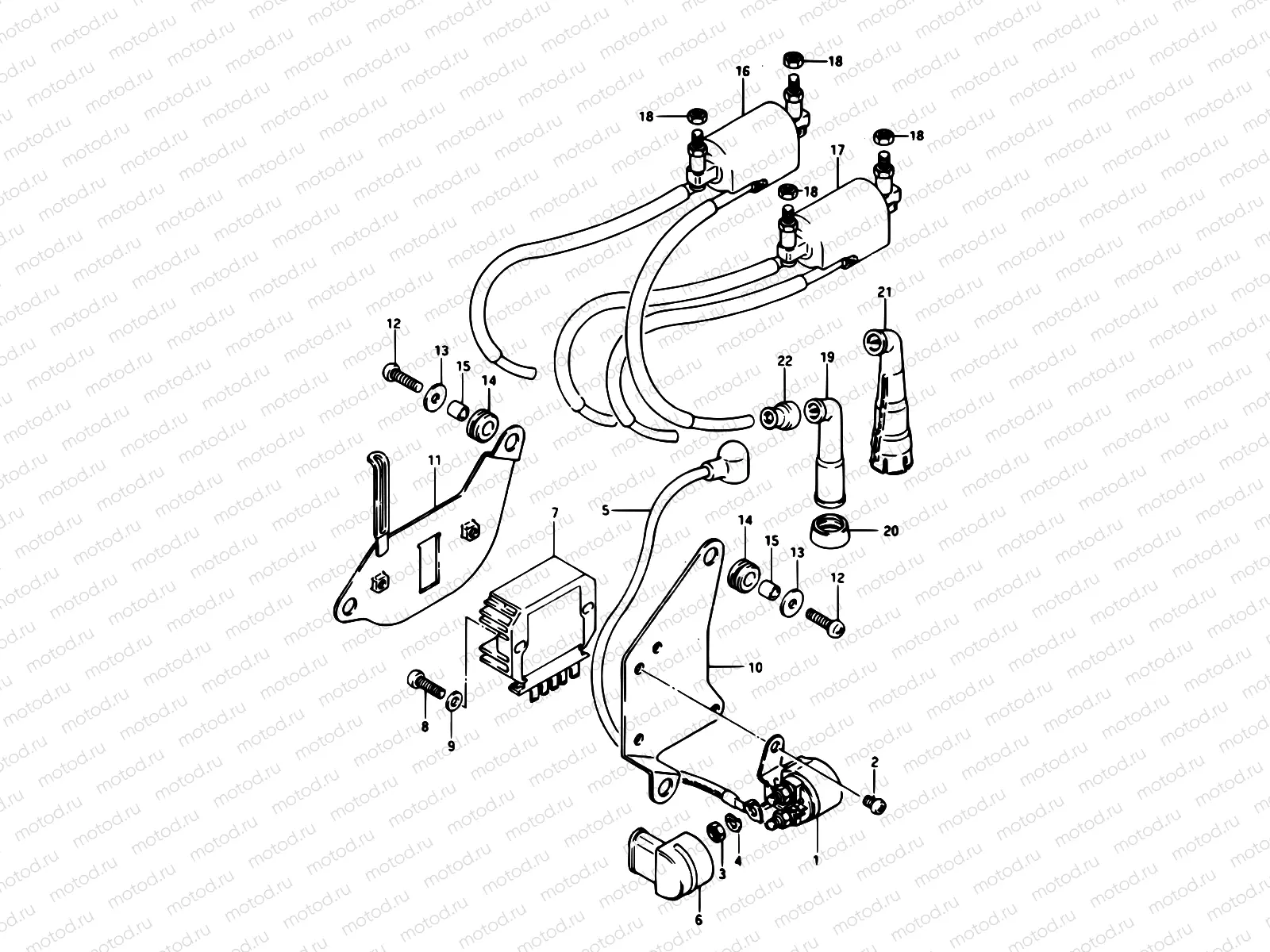

24 - ELECTRICAL

24 - ELECTRICAL

Например: 31800-49100

1

31800-49100

Реле стартера

8 245 ₽/шт

2

02112-0610B

Винт

81 ₽/шт

3

08310-0006B

Гайка

81 ₽/шт

4

08321-0106A

Шайба

81 ₽/шт

5

33850-00A01

WIRE,STARTER MOTOR LEAD

2 444 ₽/шт

6

33624-00A10

Cap, terminal

7

32800-04A01

RECTIFIER ASSY

25 806 ₽/шт

8

02112-0620A

Болт

85 ₽/шт

9

08322-0106A

Шайба

81 ₽/шт

10

47410-00A00

Plate, parts holder (r)

11

47420-00A00

Plate, parts holder (l)

12

02112-3616A

Болт

1 210 ₽/шт

12

02112-0616A

Болт

81 ₽/шт

13

09160-06084

Шайба 6.5X18X1

81 ₽/шт

14

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

15

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

16

33410-31311

COIL ASSY,IGNITION

14 195 ₽/шт

17

33410-31311

COIL ASSY,IGNITION

14 195 ₽/шт

18

08310-0006B

Гайка

81 ₽/шт

19

33510-45010

Колпачок свечи зажигания

2 988 ₽/шт

20

33541-47D00

Уплотнение

452 ₽/шт

21

33510-45411

Cap, spark plug

22

33542-38B00

Уплотнение

162 ₽/шт
