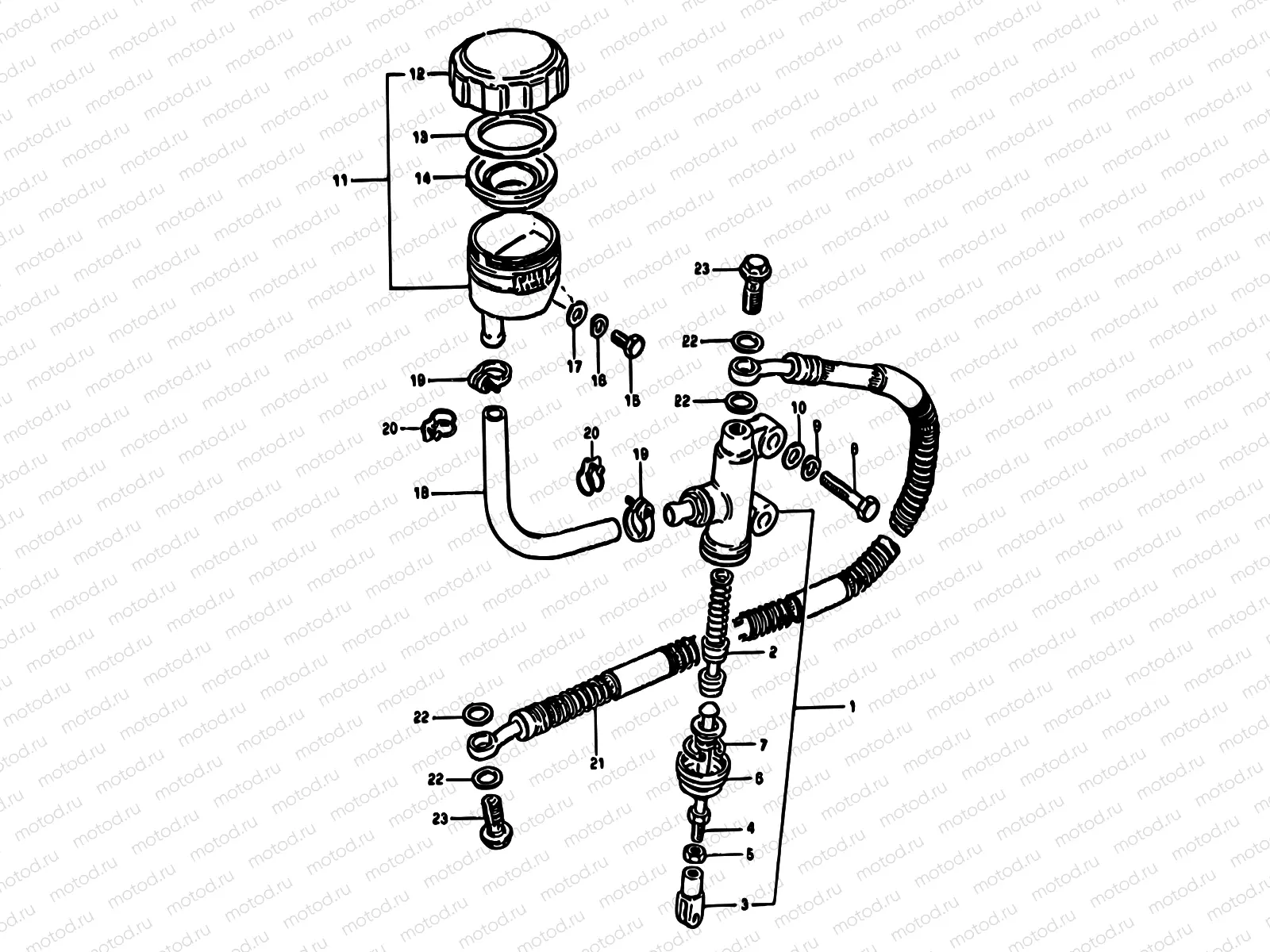

72 - REAR MASTER CYLINDER

72 - REAR MASTER CYLINDER

Например: 69600-45302

1

69600-45302

Cyl.rr.master

2

69600-45820

PISTON/CUP SET

3 871 ₽/шт

3

69692-34300

Ботинок

954 ₽/шт

4

69670-45301

.rod,push

5

08310-00087

Гайка 8MM

81 ₽/шт

5

69693-05A00

Гайка

162 ₽/шт

6

69691-45001

BOOT

481 ₽/шт

7

51162-70040

CIRCLIP

231 ₽/шт

8

01500-08307

Болт

97 ₽/шт

9

08321-01087

Пластина замка

81 ₽/шт

10

08322-01087

Шайба

81 ₽/шт

11

69740-31D00

TANK ASSY,RR RESERVOIR

7 311 ₽/шт

12

59669-07D00

CAP

1 470 ₽/шт

13

59668-18441

PLATE,DIAPHRAGM

274 ₽/шт

14

59667-18441

DIAPHRAGM

662 ₽/шт

15

01550-0616B

БОЛТ

81 ₽/шт

16

08321-01067

Шайба, стопорная

81 ₽/шт

17

08322-0106A

Шайба

81 ₽/шт

18

69731-47700

Hose

19

69735-34200

Clamp

20

09400-16304

КОЛЬЦО

2 460 ₽/шт

21

69480-47701

Hose,rear brake

22

09161-10009

Шайба

113 ₽/шт

23

09360-10061

Болт соединяющий

3 910 ₽/шт
