Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 550 SUZUKI GS550M X SUZUKI 69 - REAR FENDER

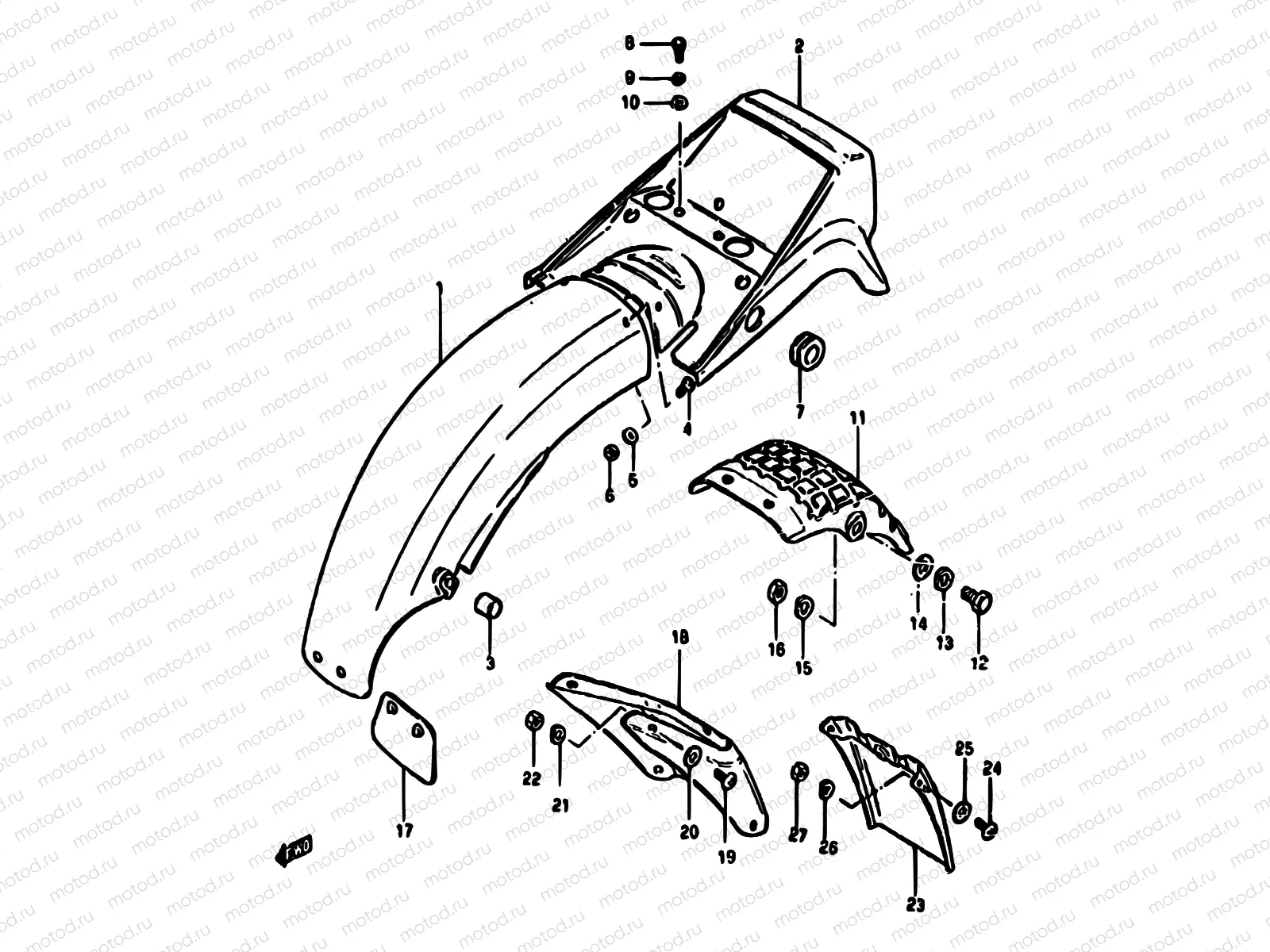

69 - REAR FENDER

69 - REAR FENDER

Например: 63112-47700

1

63112-47700

Body,rear fender front

2

63113-34300

Body,rear fender rear

3

09329-05009

Cushion

646 ₽/шт

4

02142-0512A

Болт

85 ₽/шт

5

09160-05043

Шайба

102 ₽/шт

6

08310-00057

Гайка

81 ₽/шт

7

45522-49200

GROMMET,SEAT LOCK HOLE

571 ₽/шт

8

01500-06207

Болт

81 ₽/шт

9

08321-01067

Шайба, стопорная

81 ₽/шт

10

09160-06084

Шайба 6.5X18X1

81 ₽/шт

11

63120-34301

Reinforcement

12

01500-08257

Болт

102 ₽/шт

13

08321-01087

Пластина замка

81 ₽/шт

14

08322-01087

Шайба

81 ₽/шт

15

08321-01087

Пластина замка

81 ₽/шт

16

08310-00087

Гайка 8MM

81 ₽/шт

17

63411-31900

Mud guard,rr fe

18

63311-34300

Extension,rear fender

19

02142-06127

Винт 6X12

81 ₽/шт

20

09160-06109

Шайба

85 ₽/шт

21

08321-01067

Шайба, стопорная

81 ₽/шт

22

08310-00067

Гайка

81 ₽/шт

23

63411-34301

Mudguard,extension

24

02142-06127

Винт 6X12

81 ₽/шт

25

09160-06109

Шайба

85 ₽/шт

26

08321-01067

Шайба, стопорная

81 ₽/шт

27

08310-00067

Гайка

81 ₽/шт
