Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI GS 550 SUZUKI GS550M X SUZUKI 17 - TRANSMISSION

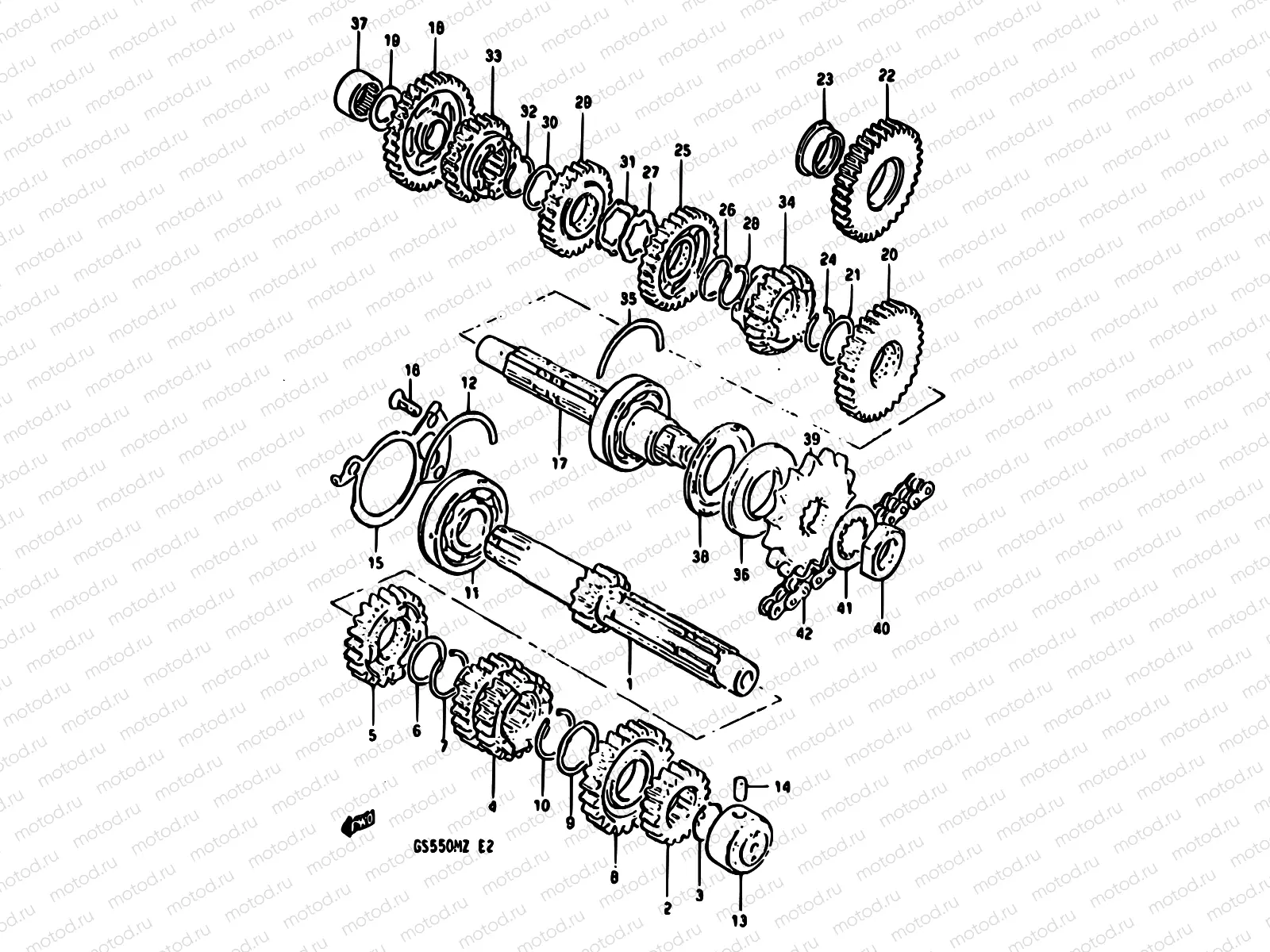

17 - TRANSMISSION

17 - TRANSMISSION

Например: 24121-47001

1

24121-47001

Countershaft (nt:12)

2

24221-47000

Gear,2nd drive (nt:18)

3

09380-25006

Seeger

4

24231-47000

Gear,3/4 drive (nt:21/23)

5

24250-47000

Gear,5th drive (nt:22)

6

09181-25167

Шайба

194 ₽/шт

7

09380-25010

КЛИПС

210 ₽/шт

8

24261-47000

Gear,6th drive (nt:23)

9

09167-25012

Шайба

1 840 ₽/шт

10

09380-25010

КЛИПС

210 ₽/шт

11

09262-25105

Подшипник

5 653 ₽/шт

12

09390-62012

C RING

4 460 ₽/шт

13

09263-20030

14

04221-07129

PIN

1 060 ₽/шт

15

24741-44000

Holder,bearing

16

02122-0616B

Болт

85 ₽/шт

17

24100-44811

Driveshaft

18

24310-47000

Gear,1st driven (nt:32)

19

08211-20341

WASHER

1 410 ₽/шт

20

24320-44002

Gear,2nd driven (nt:32)

21

08211-25321

GR Тяга 4-ая W

1 840 ₽/шт

22

24321-20F01

GEAR,2ND DRIVEN.NT:32)

7 155 ₽/шт

23

24322-19F00

Втулка

1 193 ₽/шт

24

09380-25010

КЛИПС

210 ₽/шт

25

24330-47000

Gear,3rd driven (nt:29)

26

09167-25012

Шайба

1 840 ₽/шт

27

09167-25013

Шайба

1 640 ₽/шт

28

09380-25010

КЛИПС

210 ₽/шт

29

24340-47000

Gear,4th driven (nt:27)

30

09167-25012

Шайба

1 840 ₽/шт

31

09169-25001

Шайба

1 370 ₽/шт

32

09380-25010

КЛИПС

210 ₽/шт

33

24351-47001

Gear,5th driven (nt:23)

34

24361-47001

Gear,6th driven

35

09390-62012

C RING

4 460 ₽/шт

36

09283-32015

SEAL,OIL(32X62X7)

1 486 ₽/шт

37

09263-20027

Подшипник

3 108 ₽/шт

38

09282-32002

Сальник

1 114 ₽/шт

39

27511-47B00

SPROCKET,ENGINE(15T)

3 949 ₽/шт

40

09140-20009

Звездочка

4 300 ₽/шт

41

09167-25019

Шайба

194 ₽/шт

42

27620-24F20

Joint set

1 190 ₽/шт
