Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI DR 250 SUZUKI DR250S G SUZUKI 66 - REAR WHEEL (E02,E04,E06,E15,E18,E21,E22,E25,E39)

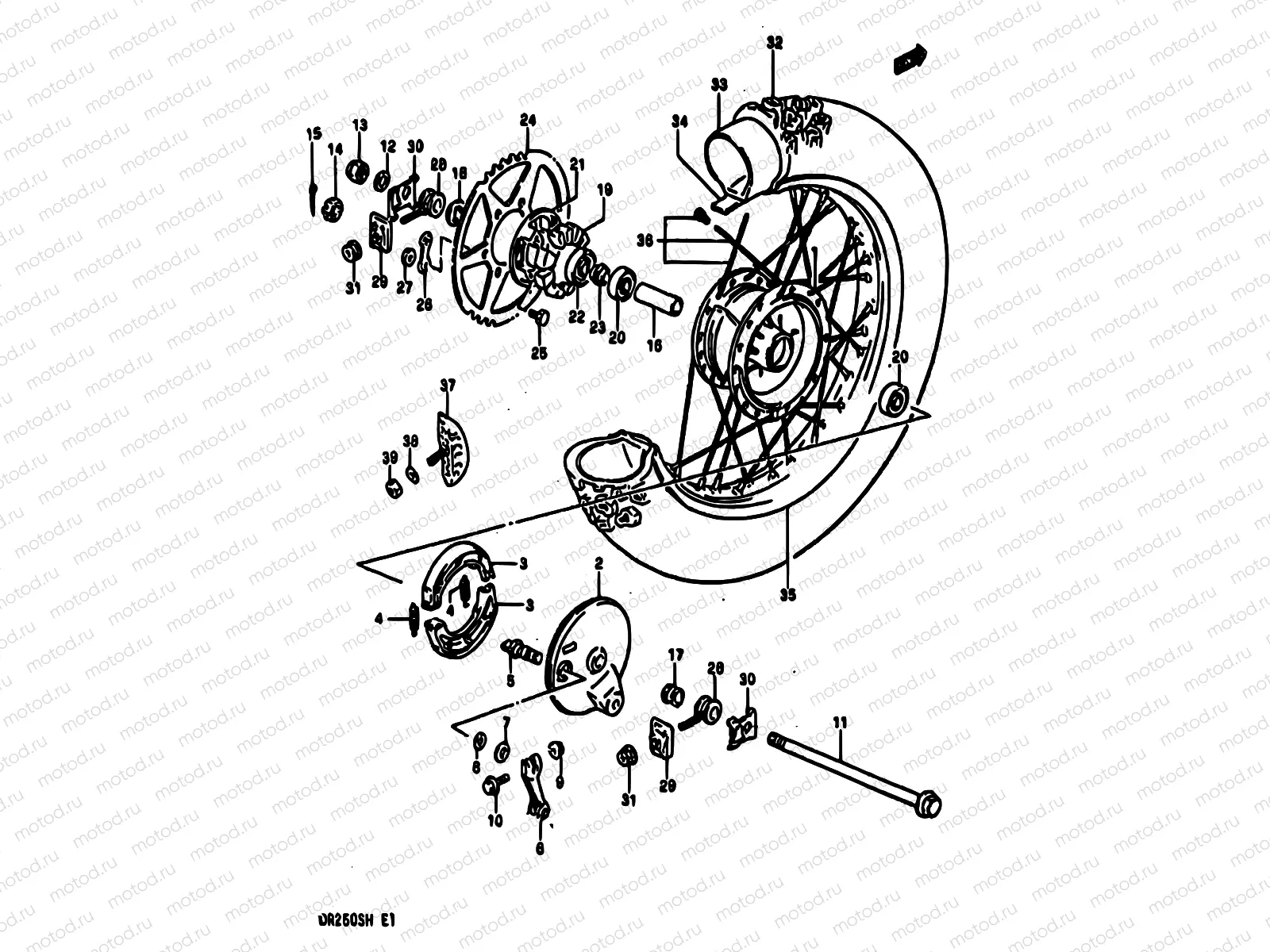

66 - REAR WHEEL (E02,E04,E06,E15,E18,E21,E22,E25,E39)

66 - REAR WHEEL (E02,E04,E06,E15,E18,E21,E22,E25,E39)

Например: 64110-38200

1

64110-38200

Drum,rear hub

2

64210-38200

Panel,rear hub

3

54410-07040-XNA

Shoe,brake

4

09443-07001

SPRING(L:34)

170 ₽/шт

5

54441-29305

CAM,BRAKE

1 036 ₽/шт

6

64451-29900

Lever,brake cam

7

09160-14055

Шайба

1 450 ₽/шт

8

09280-14011

КОЛЬЦО УПЛОТНИТЕЛЬНОЕ ПОМПЫ МАСЛЯНОЙ, РЕЗИНА !

226 ₽/шт

9

08319-31067

Гайка

153 ₽/шт

10

01550-06357

БОЛТ

102 ₽/шт

11

64711-09B00

12

08322-01167

Шайба

85 ₽/шт

13

09159-16002

Гайка

2 310 ₽/шт

16

64731-40600

Spacer,hub bearing

17

64741-38200

Spacer,axle rh

18

64750-38201

Spacer,axle lh

19

64651-38201

Damper - rear wheel hub

20

08143-62037

BEARING

1 122 ₽/шт

21

64611-38200

Drum,sprocket mounting

22

08123-6204B

earing,rear Wheel Hub

1 308 ₽/шт

23

64733-38200

Holder,sprocket

24

64511-38200

Sprocket,rr nt

25

09119-08078

Vis (8x36)

26

09169-08011

Шайба

187 ₽/шт

27

08310-00087

Гайка 8MM

81 ₽/шт

28

61410-38200

Adjuster,chain

29

61421-38200

PLATE,CHAIN ADJUSTER

629 ₽/шт

30

64712-38200

WASHER,CHAIN ADJUSTER GUIDE

203 ₽/шт

31

08319-31087

Гайка

178 ₽/шт

32

65100-32470

Tire,rear (4.00x18) irc

32

65100-32490

Tire,rear (4.00x18) bs

33

65200-49015

INNER TUBE 400X18

34

55261-26F10

PROTECTOR,INNER TUBE

486 ₽/шт

35

65311-38260

Rim,wheel (215x10al) (gold)

36

65320-38210

Spoke assy,rear

37

65270-43D00

STOPPER,BEAD(1.85)

2 665 ₽/шт

38

08322-01087

Шайба

81 ₽/шт

39

08310-00087

Гайка 8MM

81 ₽/шт
