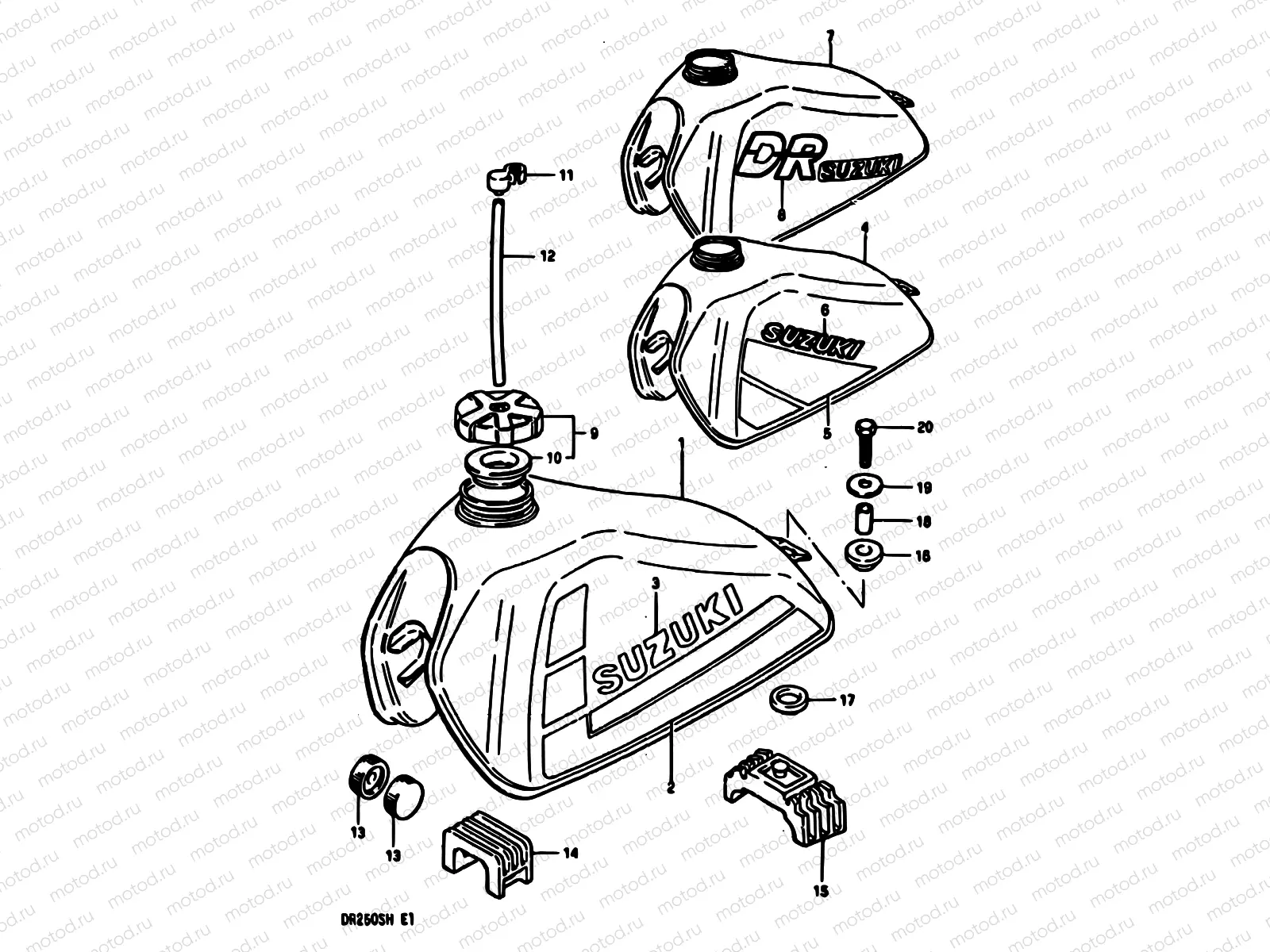

40 - FUEL TANK (MODEL F/G/H E04,E15,E18,E21,E22,E25,E39)

40 - FUEL TANK (MODEL F/G/H E04,E15,E18,E21,E22,E25,E39)

Например: 44110-382V0-13L

1

44110-382V0-13L

Tank, fuel prim

4

49100-38920-21C

Tank assy,fuel (black)

4

44110-382V0-13L

Tank, fuel prim

4

49100-38920-14C

Tank assy,fuel (red)

4

44110-38212-YD8

4

49100-38920-163

Tank assy,fuel (yellow)

4

49100-38940-19F

Tank assy,fuel (blue)

4

49100-38940-163

Tank assy,fuel (yellow)

4

49100-38940-10V

Tank assy,fuel (white)

4

49100-38940-14C

Tank assy,fuel (red)

5

68110-38910-7CL

.tape set,fuel tank

5

68110-38910-8AH

.tape set,fuel tank

6

68111-32410-019

.emblem (black)

6

68111-32410-064

.emblem (white)

7

44110-382V0-13L

Tank, fuel prim

9

44200-05812

Fuel cap

10

44248-05211

Gasket

537 ₽/шт

11

44486-32101

Хомут

187 ₽/шт

12

09352-50005-600

ШЛАНГ

436 ₽/шт

13

09329-10016

САЙЛЕНТБЛОК

221 ₽/шт

14

44541-38200

CUSHION,TANK UPR FR

457 ₽/шт

15

44542-38200

Damper (rear)

16

09320-12013

САЙЛЕНТБЛОК

211 ₽/шт

17

09320-12017

САЙЛЕНТБЛОК

179 ₽/шт

18

09180-08067

Кольцо/шайба

1 560 ₽/шт

19

09160-08135

Шайба

113 ₽/шт

20

01500-08307

Болт

97 ₽/шт
