Главная Каталог товаров SUZUKI EPC 125 cm³ - 349 cm³ SUZUKI DR 250 SUZUKI DR250S G SUZUKI 61 - REAR SWINGING ARM (E02,E04,E06,E15,E18,E21,E22,E25,E39)

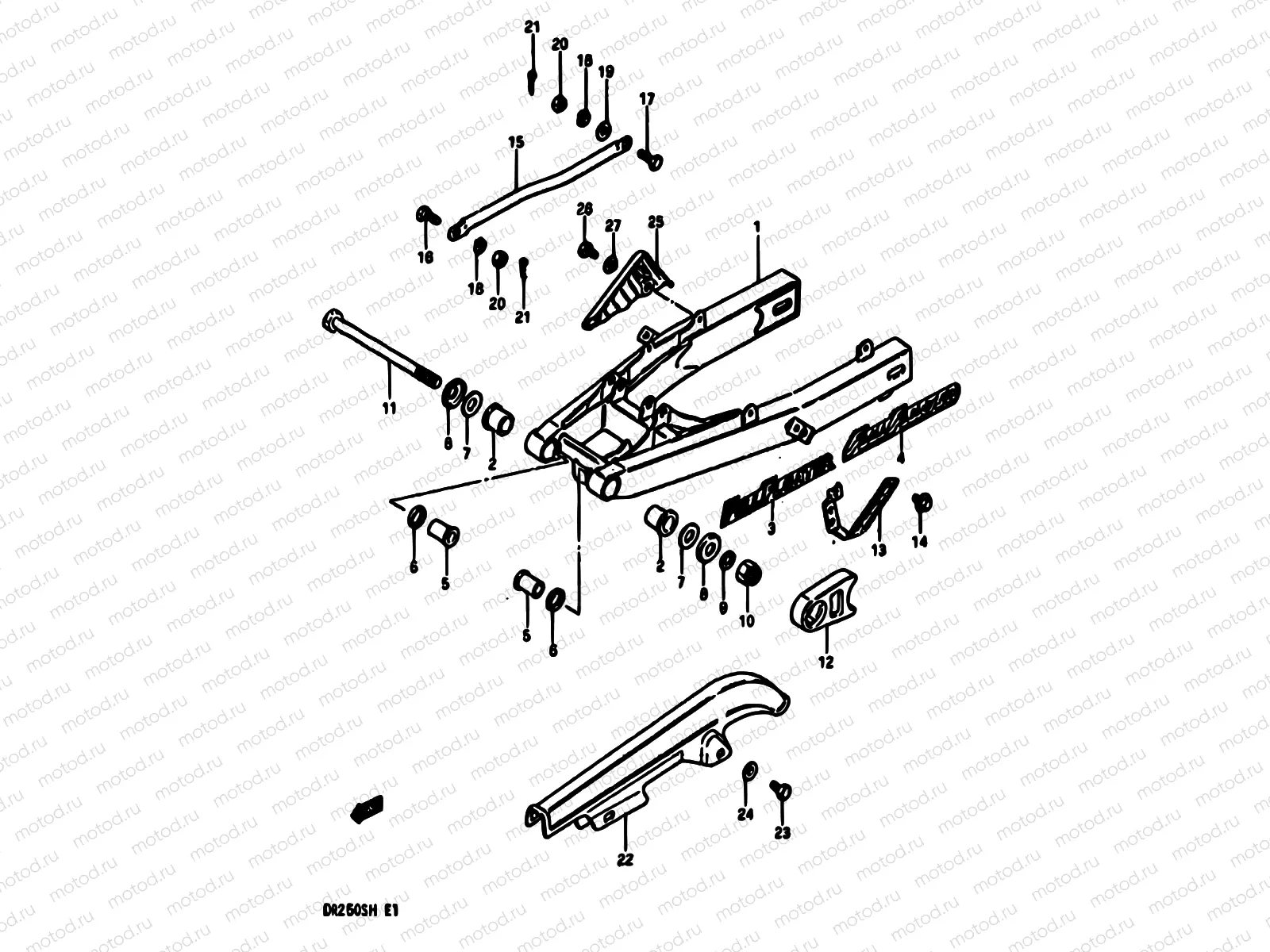

61 - REAR SWINGING ARM (E02,E04,E06,E15,E18,E21,E22,E25,E39)

61 - REAR SWINGING ARM (E02,E04,E06,E15,E18,E21,E22,E25,E39)

Например: 61000-38910-13L

1

61000-38910-13L

Swinging arm,rear (silver)

2

61261-38200

Bush,rr swingin

4

68381-34A10-97J

.emblem

5

61251-13F00

SPACER,RR SWGARM PIVOT OUTER

1 869 ₽/шт

6

09286-20001

SEAL,OIL(20X27X5)

179 ₽/шт

7

08211-15341

Шайба - опора

1 720 ₽/шт

8

61262-22A01

Cover

1 037 ₽/шт

9

08322-0114B

Шайба

1 370 ₽/шт

10

08319-2114A

Гайка

2 390 ₽/шт

11

64711-26B0V

AXLE,RR

4 614 ₽/шт

12

61273-38200

Buffer,chain defense

13

61341-30501

Guide,chain

14

01550-0812B

Болт

97 ₽/шт

15

64311-31001-13L

Torque link,rear (silver)

16

09111-08012

BOLT(8X22.5)

1 880 ₽/шт

17

09111-08013

BOLT(8X26.5)

178 ₽/шт

18

08321-01087

Пластина замка

81 ₽/шт

19

08322-01087

Шайба

81 ₽/шт

20

09140-08008

ШАЙБА

97 ₽/шт

21

04111-2020A

Штифт

81 ₽/шт

22

61311-38203

KETTING SCHERM

23

09100-06157

BOLT(6X8)

102 ₽/шт

24

09169-06026

Пластина замка

119 ₽/шт

25

61391-38200

Guard

26

09100-06157

BOLT(6X8)

102 ₽/шт

27

09169-06026

Пластина замка

119 ₽/шт
