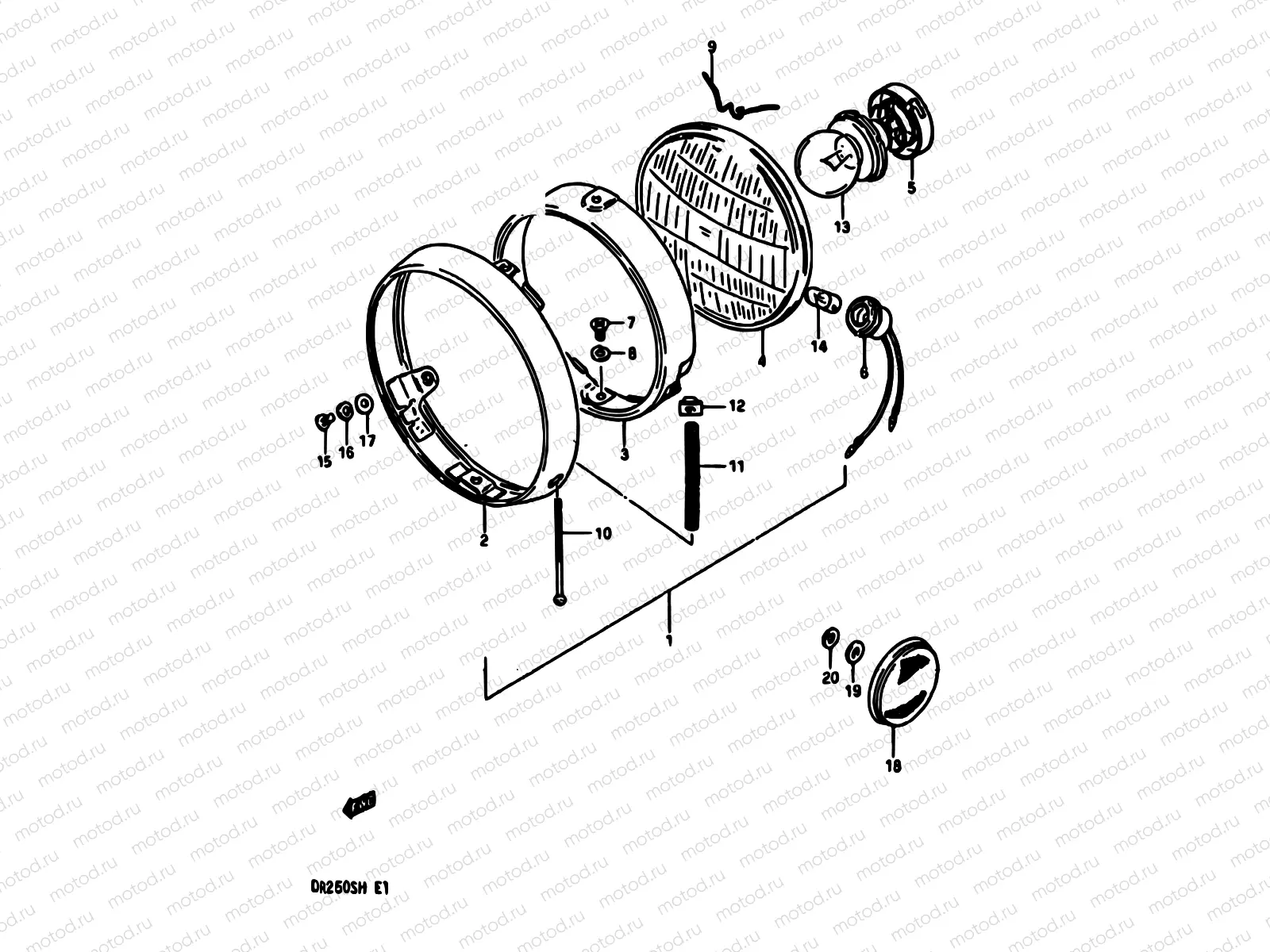

24 - HEADLAMP (E04,E15,E18,E21,E22,E25,E39)

24 - HEADLAMP (E04,E15,E18,E21,E22,E25,E39)

Например: 35100-38240-999

1

35100-38240-999

Headlamp assy

1

35100-38250-999

Headlamp assy

2

35111-37130

.rim

3

35127-29610

.retaining ring

4

35121-44260

Unit,head lamp

5

35136-34670

Setter,head lam

6

36118-30500

Socket,parking

7

35136-29610

SCREW,HEAD LAMP UNIT

8

08321-0105A

Пластина замка

81 ₽/шт

9

35128-46720

Spring

10

35151-31610

Vis

11

35154-33630

Spring

12

35152-15611

Гайка

231 ₽/шт

13

09471-12049

Bulb (12v,45/40w)

14

09471-12063-LCP

Bulb 6v/1,7w

15

02112-0412A

Болт

85 ₽/шт

16

08321-0104A

Пластина замка

82 ₽/шт

17

08322-0104B

Шайба

81 ₽/шт

18

35950-30910

REFLEX REFLECTOR,FR

1 052 ₽/шт

18

35950-14A00

REFLECTOR,REFLEX FR

2 295 ₽/шт

19

08321-0105A

Пластина замка

81 ₽/шт

20

08322-0105B

Шайба

81 ₽/шт
