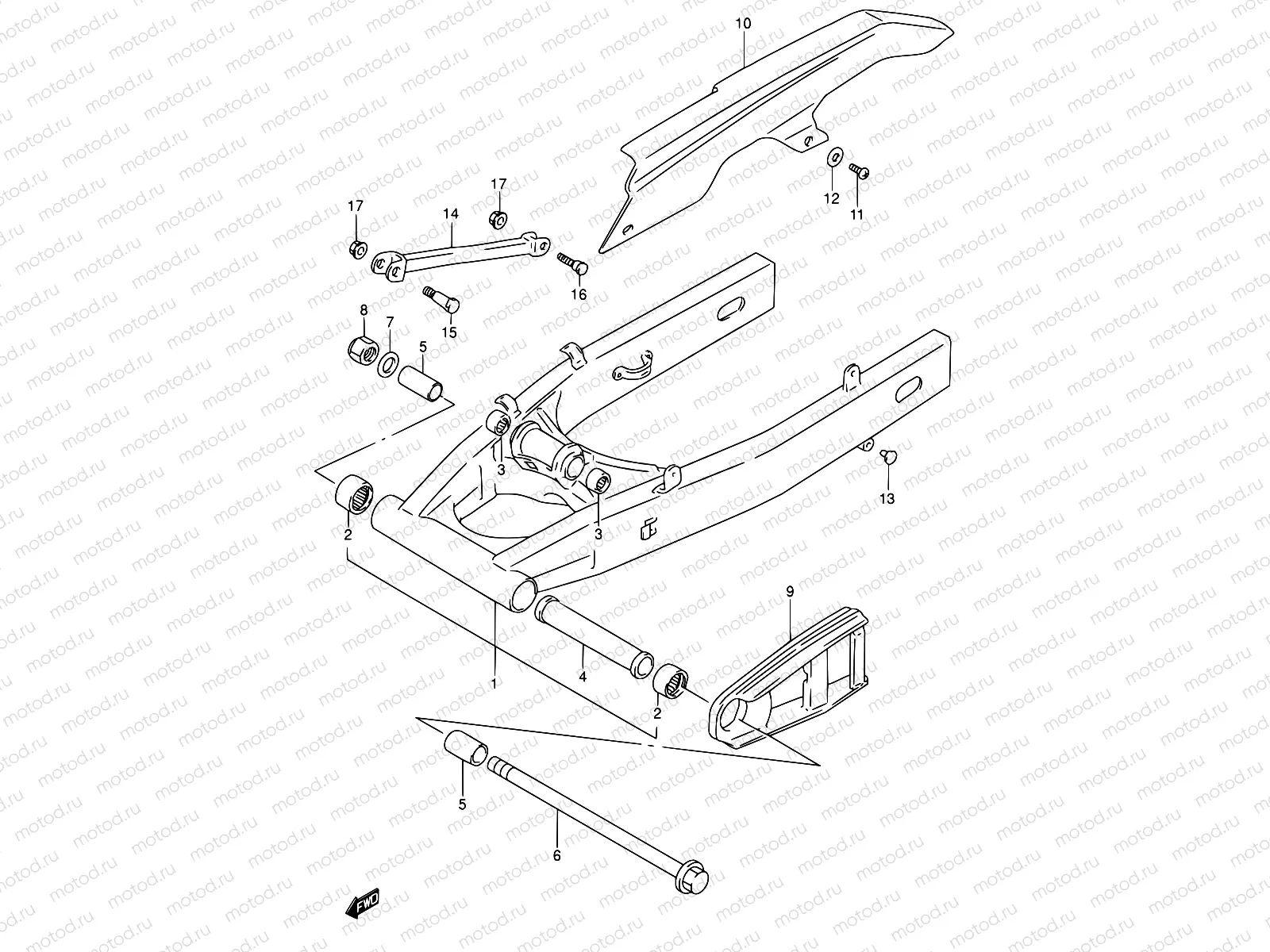

57A - REAR SWINGING ARM (MODEL T/V)

57A - REAR SWINGING ARM (MODEL T/V)

Например: 61000-26E02-0FP

1

61000-26E02-0FP

Swingingarm,rr.

2

09263-25073

BEARING(25X33X35)

2 100 ₽/шт

3

09263-17053

Подшипник

1 147 ₽/шт

4

09180-20108

SPACER(20.8X27.2X146)

1 474 ₽/шт

5

61251-21E00

SPACER,RR SWGARM PIVOT

1 071 ₽/шт

6

61211-21E00

Shaft, pivot

7

09160-18030

Шайба

115 ₽/шт

8

09159-18007

Гайка

10 240 ₽/шт

9

61273-21E02

Guard chain sliding shoe

10

61310-45D12

Case, chain

11

02142-0612B

Винт

81 ₽/шт

12

09169-06026

Пластина замка

119 ₽/шт

13

09250-08016

CAP(OD:12)

1 410 ₽/шт

14

64310-10D00-019

TORQUELINK,RR

3 675 ₽/шт

15

09111-10051

BOLT(10X39)

4 380 ₽/шт

16

09100-10187

BOLT(10X34)

2 270 ₽/шт

17

08319-31107

Гайка

210 ₽/шт
