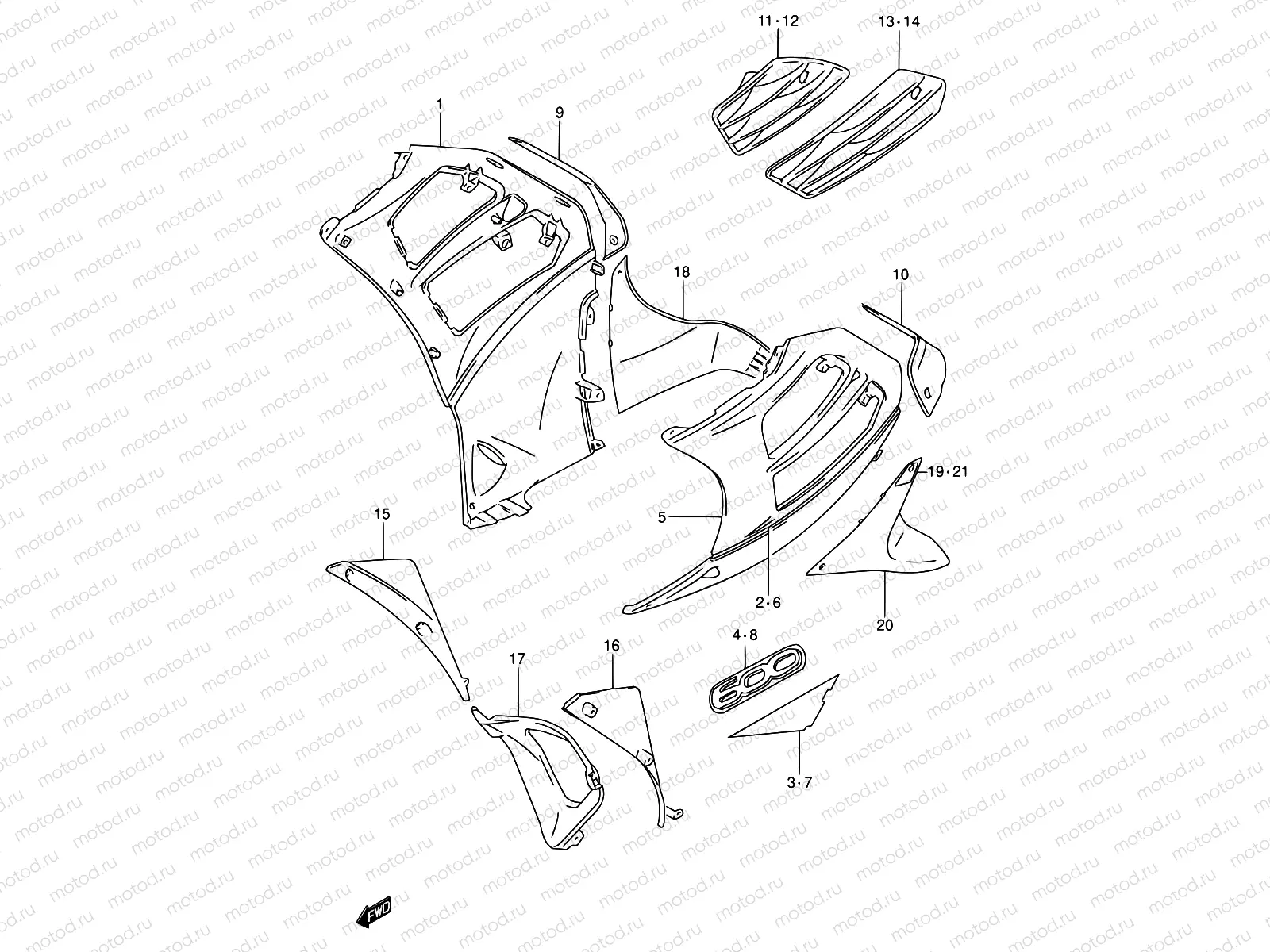

47B - UNDER COWLING BODY (MODEL T)

47B - UNDER COWLING BODY (MODEL T)
Например: 94407-21E40-163
1
94407-21E40-163
Cowling assy, under rh (yellow)
1
94407-21E40-28V
Cowling assy,un
2
68185-21E00-019
Tape,und.cwl,r
3
68185-21E10-019
Tape,cowling rh
4
68181-21E30-E8G
mblem,cowling
4
68181-21E30-D3N
mblem,cowling
5
94408-21E40-163
Cowling assy,un
5
94408-21E40-28V
Cowling assy,un
6
68195-21E00-019
Tape,und.cwl,l.
7
68195-21E10-019
Tape,cowling lh
8
68181-21E30-E8G
mblem,cowling
8
68181-21E30-D3N
mblem,cowling
9
94420-21E00
Panel,under ,r.
10
94426-21E00
Panel,under,l
11
94430-31E00-163
Cover,und.cwl.r
11
94430-21E00-28V
Cover,und.cwl.r
12
94440-31E00-163
COVER,UNDER UPR,L
11 144 ₽/шт
12
94440-21E00-28V
Cover,und.cwl.l
13
94670-21E01-163
BEKLEDING ONDER-ONDER R
13
94670-21E01-28V
Cover,cwl.lwr,r
14
94681-21E01-163
COVER,UNDER COWL LWR,L
12 786 ₽/шт
14
94681-21E01-28V
Cover,und.cwl,l
15
94461-21E00-019
Cowling,inner,r
16
94462-21E00-019
COWLING,UNDER INNER,L
3 089 ₽/шт
17
94498-21E00-019
Cowling,under,c
18
94660-21E10-019
Cowling comp,un
18
94660-21E10-1PX
Cowling, rear rh (black)
19
68685-21E00-163
.tape, under rh (yellow)
19
68685-21E00-28V
.tape, under rh (red)
20
94690-21E10-019
Cowling comp,un
20
94690-21E10-1PX
Cowling comp,un
21
68695-21E00-163
.tape, under lh (yellow)
21
68695-21E00-28V
.tape, under lh (red)
