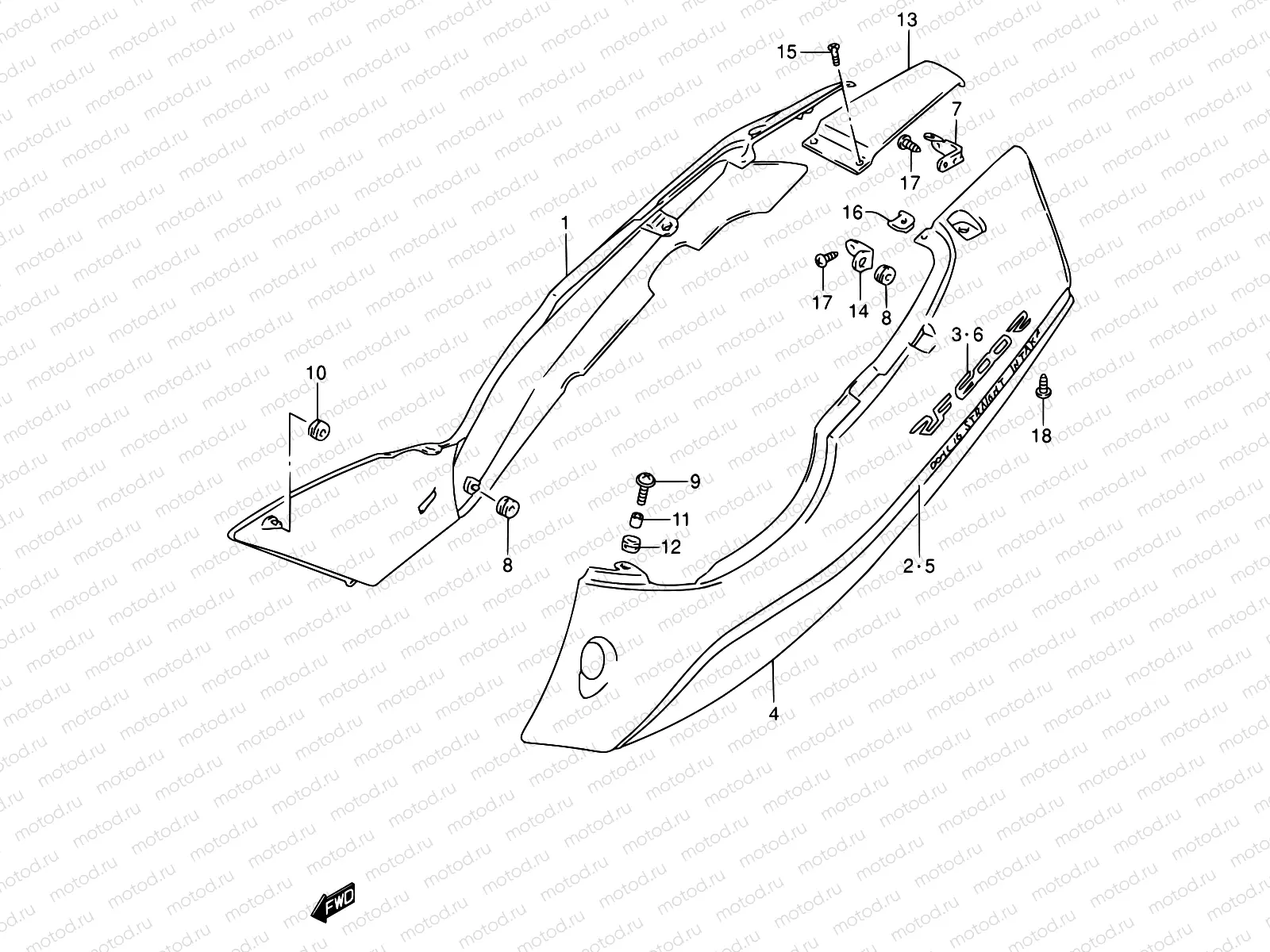

40 - FRAME COVER (MODEL P/R/S/T)

40 - FRAME COVER (MODEL P/R/S/T)
Например: 47100-21E00-163
1
47100-21E00-163
Cover,frame,r.
1
47100-21E00-3AX
Cover assy, frame rh (red)
2
68130-21E00-B7G
.tape set, rh
2
68130-21E00-C6A
.tape set, rh
2
68130-21E00-B7H
.tape set, rh
2
68130-21E00-D3M
.tape set, rh
2
68130-21E00-D3L
Tape,fr.cover
2
68130-21E00-E8C
Tape set,frame
3
68131-21E00-B8S
mblem
3
68131-21E00-C6B
.emblem
3
68131-21E00-B8T
.emblem
3
68131-21E00-D3R
mblem
3
68131-21E00-E8D
mblem
3
68131-21E00-A02
mblem
3
68131-21E00-E8E
.emblem
4
47200-21E00-163
Cover,frame,l.
4
47200-21E00-3AX
Cover,frame,l.
5
68140-21E00-B7G
.tape set, lh
5
68140-21E00-C6A
Tape,fr.cover l
5
68140-21E00-B7H
.tape set, lh
5
68140-21E00-D3M
.tape set, lh
5
68140-21E00-D3L
Tape set,frame
5
68140-21E00-E8C
.tape set, lh
6
68131-21E00-B8S
mblem
6
68131-21E00-C6B
.emblem
6
68131-21E00-B8T
.emblem
6
68131-21E00-D3R
mblem
6
68131-21E00-E8D
mblem
6
68131-21E00-A02
mblem
6
68131-21E00-E8E
.emblem
7
47191-21E00
Bracket,frmc.,r
7
47192-21E00
Bracket,frmc.,l
8
09320-08527
Cushion
1 640 ₽/шт
9
09116-06131
BOLT(6X25)
1 210 ₽/шт
10
47161-21E01
Damper
11
09180-06265
Кольцо/шайба
211 ₽/шт
12
09320-08525
Cushion
3 210 ₽/шт
13
47311-21E00-28V
Cover,frm cntr.
13
47311-21E00-163
Cover,frame ctr
14
47193-21E00
Bracket,rr lamp
15
02142-0512A
Болт
85 ₽/шт
16
09148-05013
Гайка
97 ₽/шт
17
03541-1412A
Болт
1 210 ₽/шт
18
02142-0512A
Болт
85 ₽/шт
