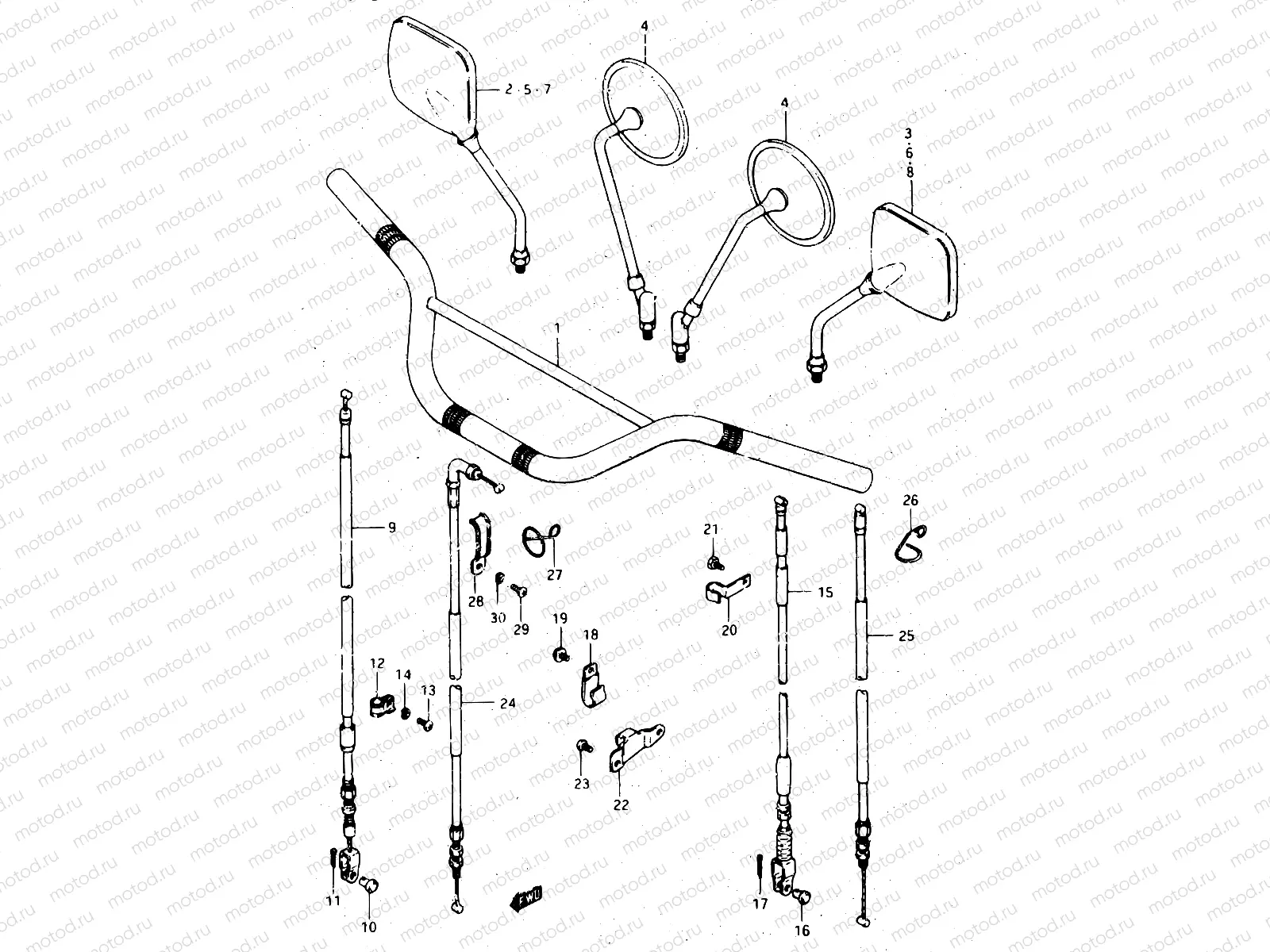

56 - HANDLEBAR (MODEL E)

56 - HANDLEBAR (MODEL E)
Например: 56110-37410-291
1
56110-37410-291
Handlebar (BLACK)
2
56500-01A00
Mirror, rear view rh
3
56600-01A00
Mirror, rear view lh
4
56500-080A0
Mirror assy, rear view
5
56500-01A11
MIRROR ASSY,RR VIEW,R
6 764 ₽/шт
6
56600-01A11
MIRROR ASSY,RR VIEW,L
6 764 ₽/шт
7
56500-13A11
MIRROR ASSY,RR VIEW,R
21 896 ₽/шт
8
56600-13A11
MIRROR ASSY,RR VIEW,L
21 896 ₽/шт
9
58100-37200
Cable assy,fr b
10
09200-05001
ШТИФТ
129 ₽/шт
11
04111-2015A
Штифт
81 ₽/шт
12
58621-40401
Clamp, brake cable
13
02112-0610B
Винт
81 ₽/шт
14
08321-01067
Шайба, стопорная
81 ₽/шт
15
58200-37401
Câble d'embrayage
16
09200-06011
Pin
17
04111-2015A
Штифт
81 ₽/шт
18
09404-08420
Струбцина L:137
221 ₽/шт
19
02142-0610B
Винт держатель
85 ₽/шт
20
09404-06037
Clamp
1 210 ₽/шт
21
01500-0610B
Болт
85 ₽/шт
22
58634-37400
Stopper, clutch cable
23
02112-3612A
Болт
1 250 ₽/шт
24
58300-37451
Câble de gaz
25
58900-37400
Cable assy,deco
26
58621-17200
GUIDE
196 ₽/шт
27
58621-37400
Guide, cable
28
09403-07309
Clamp
29
02112-0610B
Винт
81 ₽/шт
30
08321-01067
Шайба, стопорная
81 ₽/шт
