Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 500 SUZUKI DR500S E SUZUKI 4 - CRANKCASE COVER

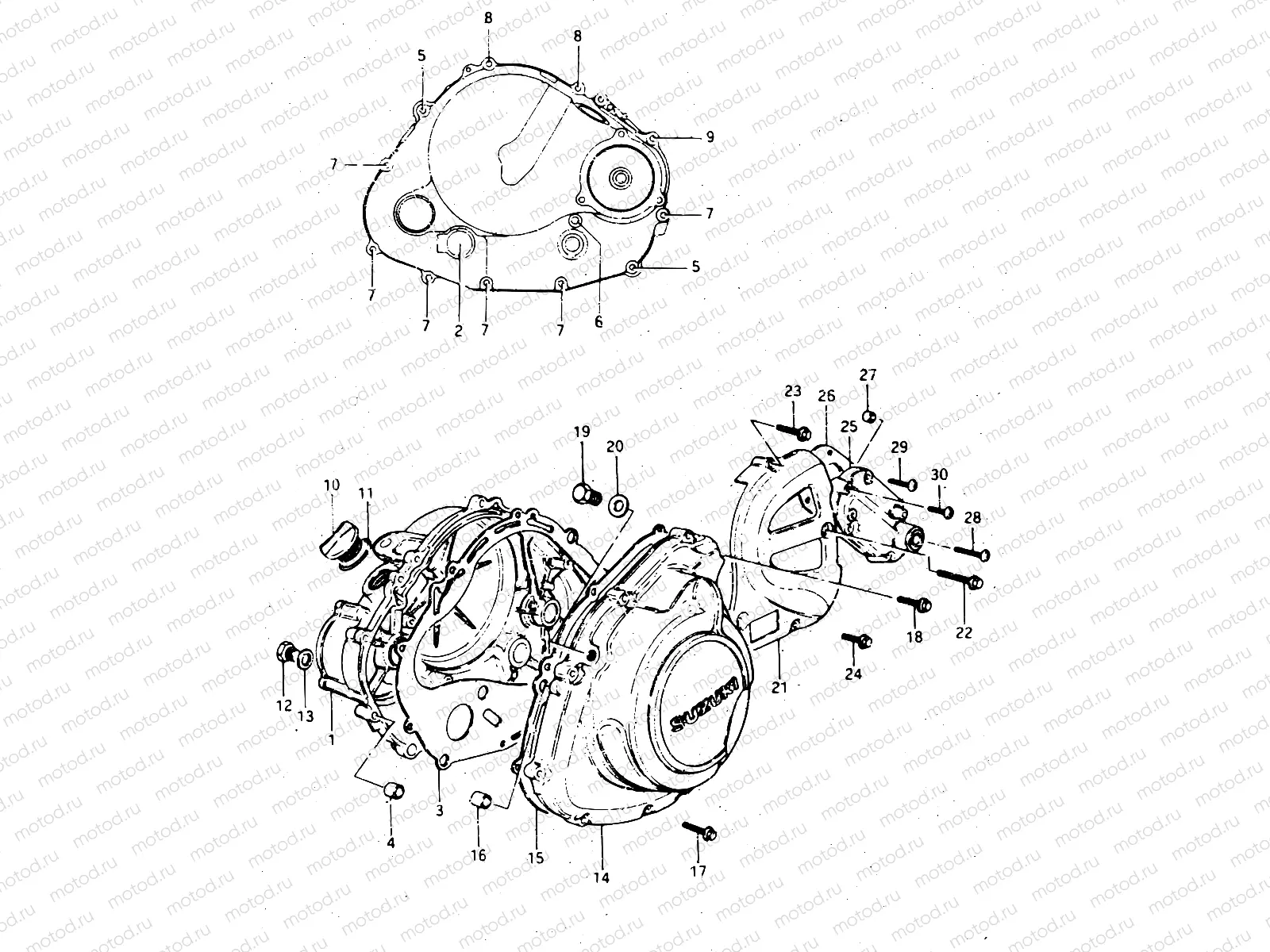

4 - CRANKCASE COVER

4 - CRANKCASE COVER
Например: 11340-37401
1
11340-37401
Cover, clutch
2
11971-45010
СТЕКЛО ДАТЧИКА УРОВНЯ МАСЛА
1 010 ₽/шт
3
11482-37400-H17
Gasket - clutch cover
4
04211-13189
ШТИФТ
129 ₽/шт
5
01547-0650A
Болт
1 410 ₽/шт
6
01547-0640A
БОЛТ
97 ₽/шт
7
01547-0635B
Болт
97 ₽/шт
8
01547-0625B
БОЛТ
97 ₽/шт
9
02112-0625A
Болт
85 ₽/шт
10
09200-30821
Plug set
11
09280-32005
O RING(D:2.2,ID:32)
204 ₽/шт
12
09247-14015
ШЛАНГ
2 310 ₽/шт
13
09168-14004
Прокладка
129 ₽/шт
14
11351-37402
Cover, magneto
15
11483-12D10
Прокладка зажигания
1 994 ₽/шт
16
04211-13189
ШТИФТ
129 ₽/шт
17
01547-06307
Болт
102 ₽/шт
18
01547-0625B
БОЛТ
97 ₽/шт
19
09247-12103
PLUG(12X9)
211 ₽/шт
20
09168-12002
Прокладка
81 ₽/шт
21
11361-37401
Cover, engine sprocket
22
01547-0645B
Болт
97 ₽/шт
23
01547-06307
Болт
102 ₽/шт
24
01547-0620B
БОЛТ
81 ₽/шт
25
11371-12D10
Cvr, gear shift
26
11485-37400-H17
27
04211-09129
Стопор
102 ₽/шт
28
02112-1635A
Vis
29
02112-06307
Болт
85 ₽/шт
30
02112-06207
ШАЙБА
85 ₽/шт
