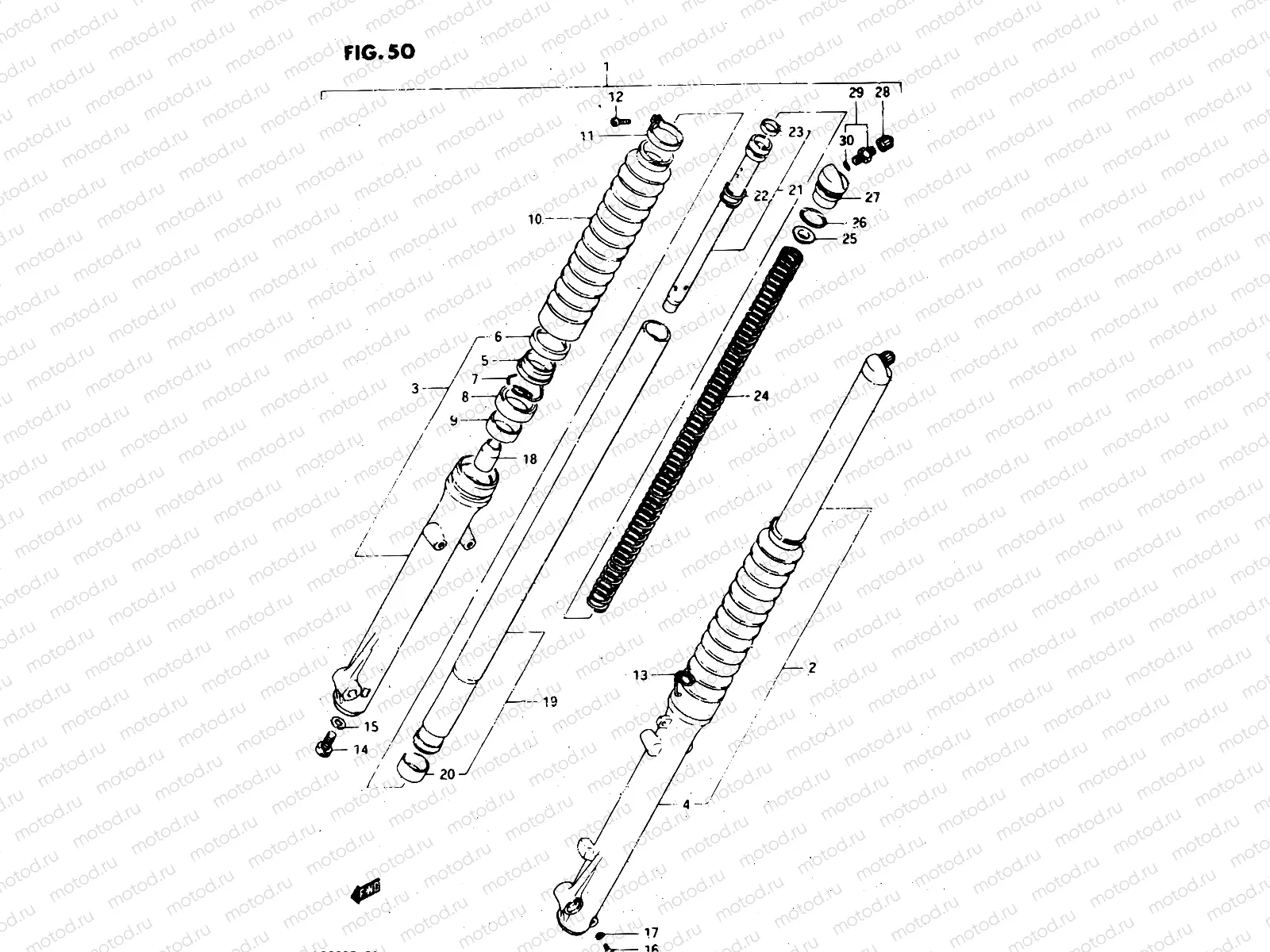

50 - FRONT FORK (MODEL E)

50 - FRONT FORK (MODEL E)
Например: 51103-37448-019
1
51103-37448-019
Damper assy, rh (black)
1
51103-37448-19F
Damper assy, rh (blue)
2
51104-37448-019
Damper assy, lh (black)
2
51104-37448-19F
Damper assy, lh (blue)
3
51130-37448
.outer tube rh
4
51140-37448
.outer tube lh
5
51173-40500
Dust seal,fr fo
6
51149-40500
CASE,DUST SEAL
7
51156-30400
Circlip,fork oi
8
51153-16730
Сальник
3 001 ₽/шт
9
51167-37446
..slide metal
10
51571-37448-019
.boot (black)
10
51571-37448-19F
.boot (blue)
11
51575-41410
Band,boot
12
02112-0416A
Болт
82 ₽/шт
13
51573-37411
.band, lh
14
51147-16510
BOLT,FORK CYLINDER(10X25)
238 ₽/шт
15
51148-41310
GASKET
170 ₽/шт
16
02112-04087
Винт 4X8
85 ₽/шт
17
51183-03010
Прокладка
149 ₽/шт
18
51195-49071
PIECE,OIL LOCK
1 177 ₽/шт
19
51110-37446
.inner tube
20
31121-37410
..piston
21
51146-30400
.cylinder
22
51177-37446
Пружина
414 ₽/шт
23
51196-37446
..ring
24
51171-37446
.spring
25
51172-38010
.guide, spring
26
51117-16310
O-Ring
27
51351-37446
.cap
28
51294-20400
CAP
368 ₽/шт
29
51293-44400
.valve
30
09280-06005
Кольцо уплотнительное
129 ₽/шт
