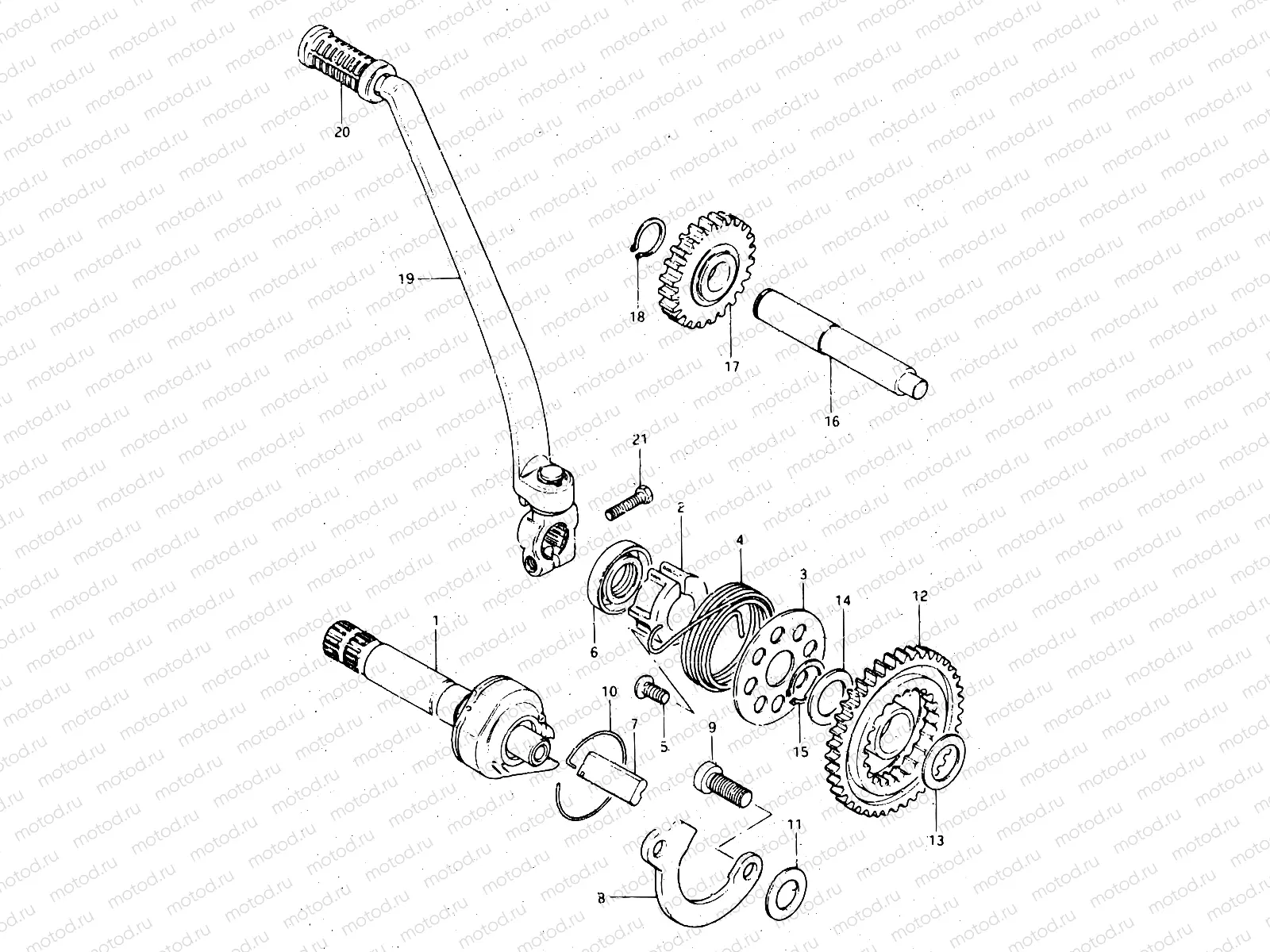

17 - KICK STARTER

17 - KICK STARTER
Например: 26210-37400
1
26210-37400
Shaft, kick starter
2
26221-37400
Guide, spring
3
26222-37400
Holder, spring
4
09448-58001
SPRING
7 860 ₽/шт
5
02142-06167
Винт крестовый 6x16
81 ₽/шт
6
09283-20025
SEAL,OIL(20X37X7)
348 ₽/шт
7
26231-37400
Pawl,kick start
8
26232-37400
Lifter
9
26233-37401
Stopper
10
26234-37400
Spring
11
09181-16223
SHIM(16X28X1)
1 520 ₽/шт
12
26240-37400
Gear,kick start
13
09181-20195
Шайба
194 ₽/шт
14
09181-22167
SHIM,22X30X1
194 ₽/шт
15
08331-3120A
CIRCLIP
146 ₽/шт
16
26223-37400
Shaft, idle
17
26260-37400
Gear (nt:24)
18
09380-17001
CIRCLIP
162 ₽/шт
19
26300-37401
Lever assy, kick starter
20
26352-16402
Rubber,kick Starter Pedal
301 ₽/шт
21
09100-08194
Vis
