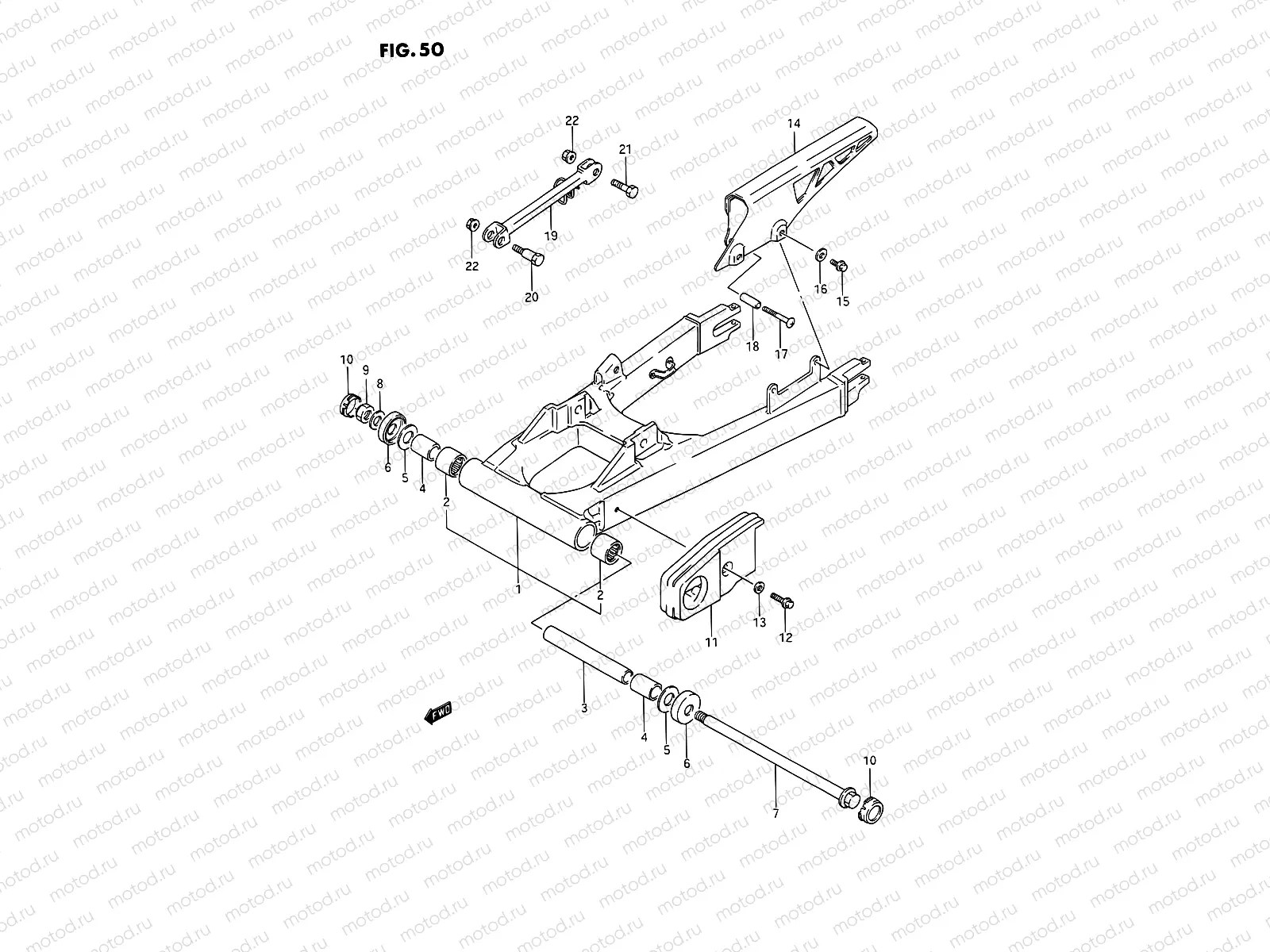

50 - REAR SWINGING ARM

50 - REAR SWINGING ARM
Например: 61000-48C00
1
61000-48C00
Swinging arm assy, rear
2
09263-25024
BEARING(25X33X30)
4 165 ₽/шт
3
61282-48B00
Spacer, center
4
61251-49000
SPACER,RR SWGARM PIVOT
2 072 ₽/шт
5
08211-16381
WASHER
1 410 ₽/шт
6
61262-49202
Cover,rr Swingingarm Pivot
1 207 ₽/шт
7
61211-20C00
Shaft, swinging arm pivot
8
09160-14015
WASHER(14X27X3)
2 660 ₽/шт
9
09159-14019
Гайка
7 080 ₽/шт
10
61222-48B00
CAP,RR SWINGING ARM PIVOT
379 ₽/шт
11
61273-48B12
Guard chain sliding shoe
12
01550-0620B
БОЛТ
81 ₽/шт
13
09169-06040
Шайба
1 060 ₽/шт
14
61310-48B00
Case,chain
15
01550-0612B
БОЛТ
81 ₽/шт
16
09169-06026
Пластина замка
119 ₽/шт
17
02142-06553
SCREW
1 330 ₽/шт
18
09180-06130
Entretoise
19
64310-48B10
Torque link, rear
20
09111-10039
PARAFUSO
21
09100-10187
BOLT(10X34)
2 270 ₽/шт
22
08319-3110B
Гайка
1 920 ₽/шт
