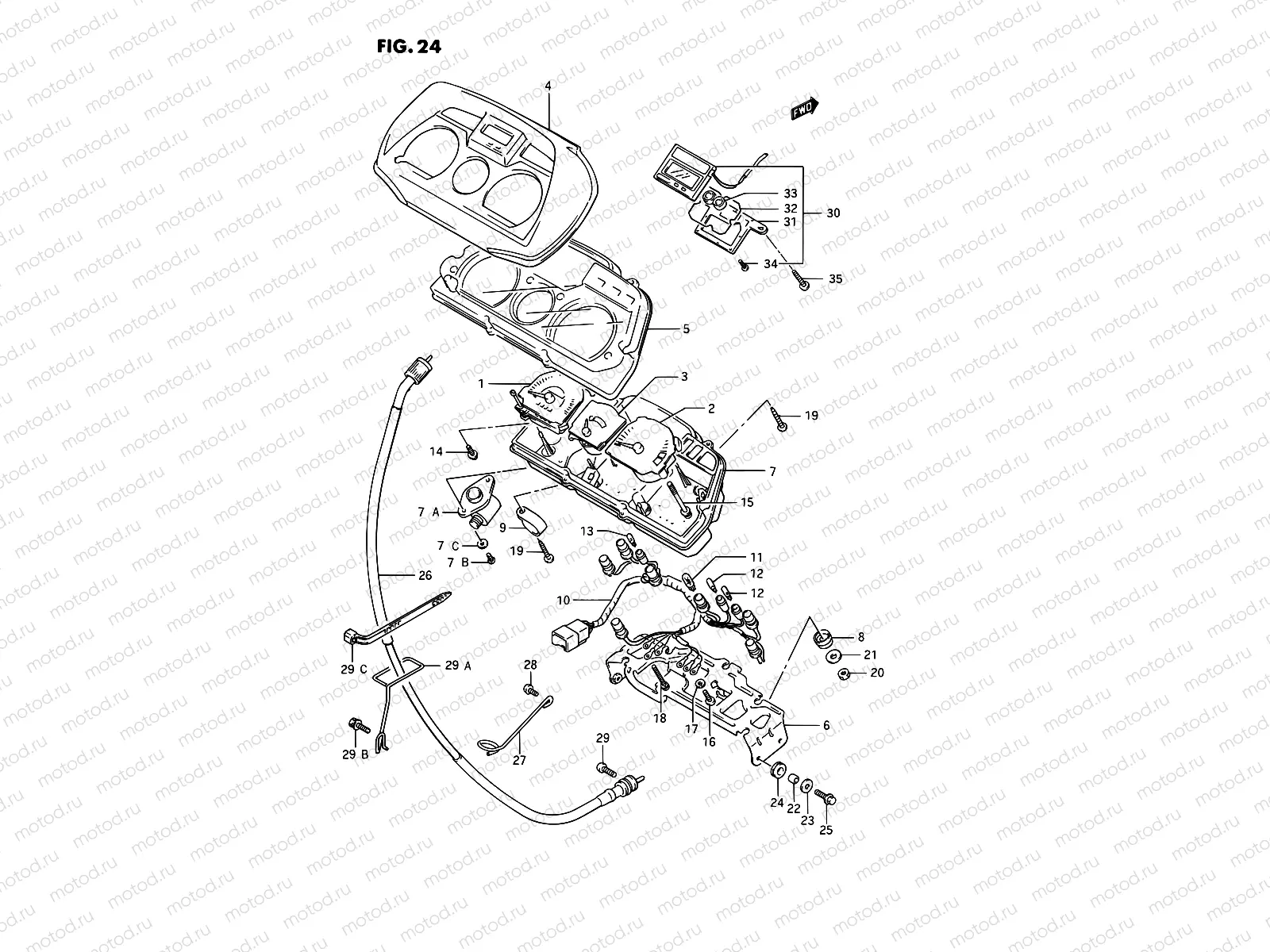

24 - SPEEDOMETER

24 - SPEEDOMETER

Например: 34110-48B12

1

34110-48B12

Speedometer

1

34110-48B33

Speedometer (mile/kilo)

2

34210-48B12

Meter ,tacho

3

34310-48B10

Fuel meter

4

34151-48B60

Visor

5

34112-48B60

Glass assy

5

34112-48B30

Glass assy

6

34950-48B10

racket, meter

7

34111-48B11

Case,meter

7

34131-48B10

ox,meter gear

7

02112-3412B

Болт

1 170 ₽/шт

7

09160-04026

Шайба

141 ₽/шт

8

34189-24A30

CUSHION

301 ₽/шт

9

36385-48B10

Clamp

10

34175-48B10

Socket & cord

11

09471-12028

Лампочка

210 ₽/шт

12

09471-12085-LCP

Bulb (12v3w)

13

09471-12108

ЛАМПА НАКАЛИВАНИЯ

226 ₽/шт

14

02142-0408B

Винт

82 ₽/шт

15

34283-32B00

Screw (4x36)

16

02112-0312B

Болт

1 330 ₽/шт

17

09162-03001

Шайба блокирующая

900 ₽/шт

18

34383-09400

SCREW(3X22)

172 ₽/шт

19

03242-0416B

Болт

289 ₽/шт

20

08310-00057

Гайка

81 ₽/шт

21

09160-05043

Шайба

102 ₽/шт

22

09180-06261

Прокладка

189 ₽/шт

23

09160-06084

Шайба 6.5X18X1

81 ₽/шт

24

09320-08510

Втулка резиновая (8.5X20X8)

194 ₽/шт

25

01550-0620B

БОЛТ

81 ₽/шт

26

34910-48B01

Câble de compteur de vitesse

27

34938-45100

CLAMP,SPEEDOMETER CABLE

254 ₽/шт

28

01550-0610B

Болт

85 ₽/шт

29

02112-0516B

Болт

1 090 ₽/шт

29

34938-48B00

Guide

29

01550-0616B

БОЛТ

81 ₽/шт

29

09407-14403

КЛЕММА

221 ₽/шт

30

34600-48B00

Clock assy

31

34652-48B00

.case, lower

32

34653-48B00

Gasket

33

34649-48B00

.battery, lithium

34

34655-48B00

.screw, tapping

35

09132-03008

SCREW,3X16

82 ₽/шт
