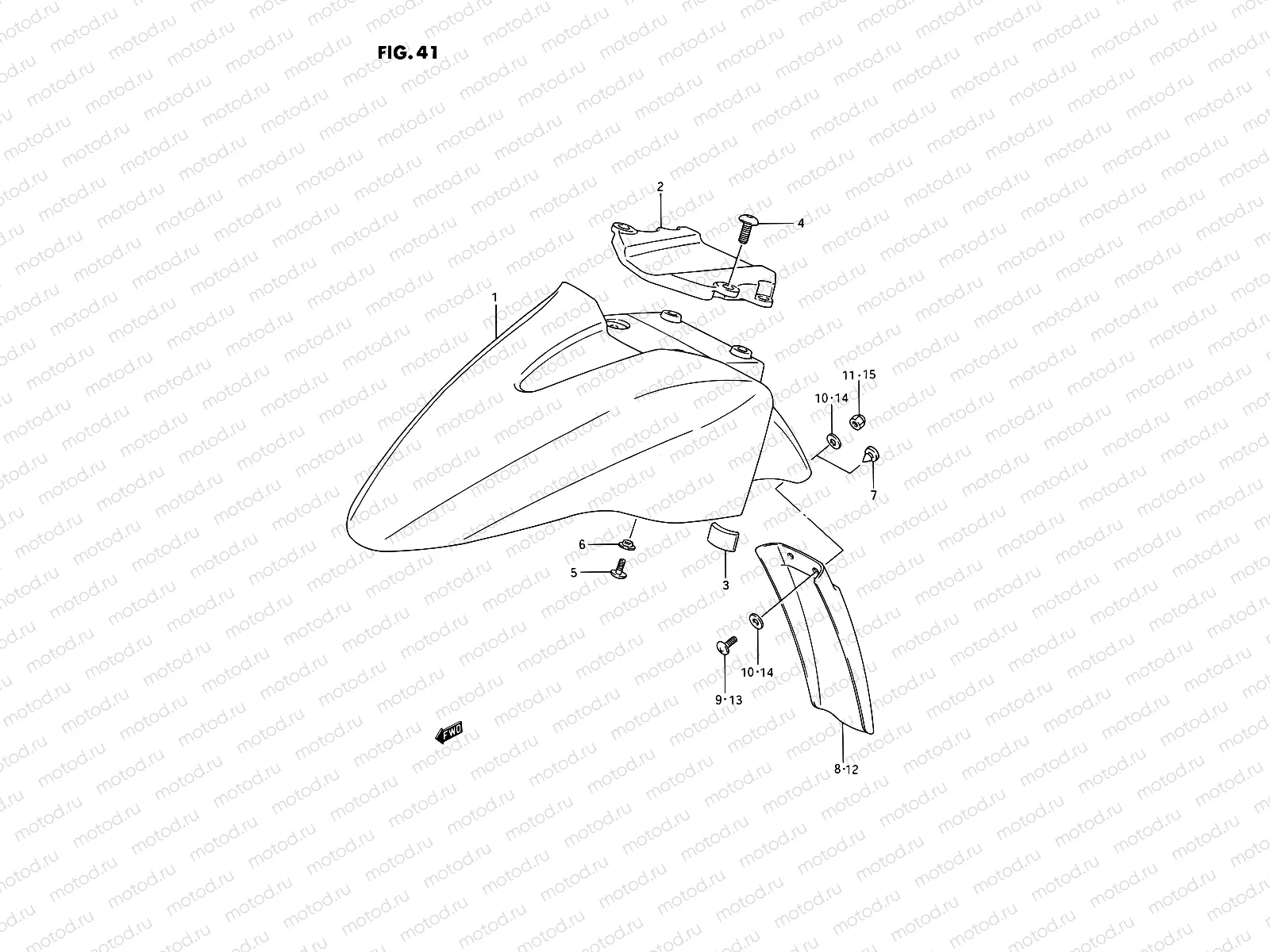

41 - FRONT FENDER

41 - FRONT FENDER
Например: 53111-48B10-13L
1
53111-48B10-13L
Fender,front
1
53111-48B20-13L
Fender, front (silver)
1
53111-48B21-24V
Front mudguard (blue)
1
53111-48B21-24D
Fender, front (maroon)
1
53111-48B20-23S
Fender, front (silver)
1
53111-48B20-33J
Fender, front (black)
1
53111-48B21-33J
Fender, front (black)
1
53111-48B21-13L
Fender, front (silver)
1
53111-48B11-24D
Fender, front (maroon)
1
53111-48B11-19A
Front mudguard (red)
1
53111-48B21-16B
Fender, front (silver)
1
53111-48B21-19A
Front mudguard (red)
1
53111-48B21-1HU
Fender, front (purple)
1
53111-48B11-17U
Front mudguard (gray)
1
53111-48B21-17U
Front mudguard (gray)
2
53114-48B10-13L
race,fr fender
3
53145-48B00
CUSHION,FR FENDER
172 ₽/шт
4
09139-08007
Винт
194 ₽/шт
5
02142-05127
Болт
85 ₽/шт
6
09169-05009
Шайба
1 640 ₽/шт
7
09250-06017
Plug(Od:10)
2 070 ₽/шт
8
53311-48B00
Mud guard,front
9
02142-0510A
Болт
82 ₽/шт
10
08322-0105B
Шайба
81 ₽/шт
11
08313-1005B
Гайка
1 370 ₽/шт
12
53311-48B00
Mud guard,front
13
02142-0510A
Болт
82 ₽/шт
14
08322-0105B
Шайба
81 ₽/шт
15
08313-1005B
Гайка
1 370 ₽/шт
