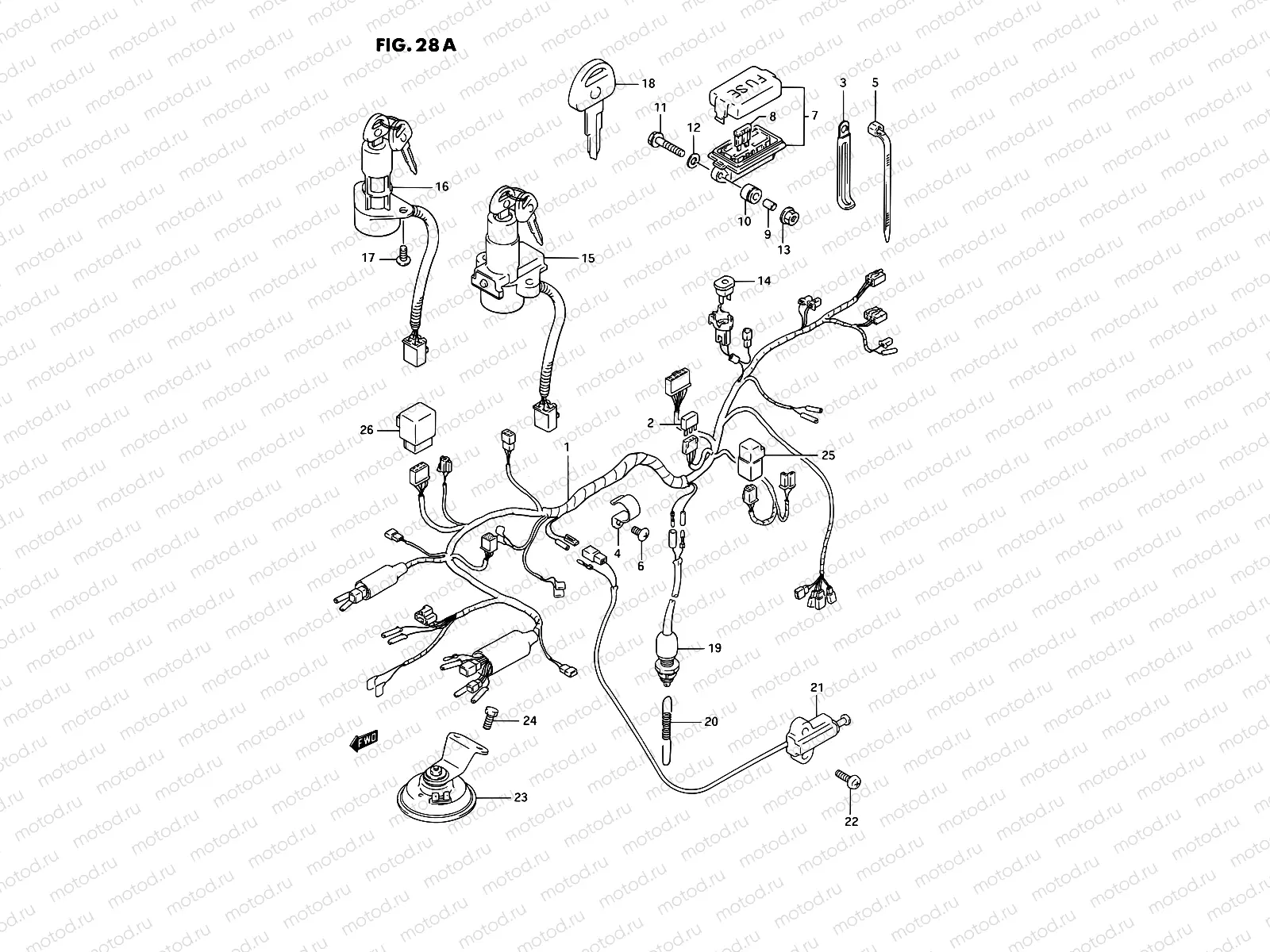

28A - WIRING HARNESS (MODEL R)

28A - WIRING HARNESS (MODEL R)
Например: 36610-48B70
1
36610-48B70
Harness, wiring
2
36611-38A10
DIODE
1 024 ₽/шт
3
09404-06036
Clamp(L:80)
194 ₽/шт
4
09403-20301
Collier
5
09407-14403
КЛЕММА
221 ₽/шт
5
09407-18402
Струбцина (L:165)
211 ₽/шт
6
03141-06103
Vis
7
36740-20C01
ase assy,fuse
8
09481-10010-025
Fusible (10A)
9
09180-06253
Spacer,6.1x8x17
10
09320-08050
Cushion
11
01550-0635B
Болт
112 ₽/шт
12
09160-06056
WASHER(6.5X18X1)
82 ₽/шт
13
09159-06024
Гайка
136 ₽/шт
14
36750-05A00
BREAKER ASSY,CIRCUT
3 754 ₽/шт
15
37100-48B10
Lock,steering
16
37110-48B00
Ign switch
17
02142-0612B
Винт
81 ₽/шт
18
37146-47010
KEY,BLANK
1 541 ₽/шт
19
37740-45D00
SWITCH ASSY,STOP LAMP
1 224 ₽/шт
20
09443-06073
ПРУЖНА
226 ₽/шт
21
37840-12X51
Switch Assy,side Stand
6 412 ₽/шт
22
01550-0620B
БОЛТ
81 ₽/шт
23
38500-48B00
Horn assy
24
01570-0616A
Болт
85 ₽/шт
25
38740-24X50
RELAY ASSY, HEAD LAMP
2 665 ₽/шт
26
38750-48B00
Relay assy
