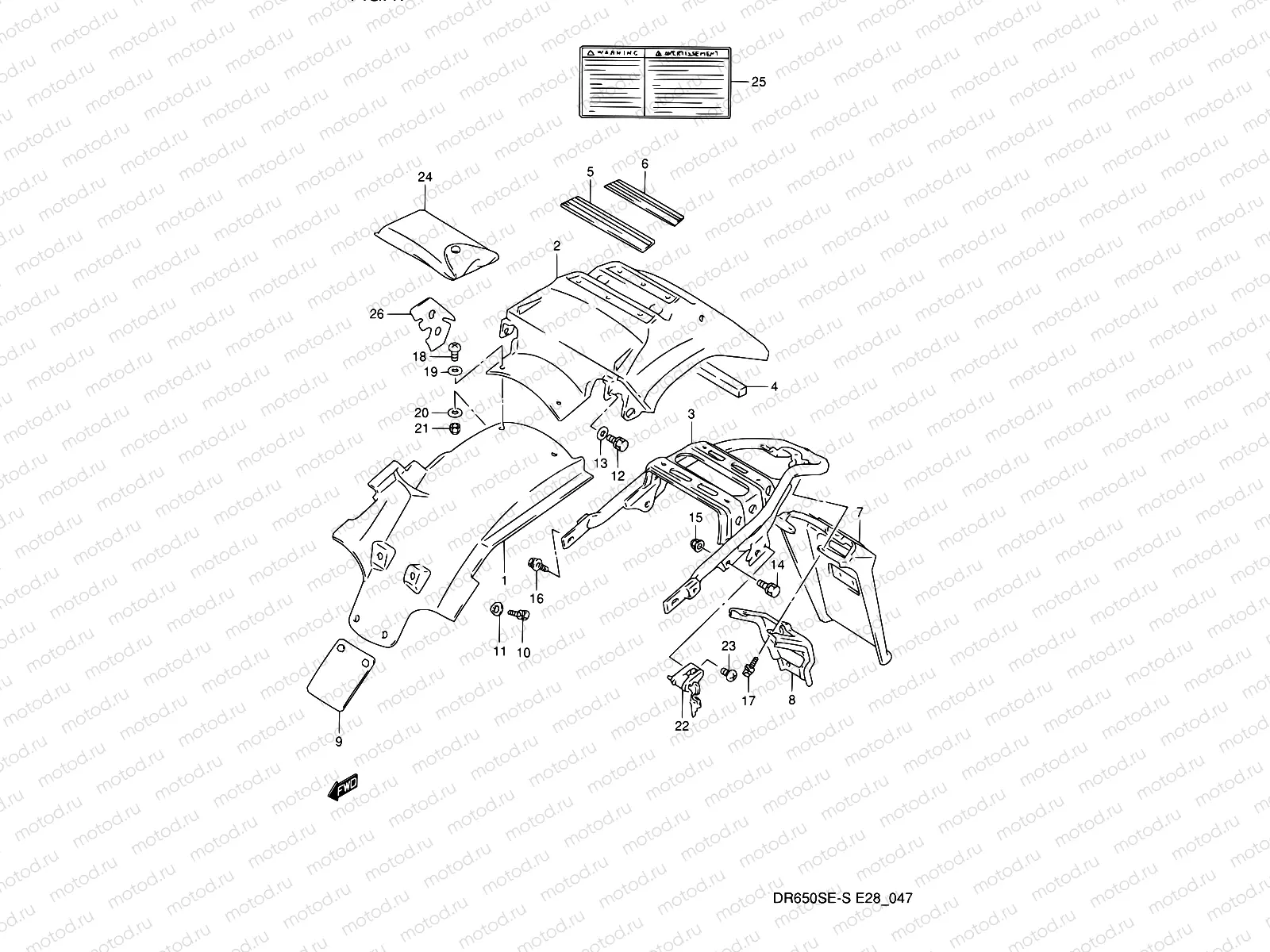

47 - REAR FENDER (MODEL N/P)

47 - REAR FENDER (MODEL N/P)
Например: 63112-12E00
1
63112-12E00
Body, rear fender front
2
63113-12E20-30H
Body, rear fender rear (white)
3
63120-12E01
4
63192-12E00
Cushion, fender (l:125)
5
63193-12E00
Cushion, fender (l:166.2)
6
63193-12E10
Cushion, fender (l:149.5)
7
63311-03D20
Extension, rear fender
8
63320-03D03
Reinforcement,r
9
63411-13700
Mud guard,rr fe
10
01570-06167
БОЛТ
72 ₽/шт
11
09169-06016
WASHER
170 ₽/шт
12
01500-06127
Болт
81 ₽/шт
13
09169-06041
Шайба
85 ₽/шт
14
01570-0825A
БОЛТ
113 ₽/шт
15
08319-31087
Гайка
178 ₽/шт
16
09118-08128
BOLT(8X16)
136 ₽/шт
17
09116-06152
BOLT(6X20)
146 ₽/шт
18
02142-05127
Болт
85 ₽/шт
18
02142-0512A
Болт
85 ₽/шт
20
09160-05043
Шайба
102 ₽/шт
21
08319-21057
Гайка
97 ₽/шт
22
95700-03811
LOCK SET,HELMET
4 497 ₽/шт
23
02112-0512A
Болт
85 ₽/шт
24
09800-21023
Tool assy
25
68319-15D10
Label, warning safety
26
63116-12E01
Shield,rear fender
27
68332-14A60
LABEL,TIRE AIR PRESSURE
879 ₽/шт
28
99011-12E50-28B
Manual, owner's
