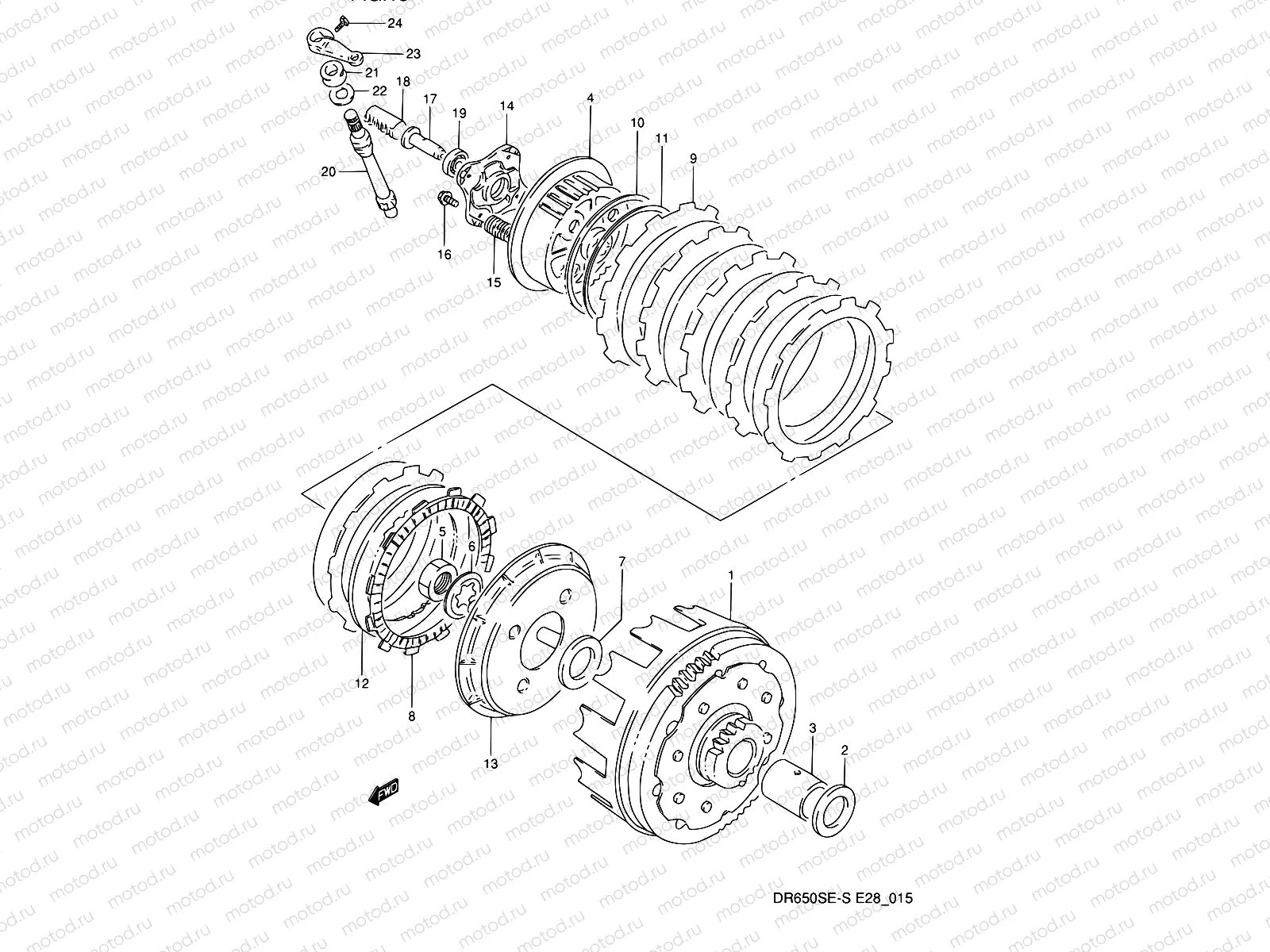

15 - CLUTCH (MODEL N/P)

15 - CLUTCH (MODEL N/P)
Например: 21200-12D01
1
21200-12D01
Gear, primary driven
2
08211-22383
WASHER
1 920 ₽/шт
3
09180-22023
SPACER(22X28X32.5)
12 080 ₽/шт
4
21451-05A00
Диск сцепления
2 423 ₽/шт
4
21481-20A01
Stopper,wave wa
4
21471-12E00
SEAT,WAVE WASHER
825 ₽/шт
4
21410-12D01
Hub,cl.sleeve
5
09140-22003
Rondelle (Lock)
6
09167-22005
ШАЙБА
210 ₽/шт
7
08211-22383
WASHER
1 920 ₽/шт
8
21441-12D01
Диск сцепления
2 550 ₽/шт
9
21442-37401
ДИСК СЦЕПЛЕНИЯ
2 907 ₽/шт
10
21471-37400
SEAT,WAVE WASHER(T:1.4)
485 ₽/шт
11
09164-00004
Шайба
1 034 ₽/шт
12
21451-14A00
Стальной диск сцепления, 1,6 мм
985 ₽/шт
13
21462-12D00
isc,cl.press.
14
21465-37400
PLATE,RELEASE
1 024 ₽/шт
15
09440-20013
Пружина
275 ₽/шт
16
01550-06207
БОЛТ
85 ₽/шт
17
23121-14A00
Piece, clutch push
18
23165-37400
Rack,cl.release
19
09262-12001
Подшипник
1 131 ₽/шт
20
23261-16501
Pinion, release
21
09285-12006
САЛЬНИК ТРАНСМИССИИ, РЕЗИНА
275 ₽/шт
22
09160-14054
Шайба
1 130 ₽/шт
23
23271-45400
Arm,clutch rele
24
01500-06207
Болт
81 ₽/шт
