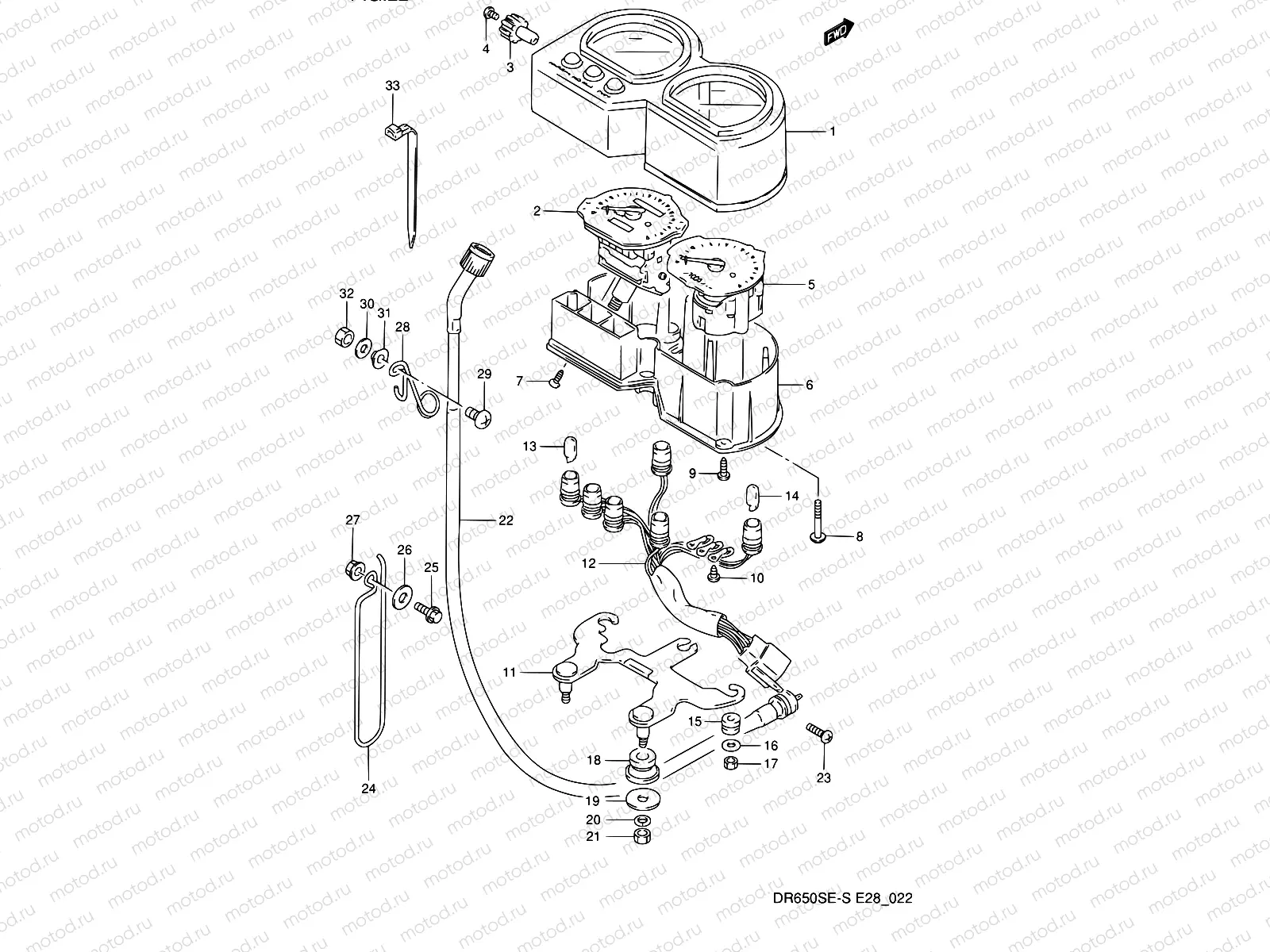

22 - SPEEDOMETER - TACHOMETER (MODEL N/P)

22 - SPEEDOMETER - TACHOMETER (MODEL N/P)
Например: 34150-12E10
1
34150-12E10
Hood, meter
2
34120-12E10
SPEEDOMETER
3
34124-34A00
Knob
4
09139-02003
Болт
940 ₽/шт
5
34220-12E00
Tachometer
6
34111-12E00
Case,meter
7
02112-7410B
SCREW
1 330 ₽/шт
8
34283-32B00
Screw
9
03512-04149
Болт
820 ₽/шт
10
02112-3310B
Болт
1 330 ₽/шт
11
34950-12E00
Bracket, meter
12
34170-12E00
SOCKET
13
09471-12028
Лампочка
210 ₽/шт
14
09471-12077
BULB(12V1.7W,T10,WB121)
1 990 ₽/шт
15
34189-32B00
CUSHION
255 ₽/шт
16
09160-05043
Шайба
102 ₽/шт
17
08310-00057
Гайка
81 ₽/шт
18
34956-31001
CUSHION,METER BRACKET
501 ₽/шт
19
09160-08135
Шайба
113 ₽/шт
20
08321-0108B
Пластина замка
81 ₽/шт
21
08310-0008B
Гайка
85 ₽/шт
22
34910-12E01
Cable Assy,speedometer
3 740 ₽/шт
23
02112-05167
Болт
81 ₽/шт
24
34938-14D30
GUIDE,METER CABLE NO.2
692 ₽/шт
25
01550-06207
БОЛТ
85 ₽/шт
26
09160-06066
Шайба
102 ₽/шт
27
08319-31067
Гайка
153 ₽/шт
28
34938-14D21
GUIDE,SPEEDOMETER CABLE
578 ₽/шт
29
02142-06167
Винт крестовый 6x16
81 ₽/шт
30
09160-06109
Шайба
85 ₽/шт
31
09169-06053
Шайба (6.3X16X1)
97 ₽/шт
32
08310-00067
Гайка
81 ₽/шт
33
09407-14403
КЛЕММА
221 ₽/шт
