Главная Каталог товаров SUZUKI EPC 350 cm³ - 699 cm³ SUZUKI DR 650 SUZUKI DR650S N SUZUKI 23 - HEADLAMP

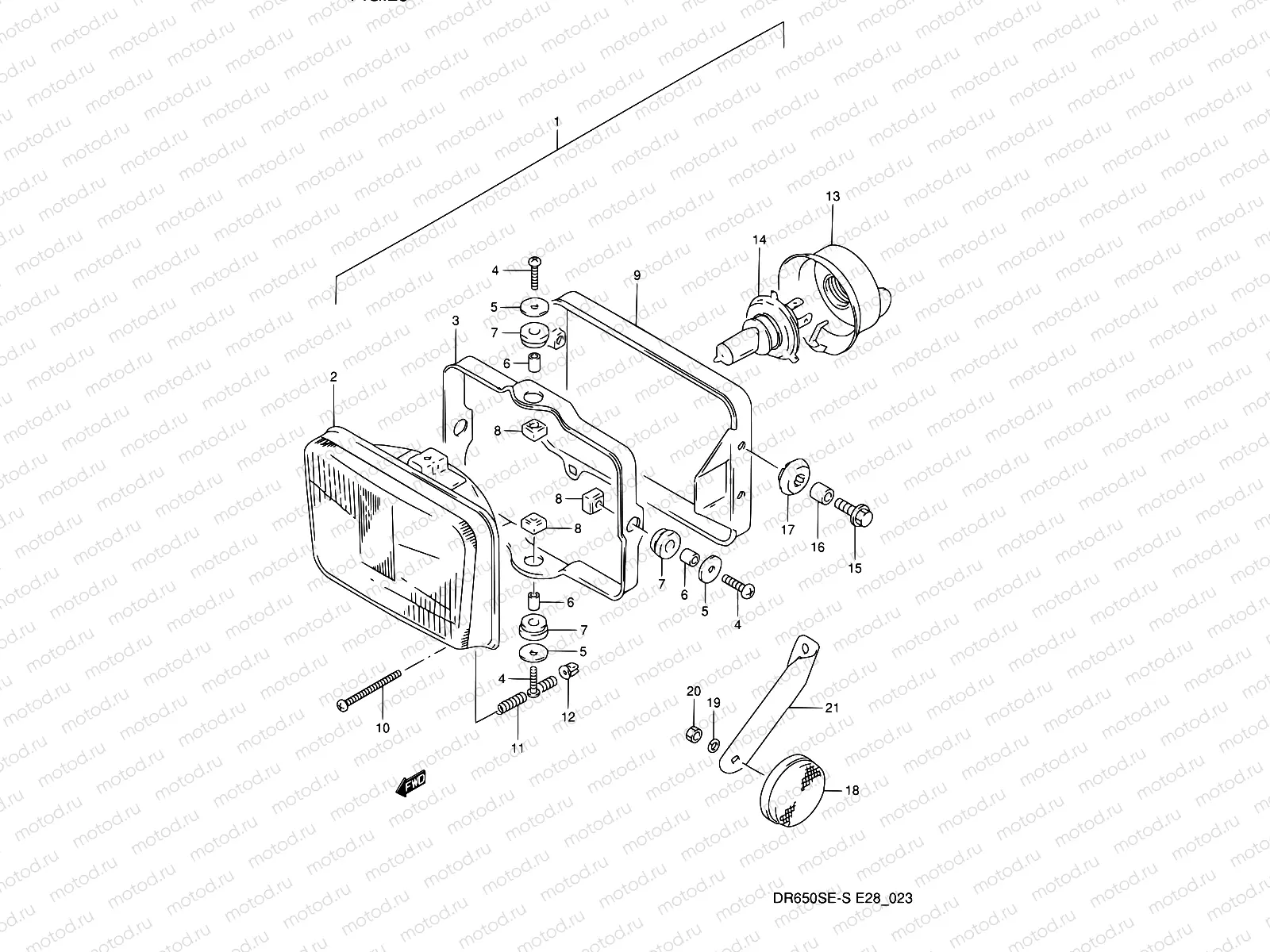

23 - HEADLAMP

23 - HEADLAMP

Например: 35100-12E30

1

35100-12E30

Headlamp assy

2

35121-12E30

UNIT ASSY

19 191 ₽/шт

3

35130-12E20

Ring mounting

4

02112-0516B

Болт

1 090 ₽/шт

5

09160-05045

Шайба

136 ₽/шт

6

35133-45230

Кольцо/шайба

172 ₽/шт

7

35139-45230

CUSHION

102 ₽/шт

8

35135-45900

Гайка

170 ₽/шт

9

35141-12E20

.housing

10

09125-04501

SCREW(4X45)

1 840 ₽/шт

11

35154-12E20

SPRING,ADJUSTING

223 ₽/шт

12

35135-12E20

NUT,ADJUSTING

192 ₽/шт

13

35173-01440

COVER,SOCKET

899 ₽/шт

14

K9206-91002

Bulb,12v 60/55w

15

01500-06207

Болт

81 ₽/шт

16

09180-06310

SPACER

178 ₽/шт

17

09320-09018

САЙЛЕНТБЛОК

1 250 ₽/шт

18

35950-15500

Reflector

19

08321-0105A

Пластина замка

81 ₽/шт

20

08313-1005B

Гайка

1 370 ₽/шт

21

35956-44B01

RACKET,FR SIDE REFLECTOR,R

594 ₽/шт

21

35957-44B01

RACKET,FR SIDE REFLECTOR,L

594 ₽/шт
