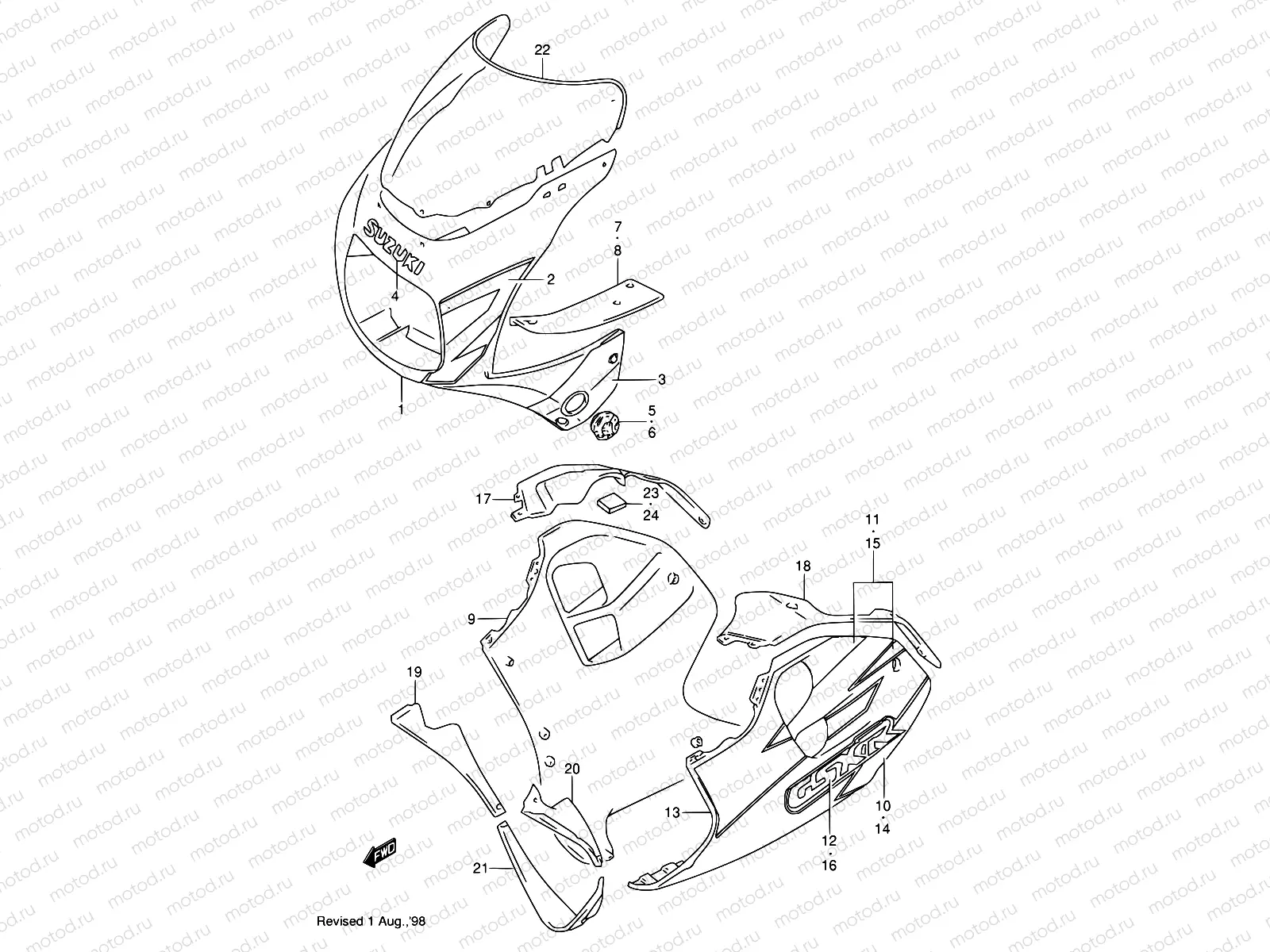

46B - COWLING BODY (MODEL V/W)

46B - COWLING BODY (MODEL V/W)

Например: 94400-46E70-1LX

1

94400-46E70-1LX

Cowling assy, body (white)

1

94400-46E70-35W

Cowling assy, body (gray)

2

68270-46E30-K2P

TAPE SET,BODY COWL,FRONT

2

68270-46E30-K2N

.tape set, body front

3

68280-46E31-K2K

TAPE SET,BODY COWL,SIDE

3

68280-46E31-K2L

.tape set, side

4

68185-05C10-20G

Эмблема

1 130 ₽/шт

4

68185-05C10-0AT

.emblem (chrome)

4

68185-05C10-20H

Эмблема

1 130 ₽/шт

5

94416-17E21

Plate,turnsgn.r

6

94417-17E21

Plate,turnsgn,l

7

94415-17E21

PANEL,COWLING UPR,R

1 900 ₽/шт

8

94425-17E21

PANEL,COWLING UPR,L

1 900 ₽/шт

9

94407-46E70-Y0N

Cowling, under rh (blue)

9

94407-46E70-33J

Cowling assy,un

10

68185-46E20-K1V

.tape, lower rh

10

68185-46E20-G2E

.tape, lower rh

11

68180-46E70-K2P

.tape set, upper rh

11

68180-46E70-K2N

.tape set, upper rh

12

68181-46E30-K2H

.emblem, rh

12

68181-46E30-K2J

.emblem, rh

13

94408-46E70-Y0N

COWLING ASSY,UNDER,L

74 426 ₽/шт

13

94408-46E70-33J

Cowling, under lh (black)

14

68195-46E20-K1V

.tape, lower lh

14

68195-46E20-G2E

.tape, lower lh

15

68190-46E70-K2P

.tape set, upper lh

15

68190-46E70-K2N

.tape set, upper lh

16

68181-46E30-K2H

.emblem, lh

16

68181-46E30-K2J

.emblem, lh

17

94416-46E20

Panel,lower,r

18

94426-46E20

Panel,lower,l

19

94461-46E00-019

COWLING,UNDER INNER,R

1 529 ₽/шт

20

94462-46E00-019

COWLING,UNDER INNER,L

1 529 ₽/шт

21

94498-46E00-019

COWLING,UNDER CTR

6 178 ₽/шт

22

94610-46E20

Screen,wind

23

94915-44E00

CUSHION UNER COWL R

578 ₽/шт

24

61374-08010

CUSHION,CHAIN CASE

422 ₽/шт
