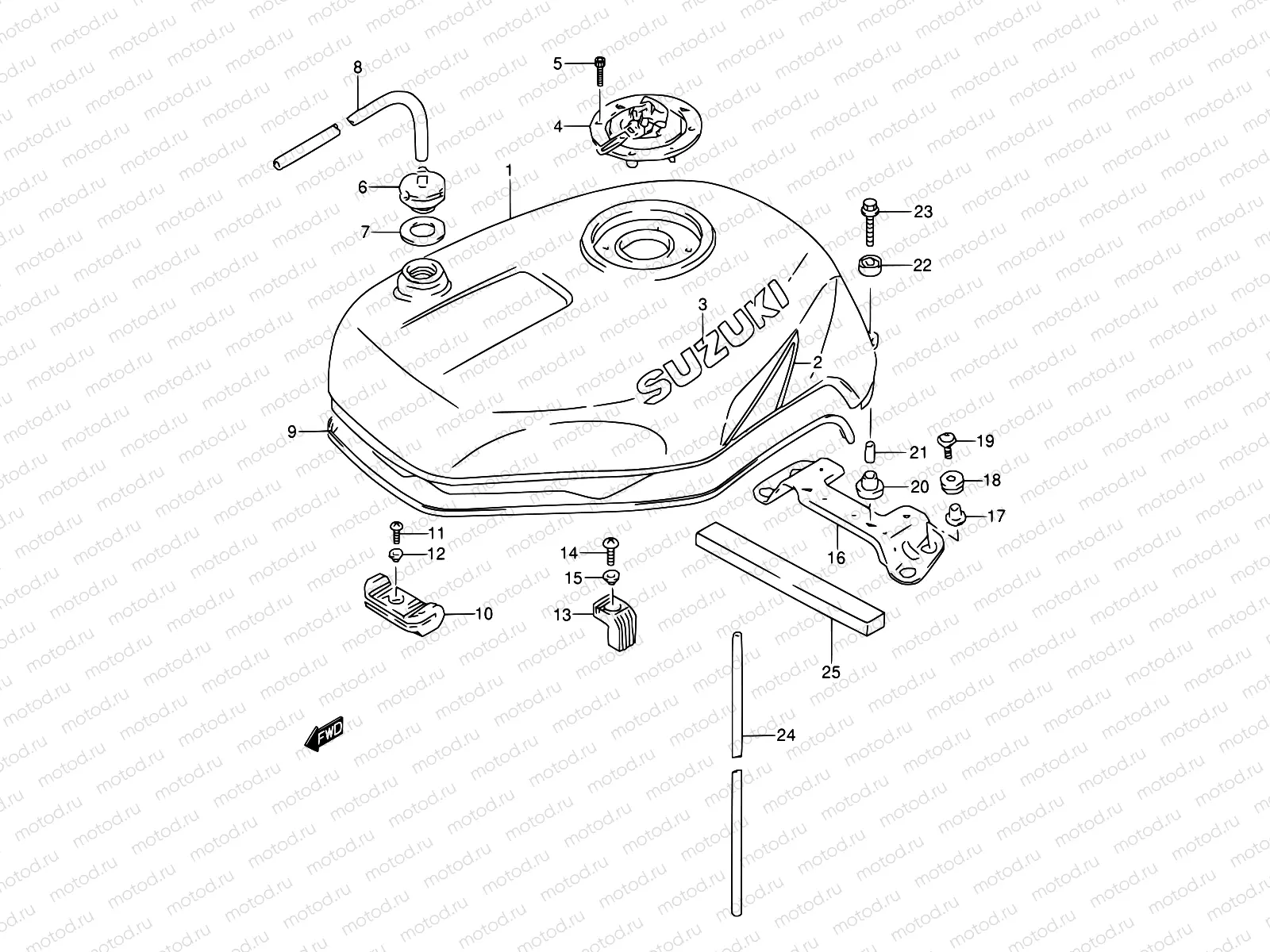

36C - FUEL TANK (MODEL V/W)

36C - FUEL TANK (MODEL V/W)
Например: 44100-46EK0-K1V
1
44100-46EK0-K1V
Tank assy, fuel
1
44100-46EK0-G2E
Tank assy, fuel
2
68110-46E10-K2G
.tape, fuel tank
2
68110-46E10-E88
.tape, fuel tank
3
68111-12C30-20H
EMBLEM
1 427 ₽/шт
3
68111-12CA0-0AT
Emblem(silver)
3
68111-12C30-21J
Emblem
4
44201-01852
Fuel cap
5
09106-05017
БОЛТ
113 ₽/шт
6
44240-06B10
PLUG,FUEL TANK BREATHER
2 678 ₽/шт
7
09168-12012
Прокладка (12.5X20X2.5)
119 ₽/шт
8
09352-50005-600
ШЛАНГ
436 ₽/шт
9
68241-04X50-00B
MOLDING
1 696 ₽/шт
10
44511-41C00
Damper
11
02142-0510A
Болт
82 ₽/шт
12
09169-05012
Шайба
1 370 ₽/шт
13
44545-33C01
ushion,side
14
02142-0620B
Болт
1 060 ₽/шт
15
09169-06045
Шайба
1 060 ₽/шт
16
44530-46E01
Bracket,tank,rr
17
09169-06062
Кольцо/шайба
114 ₽/шт
18
09320-09009
РЕЗИНКА
187 ₽/шт
19
09136-06126
Болт
1 520 ₽/шт
20
09320-10038
CUSHION
115 ₽/шт
21
09180-06271
Кольцо/шайба
172 ₽/шт
22
09320-14017
CUSHION
114 ₽/шт
23
01550-0635B
Болт
112 ₽/шт
24
09352-70104-00B
Hose(7X10.2X2000)
1 406 ₽/шт
25
13841-17E00
CUSHION,AIR SEAL
2 169 ₽/шт
