Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX-R 1100 SUZUKI GSX-R1100W W (E28) SUZUKI 3 - CYLINDER

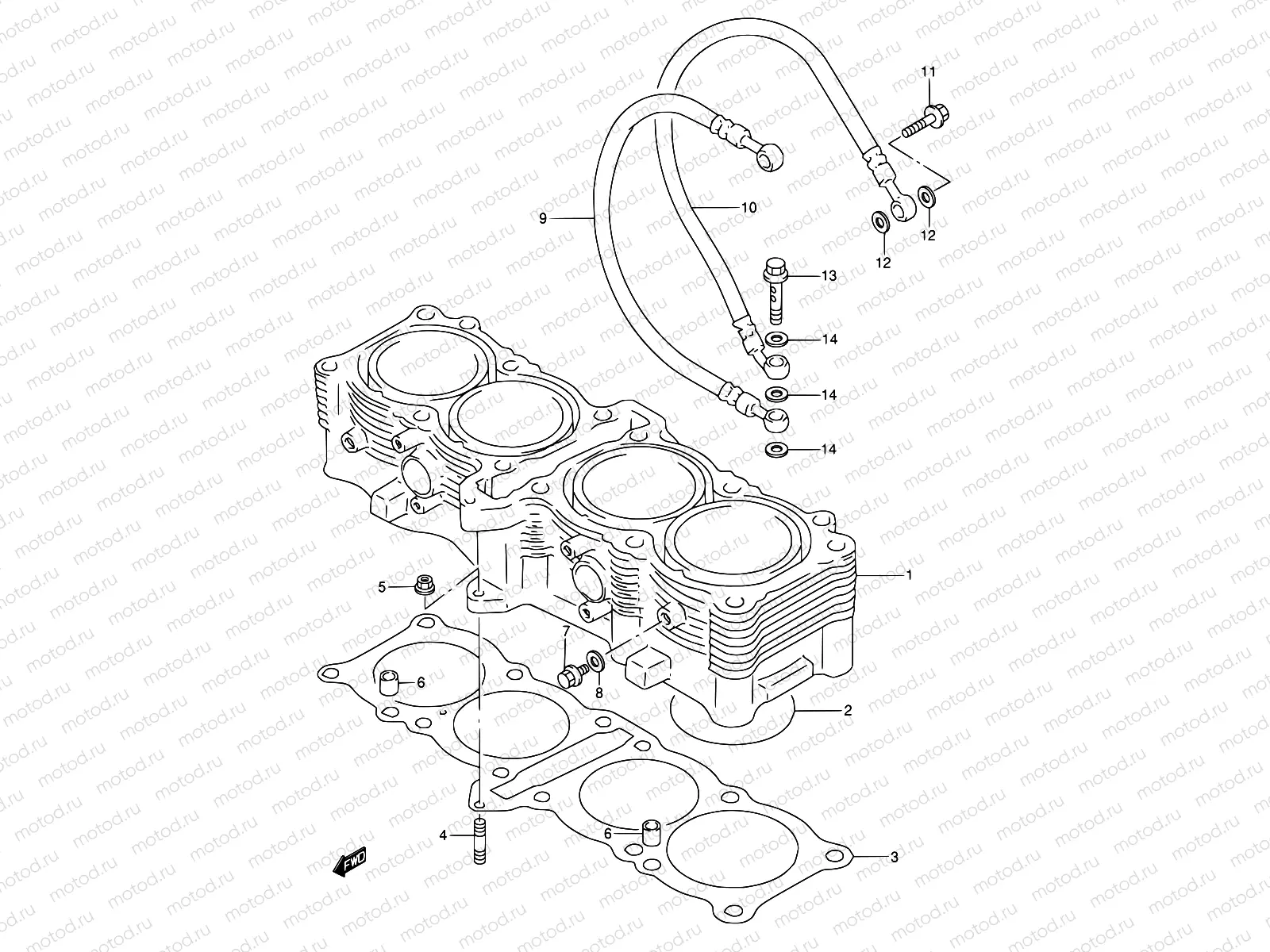

3 - CYLINDER

3 - CYLINDER

Например: 11210-46E01

1

11210-46E01

Cylinder

2

09280-81002

O-Ring (D:1.9,ID:79.5)

3

11241-46E01

Joint d'embase cylindre

4

01421-0620B

Болт

1 170 ₽/шт

5

08319-31067

Гайка

153 ₽/шт

6

04211-11189

ШТИФТ

119 ₽/шт

9

11281-17E01

Oil hose,rh.

10

11282-17E01

Oil hose,lh.

11

09360-08013

Болт соединяющий

7 900 ₽/шт

12

09168-08016

Прокладка

129 ₽/шт

13

09360-10052

Болт соединяющий

13 570 ₽/шт

14

09161-10009

Шайба

113 ₽/шт
