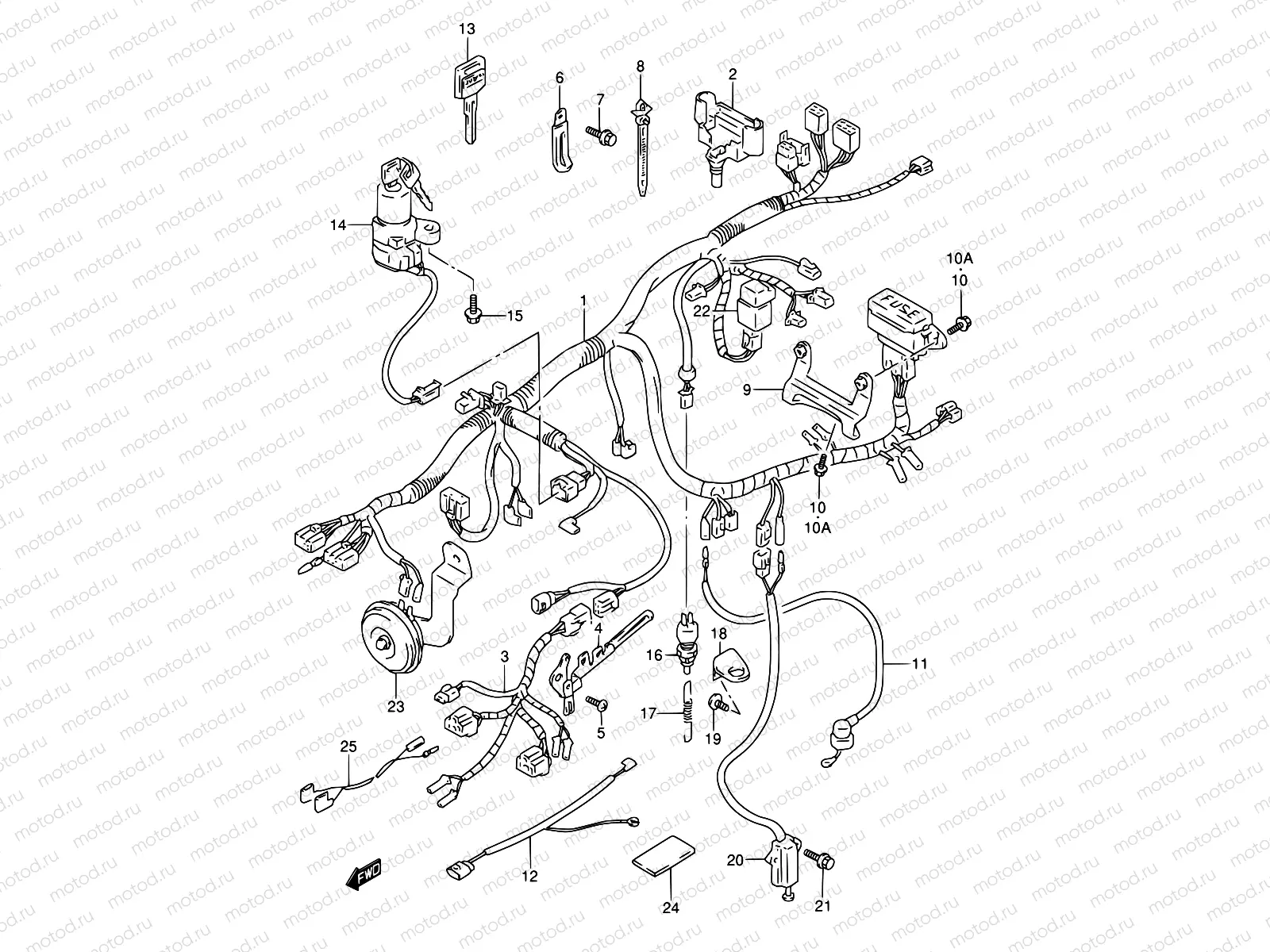

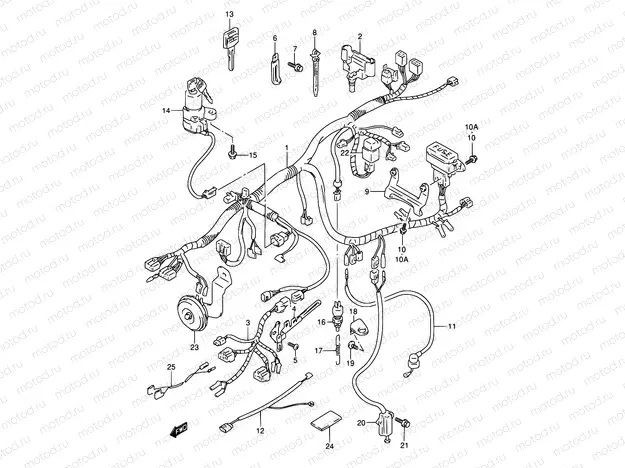

31A - WIRING HARNESS (MODEL S/T/V/W)

31A - WIRING HARNESS (MODEL S/T/V/W)
Например: 36610-46E20
1
36610-46E20
Harness, wiring
2
31861-17E20
Cap,starter rel
3
36620-17E00
Harness,wiring
4
36680-46E10
Holder, cupler rh
4
36680-46E00
Holder, cupler lh
5
03541-0508A
Болт
820 ₽/шт
6
09404-06039
Clamp(L:65)
194 ₽/шт
6
09404-06036
Clamp(L:80)
194 ₽/шт
6
09404-06435
CLAMP(L:135)
226 ₽/шт
7
01550-0610B
Болт
85 ₽/шт
8
09407-14403
КЛЕММА
221 ₽/шт
8
09407-11402
КОЛЬЦО
186 ₽/шт
8
09407-18402
Струбцина (L:165)
211 ₽/шт
8
09407-25401
Хомут
221 ₽/шт
9
47410-17E00
Bracket comp
10
02142-0612B
Винт
81 ₽/шт
10
01550-0612B
БОЛТ
81 ₽/шт
11
36851-17E10
WIRE,OIL PRESSURE SWITCH LEAD
1 165 ₽/шт
12
36852-46E10
Wire, water temp gauge
13
37146-33E00
KEY,BLANK
2 899 ₽/шт
14
37100-46E21
Lock assy,strng
15
37152-17K00
BOLT,STEERING LOCK
266 ₽/шт
16
37740-45D00
SWITCH ASSY,STOP LAMP
1 224 ₽/шт
17
09443-06012
ПРУЖНА
1 840 ₽/шт
18
43250-33C00
Bracket stop
19
09139-06027
Винт (6х12)
194 ₽/шт
20
37840-26X51
Switch Assy,side Stand
7 077 ₽/шт
21
01550-0616B
БОЛТ
81 ₽/шт
22
38740-24X50
RELAY ASSY, HEAD LAMP
2 665 ₽/шт
23
38502-17E12
Звуковой сигнал
7 077 ₽/шт
24
36920-10B00
TAPE
219 ₽/шт
25
36852-19D00
Wire,clutch
