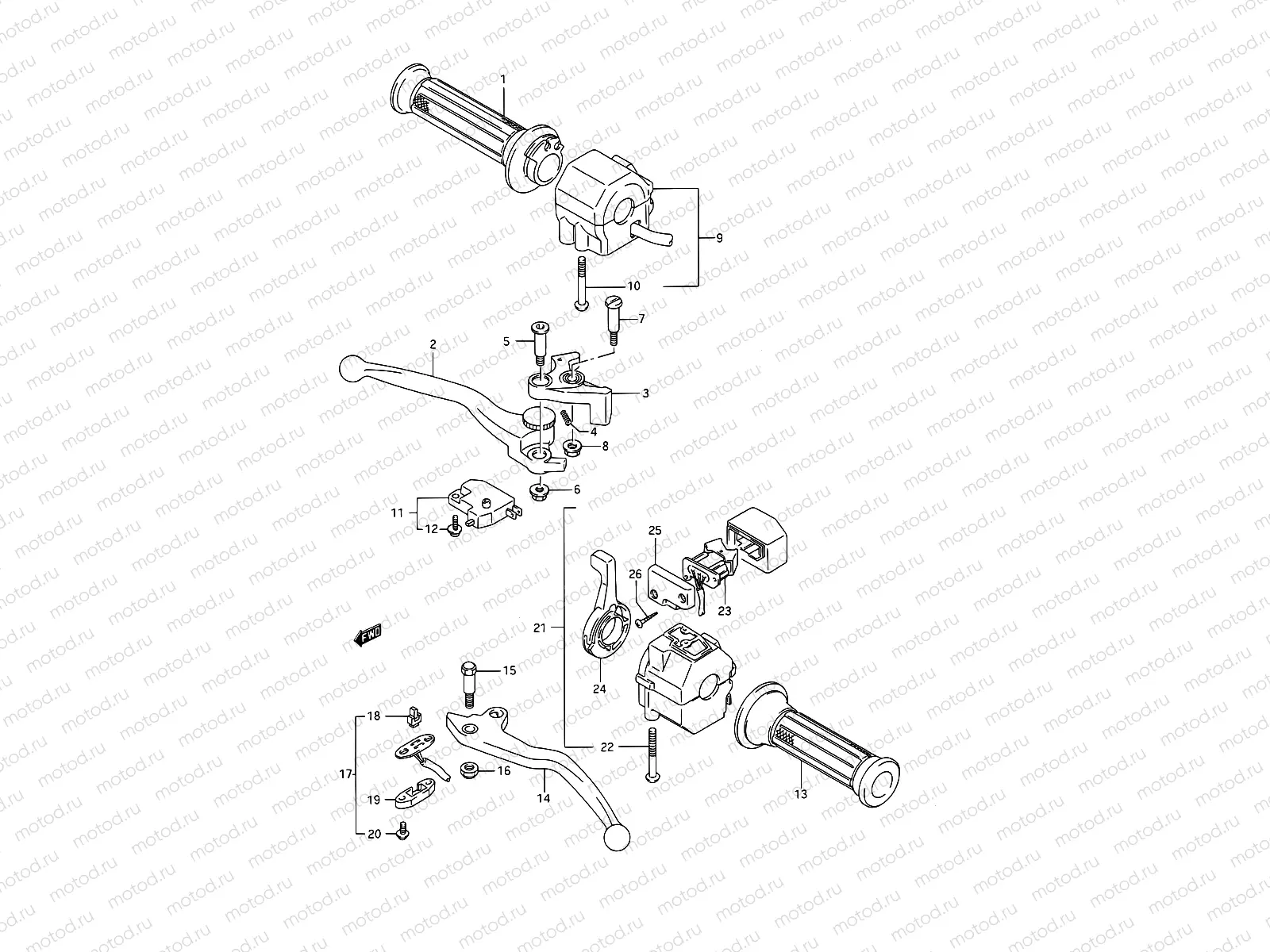

43A - HANDLE SWITCH (MODEL K/L/M/N/P)

43A - HANDLE SWITCH (MODEL K/L/M/N/P)
Например: 57110-49501
1
57110-49501
GRIP,THROTTLE
2 854 ₽/шт
2
57420-48B00
LEVER,ADJUST
4 145 ₽/шт
3
57430-48B00
KNOCKER
3 578 ₽/шт
4
57438-32C00
Пружина
375 ₽/шт
5
57437-32C01
Болт
594 ₽/шт
6
08319-3106B
Гайка
1 490 ₽/шт
7
57431-17C00
Болт
697 ₽/шт
8
08319-31067
Гайка
153 ₽/шт
9
37200-48B50
Switch assy, handle rh
10
02112-0545B
Болт
221 ₽/шт
11
57460-14J02
Switch Assy,stop
3 366 ₽/шт
12
57465-17C00
Болт
170 ₽/шт
13
57211-49500
Рукоятка, левая
2 635 ₽/шт
14
57621-48B00
Levier embrayage
15
57431-05A00
Болт
528 ₽/шт
16
08319-2106A
Гайка
114 ₽/шт
17
57560-18D10
Switch,assy cl.
18
57465-18601
CONTACT,SWITCH
272 ₽/шт
19
57560-18D10
Switch,assy cl.
20
09125-03105-XC0
Болт
1 490 ₽/шт
21
37400-48B30
Switch assy, handle lh
22
02112-0545B
Болт
221 ₽/шт
23
37920-48B10
.switch, screen
24
37571-48B10
Lever starter
25
37575-48B10
Cover,screen sw
26
37391-48B10
.screw
