Главная Каталог товаров SUZUKI EPC 1099 cm³ < SUZUKI GSX 1100 SUZUKI GSX1100F M (E03,E28,E33) SUZUKI 30 - STAND

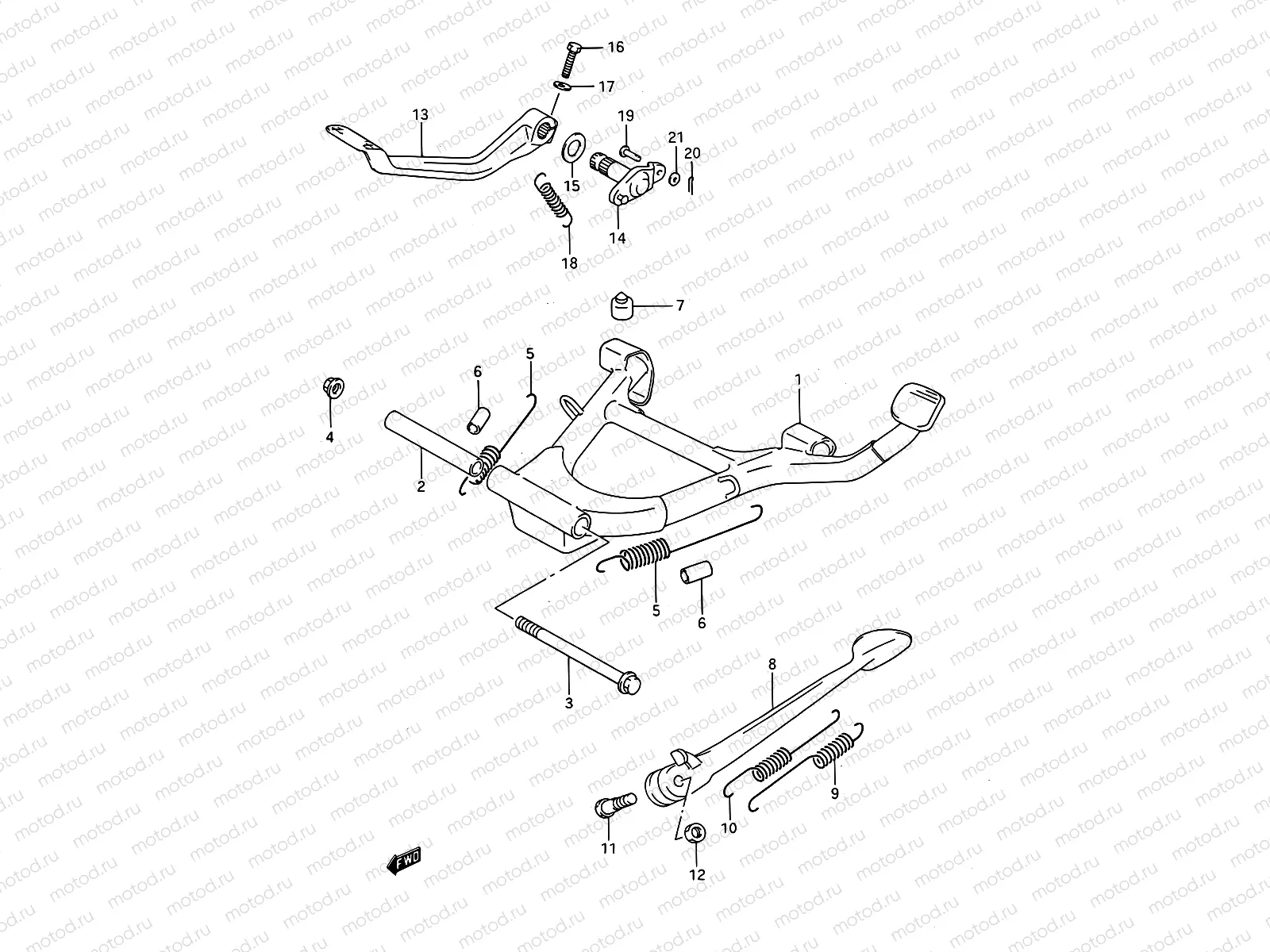

30 - STAND

30 - STAND

Например: 42100-48C10

1

42100-48C10

Béquille centrale

2

09180-10150-XC0

Entretoise

3

09103-10198

BOLT(10X132)

4 420 ₽/шт

4

09159-10060

Гайка 10MM

150 ₽/шт

5

09443-17021-XC0

Spring

6

09352-70113-600

Hose

7

09321-10001

CUSHION

187 ₽/шт

8

42310-48B42

équille latérale

9

09443-15040

Spring, no.1

10

09443-14051

Spring, no.2

11

09111-10036

BOLT(10X38)

2 820 ₽/шт

12

08310-0010B

Гайка

85 ₽/шт

13

43111-48B10

Pedal, brake

14

43120-48B11

Arm, brake pedal rod

15

43212-48B00

Washer, brake boss

16

01550-08257

БОЛТ

101 ₽/шт

18

09443-14026

VEER

19

09200-06068

Вал ручки

226 ₽/шт

20

04111-2015A

Штифт

81 ₽/шт

21

08322-0106A

Шайба

81 ₽/шт
