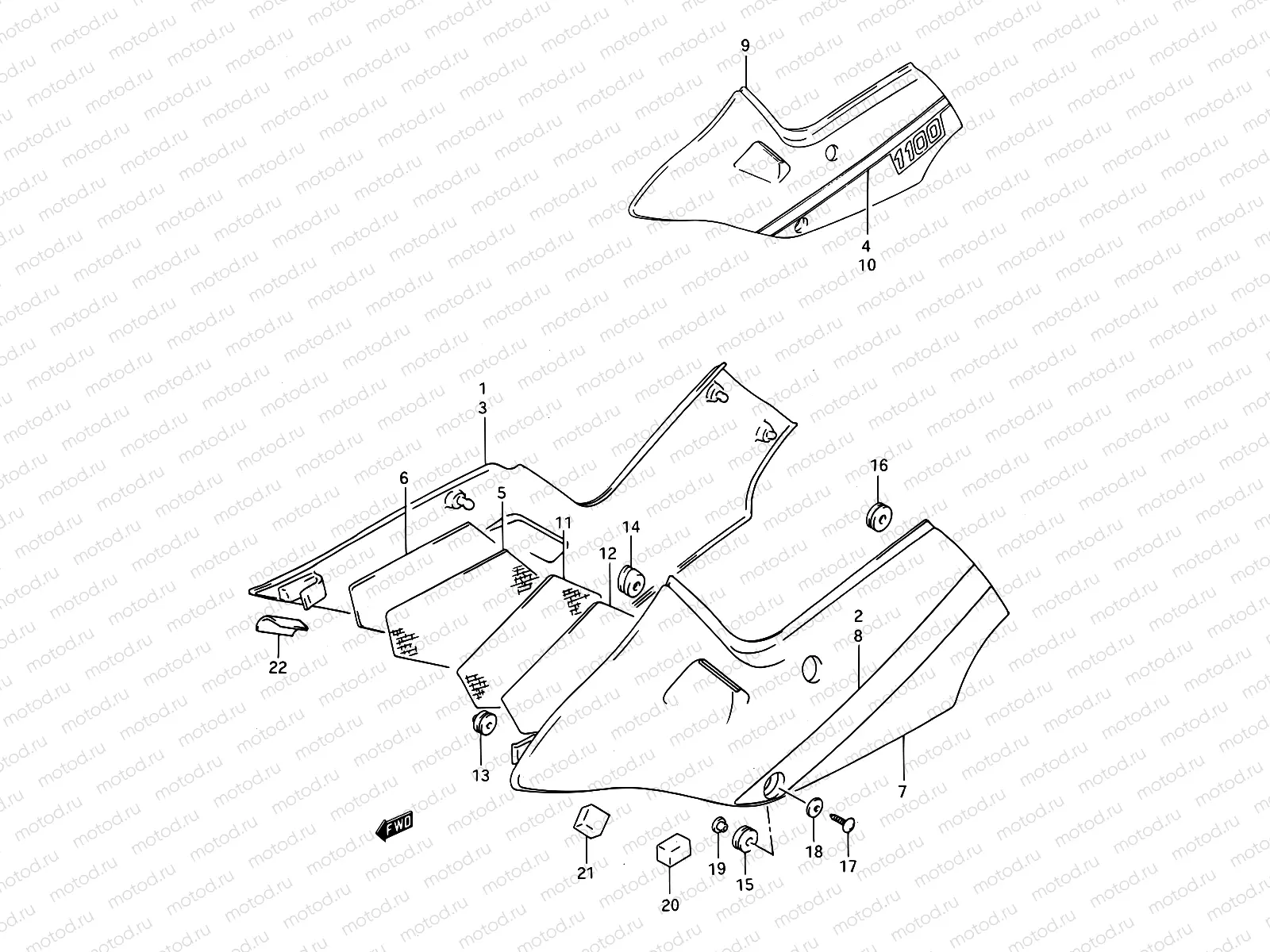

37A - FRAME COVER (MODEL M/N/P)

37A - FRAME COVER (MODEL M/N/P)
Например: 47110-48C50-19A
1
47110-48C50-19A
over, frame rh (red)
2
68135-48C00-0WT
.tape set, rh
5
47166-48B01
Heat shield, rh
6
47169-48B01
alancer sheet, rh
7
47210-48C50-19A
over, frame lh (red)
8
68145-48C00-0WT
.tape set, lh
11
47266-48B00
Heat shield, lh
12
47269-48B00
alancer sheet, lh
13
47162-48B10
Cushion
14
47163-48B10
CUSHION,COVER FRAME FR NO.2
270 ₽/шт
15
47161-48B10
Damper (rear)
16
09320-08527
Cushion
1 640 ₽/шт
17
09125-06079
Vis
18
09160-06084
Шайба 6.5X18X1
81 ₽/шт
19
09169-06058
Rondelle
20
47165-48B11
CUSHION
250 ₽/шт
21
56314-48B10
CUSHION
210 ₽/шт
22
47261-48B00
PROTECTOR,FRAME COVER FR
512 ₽/шт
