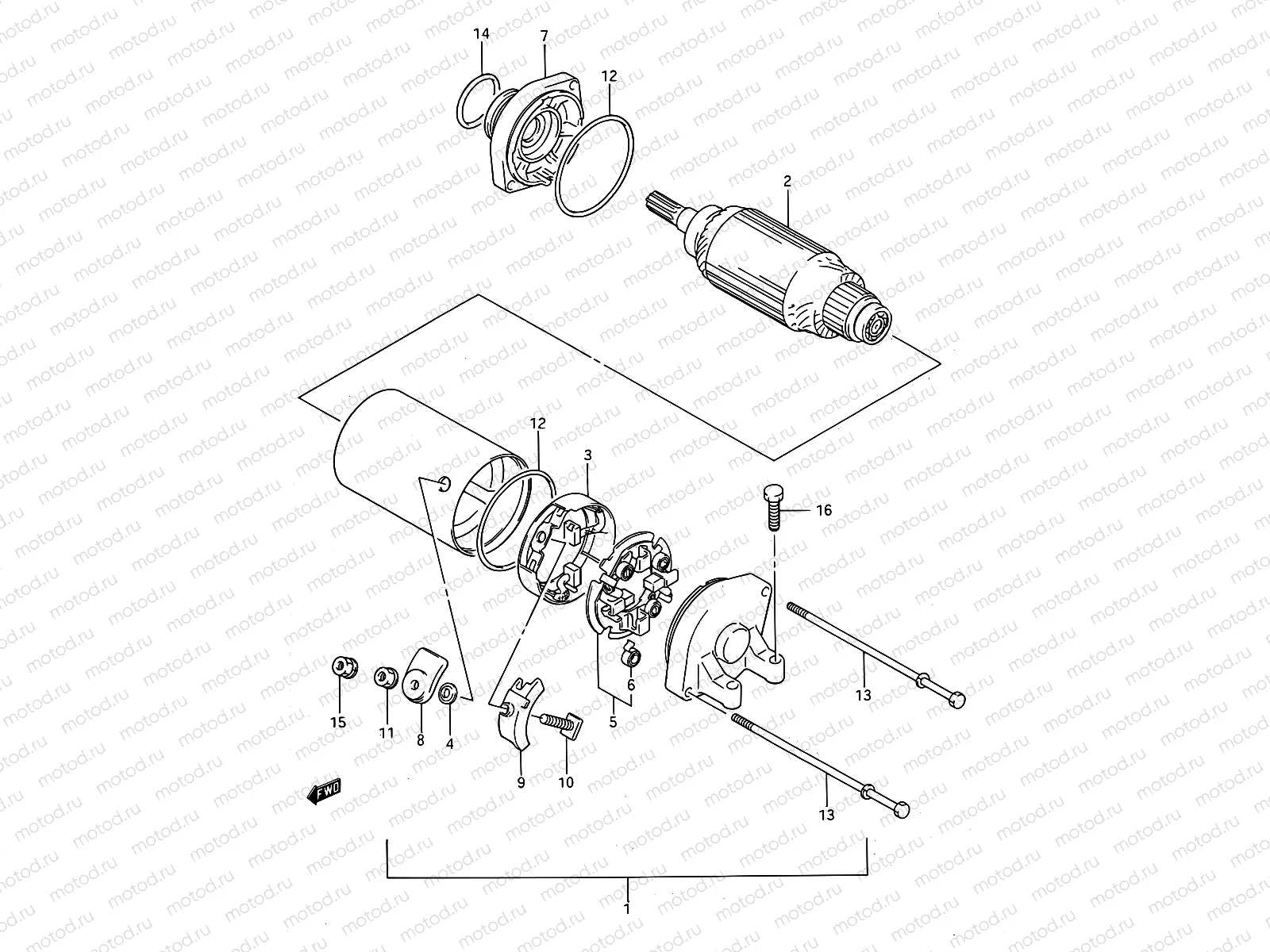

19 - STARTING MOTOR

19 - STARTING MOTOR
Например: 31100-48B01-H17
1
31100-48B01-H17
Moteur de démarreur
2
31310-48B01-H17
Armature
3
31131-48B00
Term.set,brush
4
31143-48B00
Gasket
5
31132-48B00
rush holder se
6
31135-65010
SPRING
227 ₽/шт
7
31150-48B00
.bracket set
7
31150-48B10
.bracket set
8
31172-48B10
Втулка
371 ₽/шт
9
31172-48B20
ushing
10
31130-48B00
Vis
11
31145-48B00
.nut
12
31264-44110
O RING
614 ₽/шт
13
31281-48B01
.bolt
13
31281-48B10
.bolt
14
31156-48B00
O RING
391 ₽/шт
15
08361-3506A
ГАЙКА
82 ₽/шт
16
09103-06212
БОЛТ
97 ₽/шт
