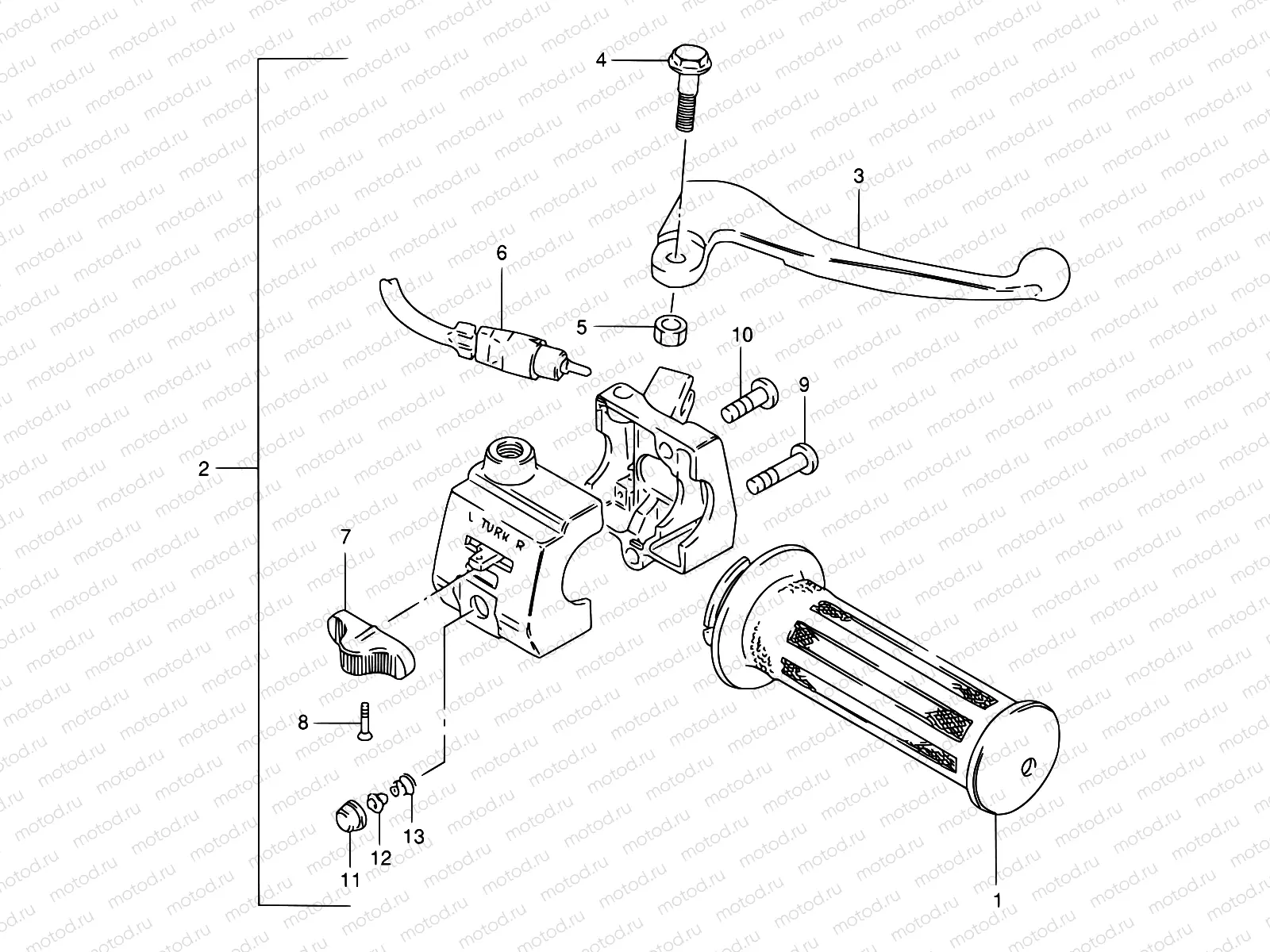

41 - RIGHT HANDLE LEVER

41 - RIGHT HANDLE LEVER

Например: 57110-09410-291

1

57110-09410-291

GRIP,THROTTLE(BLACK)

1 728 ₽/шт

2

57300-30A01

Brake lever / switch assy

2

57300-30A11

Brake lever / switch assy

3

57421-09401

.lever, brake

4

57431-09401

Болт рукоятки

348 ₽/шт

5

08319-21057

Гайка

97 ₽/шт

6

57460-09402

.switch, stop

7

57321-09400

.knob

8

57523-02420

.screw

9

02112-75207

Болт

1 640 ₽/шт

10

02112-05167

Болт

81 ₽/шт

11

57571-02310

.button, starter

12

57372-02530

.contact

13

57582-02530

.spring
