Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI FB 100 SUZUKI FB100 R SUZUKI 40 - HANDLEBAR

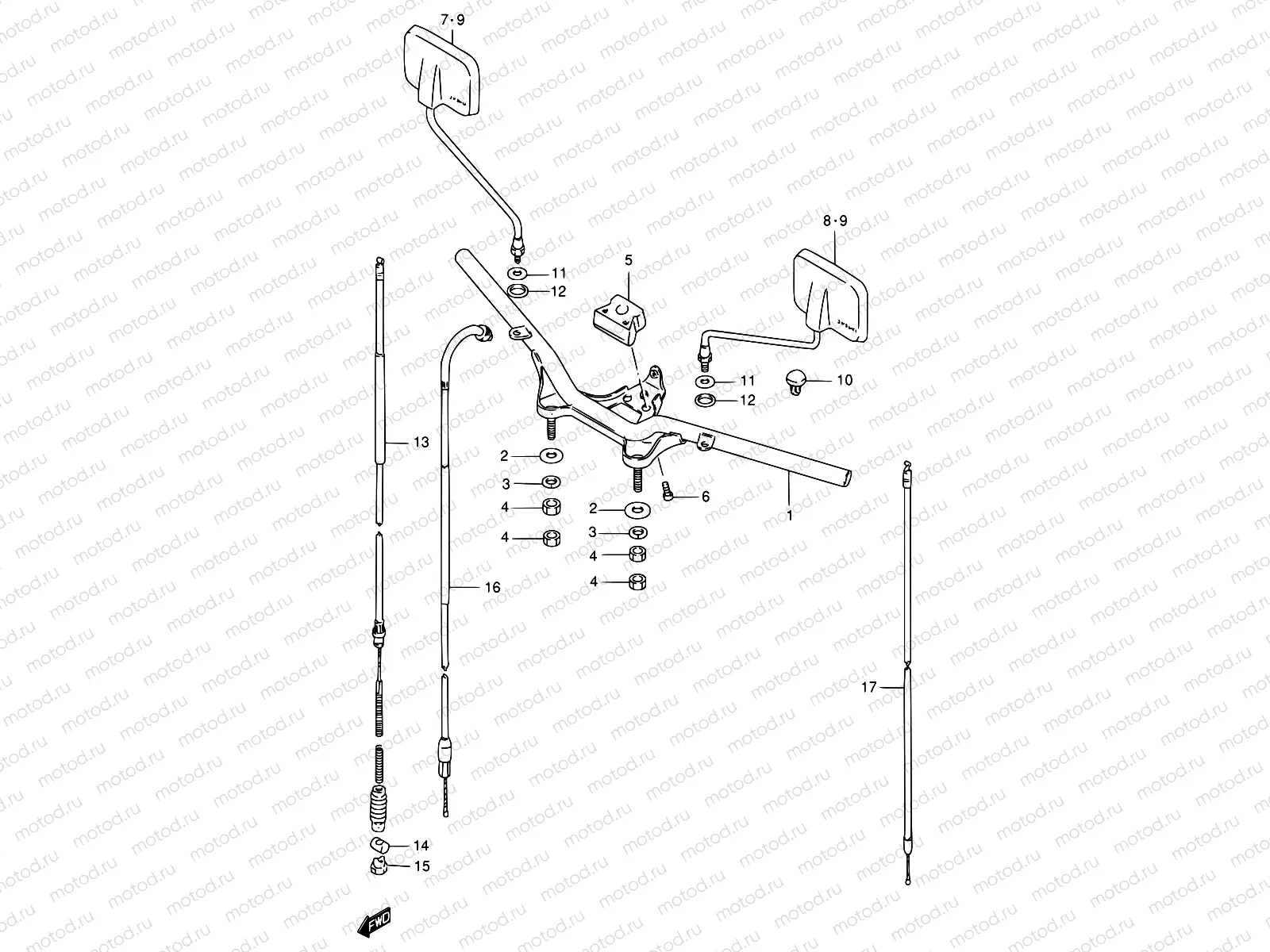

40 - HANDLEBAR

40 - HANDLEBAR

Например: 56110-30A10

1

56110-30A10

Handlebar

2

09160-08134

Шайба

97 ₽/шт

3

08321-0108B

Пластина замка

81 ₽/шт

4

08310-0008B

Гайка

85 ₽/шт

5

56277-30A00

Weight, handlebar

6

02112-3616B

Болт

85 ₽/шт

7

56500-30A11

Mirror assy, rear view rh

7

56500-30A21

Mirror assy, rear view rh

8

56500-30A21

Mirror assy, rear view lh

9

56500-30A11

Mirror assy, rear view

10

56614-30A00

Cap, rear view mirror

11

08322-0110B

Шайба

85 ₽/шт

12

09161-15003

Rondelle (15.5x23x2.0)

13

58110-09402

Cable, front brake

14

09209-10001

PIN,10X19

194 ₽/шт

15

09150-05101

Гайка

211 ₽/шт

16

58300-30A00

Кабель дросселя

1 568 ₽/шт

17

58410-02X01

Cable, starter
