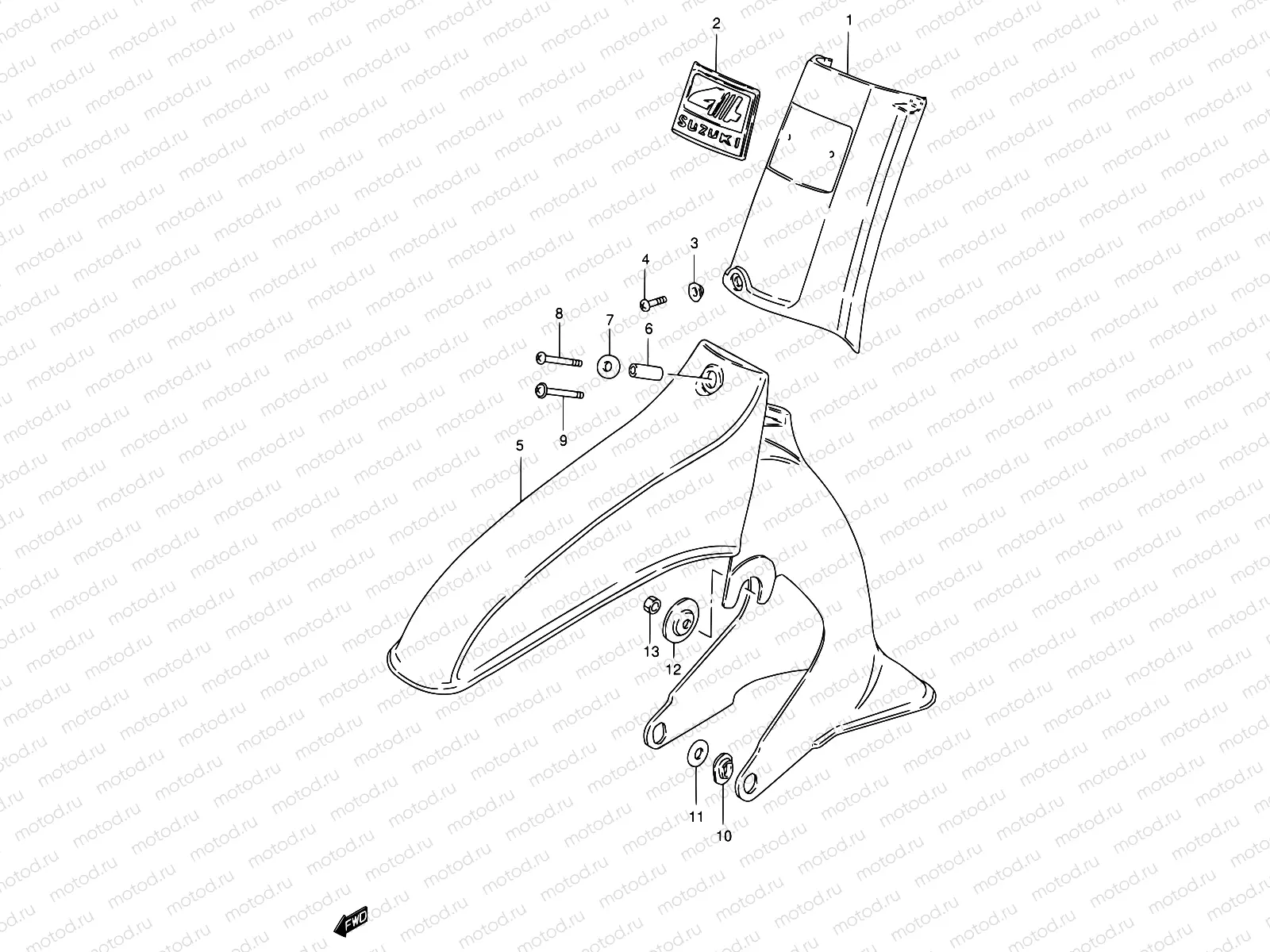

38 - FRONT FENDER (MODEL G/R/S/V)

38 - FRONT FENDER (MODEL G/R/S/V)
Например: 51871-09411-00J
1
51871-09411-00J
Cover, front fork (red)
1
51871-09411-04Y
Cover, front fork (blue)
1
51871-09411-24D
Cover, front fork (maroon)
1
51871-09411-19A
Cover, front fork (red)
1
51871-09411-0NF
Cover, front fork (blue)
2
68211-09401
Emblem, front fork cover
3
09169-05008
Шайба
162 ₽/шт
4
02142-05127
Болт
85 ₽/шт
4
09125-05054
Screw (5x12)
5
53111-09410-00J
Front mudguard (red)
5
53111-09410-04Y
Front mudguard (blue)
5
53111-09410-24D
Fender, front (maroon)
5
53111-09410-19A
FENDER,FR
11 339 ₽/шт
5
53111-09410-0NF
ront mudguard (blue)
6
09180-06067
SPACER(6.5X10.5X22.5)
1 370 ₽/шт
9
09136-06094
Screw (6x35)
10
09169-11003-XC0
11
09160-10126
Шайба
1 250 ₽/шт
12
09164-08012
Шайба
2 030 ₽/шт
13
08310-0008B
Гайка
85 ₽/шт
