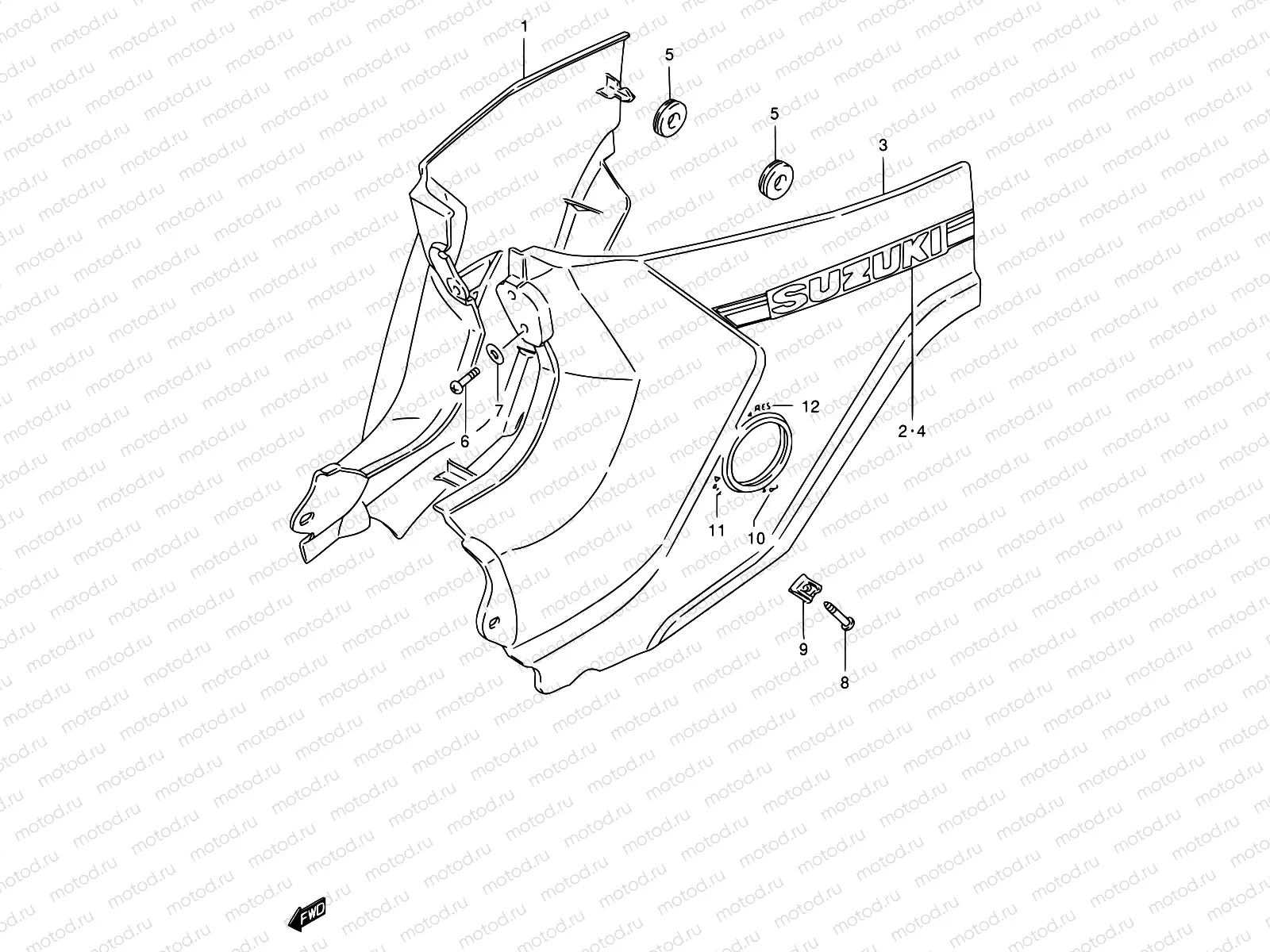

35 - FRAME COVER (MODEL G/R/S/V)

35 - FRAME COVER (MODEL G/R/S/V)
Например: 47111-30A00-24D
1
47111-30A00-24D
Cover, side rh (maroon)
1
47111-30A00-19A
Cover, side rh (red)
1
47111-30A00-0NF
Cover, side rh (blue)
2
68130-30A00-84G
Tape set, side cover rh
2
68130-30A00-66S
Tape set, side cover rh
3
47210-30A21-24D
Cover, side lh (maroon)
3
47210-30A21-19A
Cover, side lh (red)
3
47210-30A21-0NF
Cover, side lh (blue)
4
68140-30A00-84G
Tape set, side cover lh
4
68140-30A00-66S
Tape set, side cover lh
5
09320-08514
Damper
6
02142-05167
Винт воздухозаборника №2
81 ₽/шт
7
09160-05043
Шайба
102 ₽/шт
8
03241-0516A
Винт
81 ₽/шт
9
09148-05019
Гайка
102 ₽/шт
10
68364-30A00
Emblem, fuel cock
11
68364-30A10
Emblem, fuel cock
12
68364-30A20
Emblem, fuel cock
