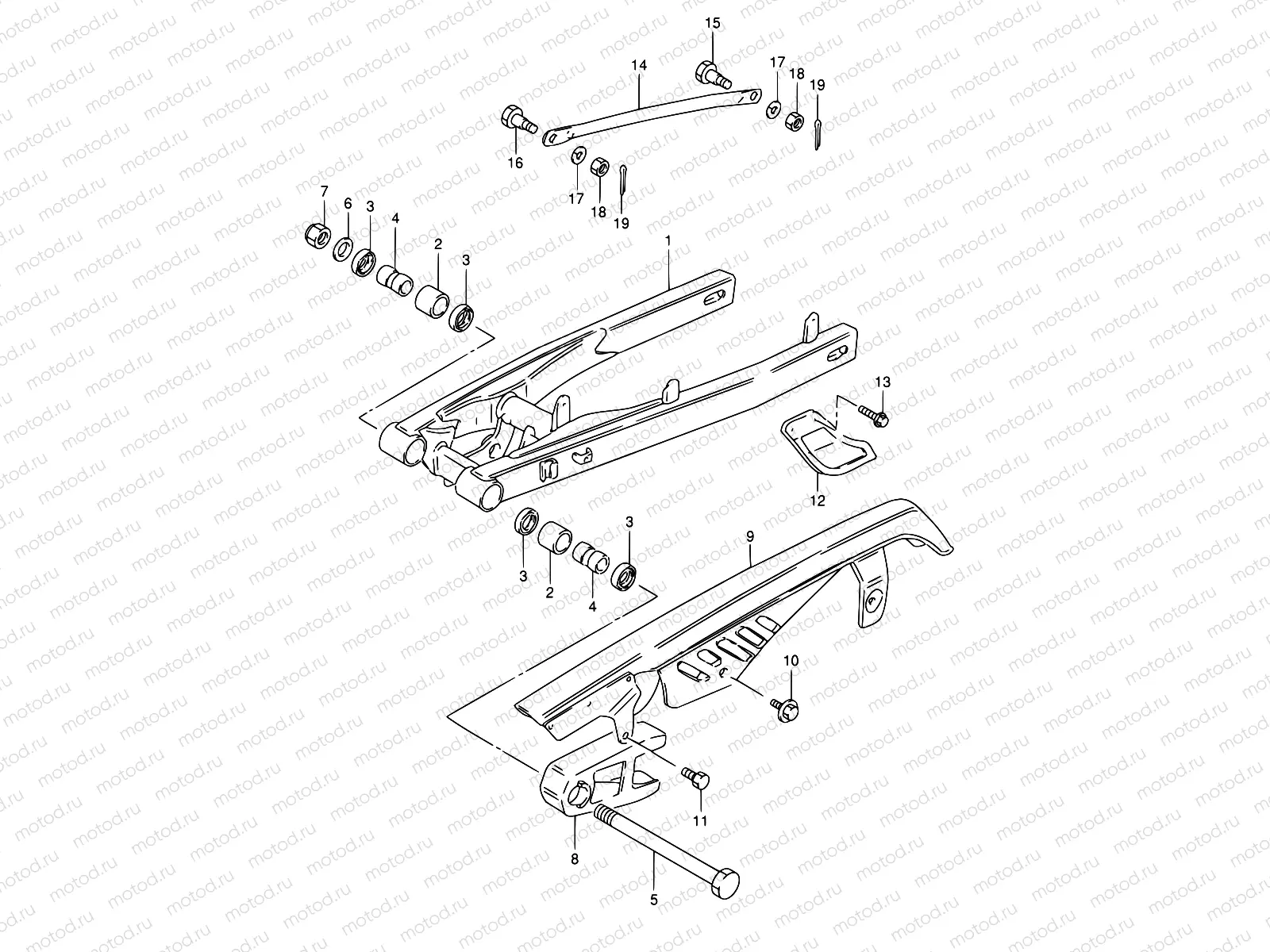

39B - REAR SWINGING ARM (MODEL M E17)

39B - REAR SWINGING ARM (MODEL M E17)

Например: 61000-13680-13L

1

61000-13680-13L

Swinging arm assy, rear (silver)

2

61261-13700

BUSHING,RR SWGARM PIVOT

962 ₽/шт

3

09283-20031

SEAL,OIL(20X27X5)

339 ₽/шт

4

61251-13700

Spacer,rr

5

61211-1370V

Shaft,rr swgarm

6

08322-01147

Шайба

85 ₽/шт

7

08319-2114A

Гайка

2 390 ₽/шт

8

61273-13610

Buffer,chain to

9

61310-13690

Case comp,chain

10

09116-06096

BOLT(6X10)

1 370 ₽/шт

11

01550-0610B

Болт

85 ₽/шт

12

61341-13710

Guide,chain

13

01550-0616B

БОЛТ

81 ₽/шт

14

64311-48700-13L

TORQUELINK,RR

1 279 ₽/шт

15

09111-08013

BOLT(8X26.5)

178 ₽/шт

16

09111-08015

BOLT(8X22)

1 840 ₽/шт

17

08321-01087

Пластина замка

81 ₽/шт

18

09140-08008

ШАЙБА

97 ₽/шт

19

04111-2020A

Штифт

81 ₽/шт
