Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI TS 50 SUZUKI TS50XK R SUZUKI (VIN: SA11C) 38A - REAR SWINGING ARM (SEE NOTE)

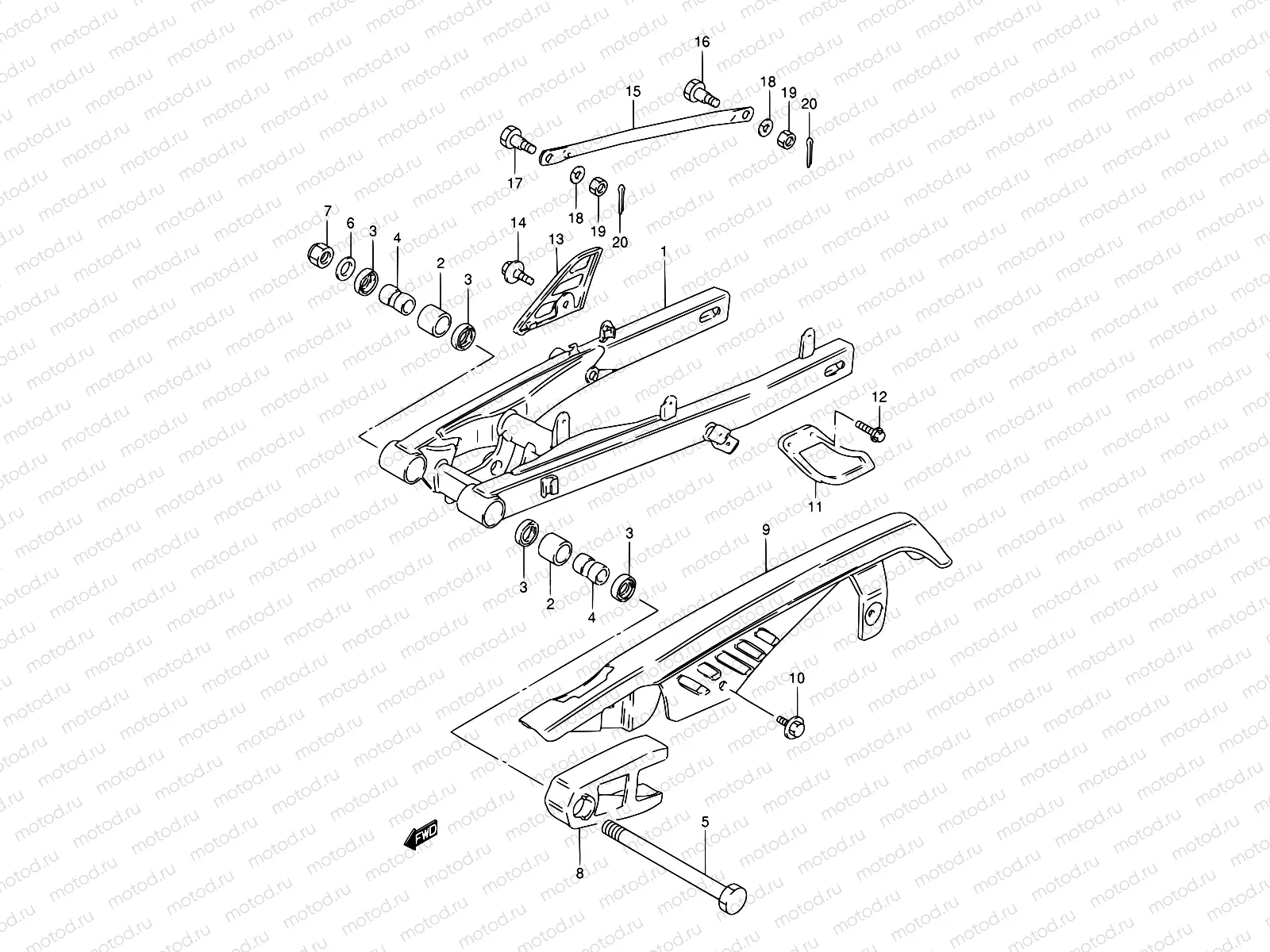

38A - REAR SWINGING ARM (SEE NOTE)

38A - REAR SWINGING ARM (SEE NOTE)

Например: 61000-13730-13L

1

61000-13730-13L

Rr.swingingarm

2

61261-13700

BUSHING,RR SWGARM PIVOT

962 ₽/шт

3

09283-20031

SEAL,OIL(20X27X5)

339 ₽/шт

4

61251-13700

Spacer,rr

5

61211-1370V

Shaft,rr swgarm

6

08322-0114B

Шайба

1 370 ₽/шт

7

08319-2114A

Гайка

2 390 ₽/шт

8

61273-13610

Buffer,chain to

9

61311-13610-291

Case,chain

10

09116-06096

BOLT(6X10)

1 370 ₽/шт

11

61341-05250

Guide, chain

11

61341-13710

Guide,chain

12

01550-0616B

БОЛТ

81 ₽/шт

13

61391-13610

Guard, foot (black)

14

09116-06096

BOLT(6X10)

1 370 ₽/шт

15

64311-48700-13L

TORQUELINK,RR

1 279 ₽/шт

16

09111-08013

BOLT(8X26.5)

178 ₽/шт

17

09111-08015

BOLT(8X22)

1 840 ₽/шт

18

08321-0108B

Пластина замка

81 ₽/шт

19

09140-08008

ШАЙБА

97 ₽/шт

20

04111-2020A

Штифт

81 ₽/шт
