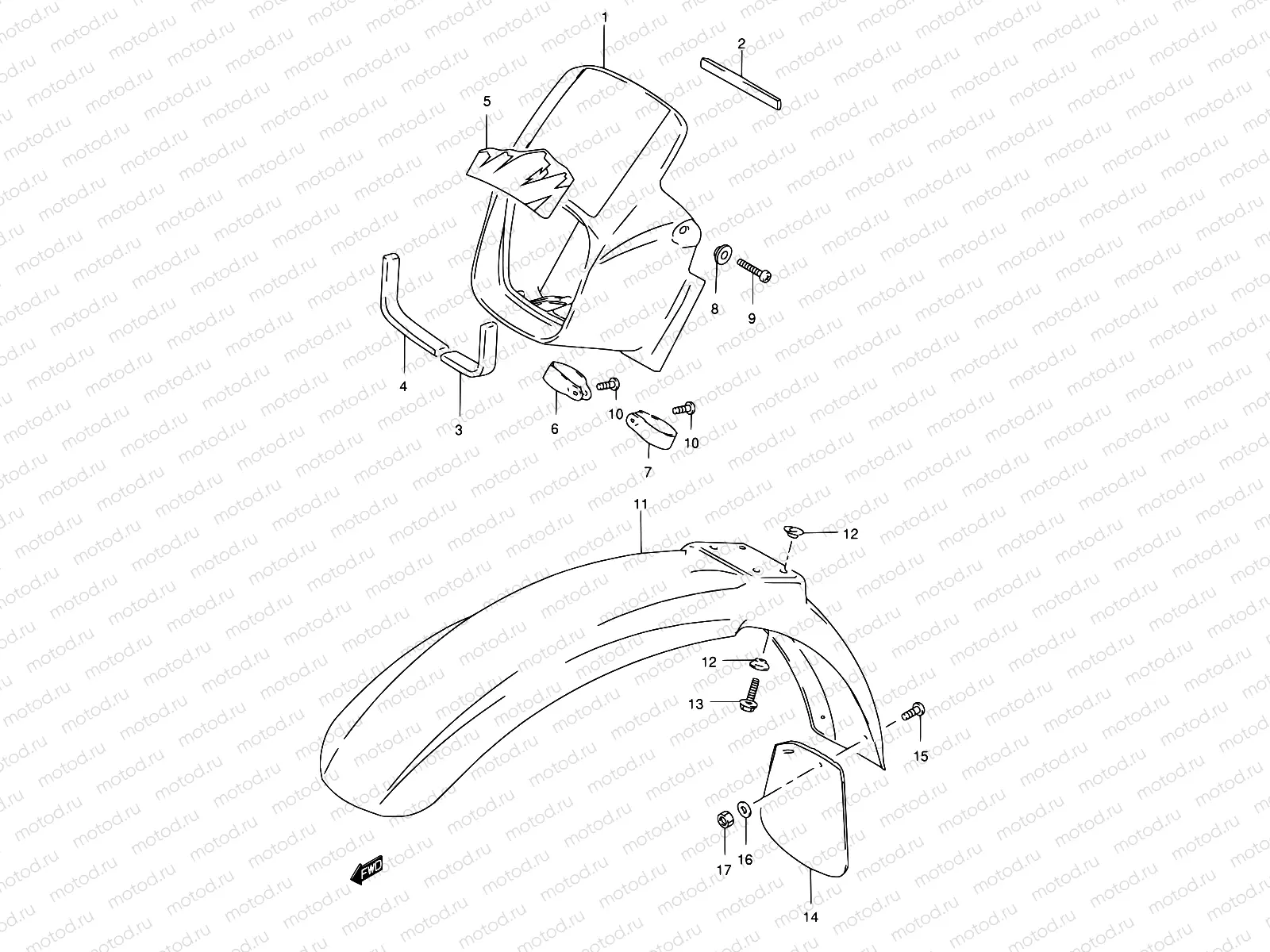

33B - HEADLAMP HOUSING (MODEL R)

33B - HEADLAMP HOUSING (MODEL R)

Например: 51810-13700-0NF

1

51810-13700-0NF

Housing, headlamp (blue)

1

51810-13700-21C

Housing head la

2

51827-13700

Cushion,head la

3

51827-13700

Cushion,head la

4

51827-13700

Cushion,head la

5

68725-13610-B7L

Tape,hdlmp.hsg.

5

68725-13610-B7M

Tape, headlamp cover

6

51971-13700

Clampheadlhou

7

51972-13700

Clamp, headlamp housing, lh

8

09169-06011

Пластина замка

759 ₽/шт

9

02112-36167

Болт

85 ₽/шт

10

03211-0516A

Болт

85 ₽/шт

11

53111-13620-0NF

ront mudguard (blue)

11

53111-13620-21C

Front mudguard (Black)

11

53111-34B00-13L

Fender,fr

11

53111-34B00-21C

Front mudguard (Black)

11

53111-13610-0NF

ront mudguard (blue)

11

53111-13610-21C

Fender, front (black)

12

09169-06053

Шайба (6.3X16X1)

97 ₽/шт

13

01550-0616B

БОЛТ

81 ₽/шт

13

01570-0616A

Болт

85 ₽/шт

14

53311-40002

GUARD,MUD

888 ₽/шт

15

02142-0512A

Болт

85 ₽/шт

16

08322-0105B

Шайба

81 ₽/шт

17

08310-0005B

Гайка

1 370 ₽/шт
