Главная Каталог товаров SUZUKI EPC < 124 cm³ SUZUKI TS 50 SUZUKI TS50XK R SUZUKI (VIN: SA11C) 28A - SEAT (MODEL M/R)

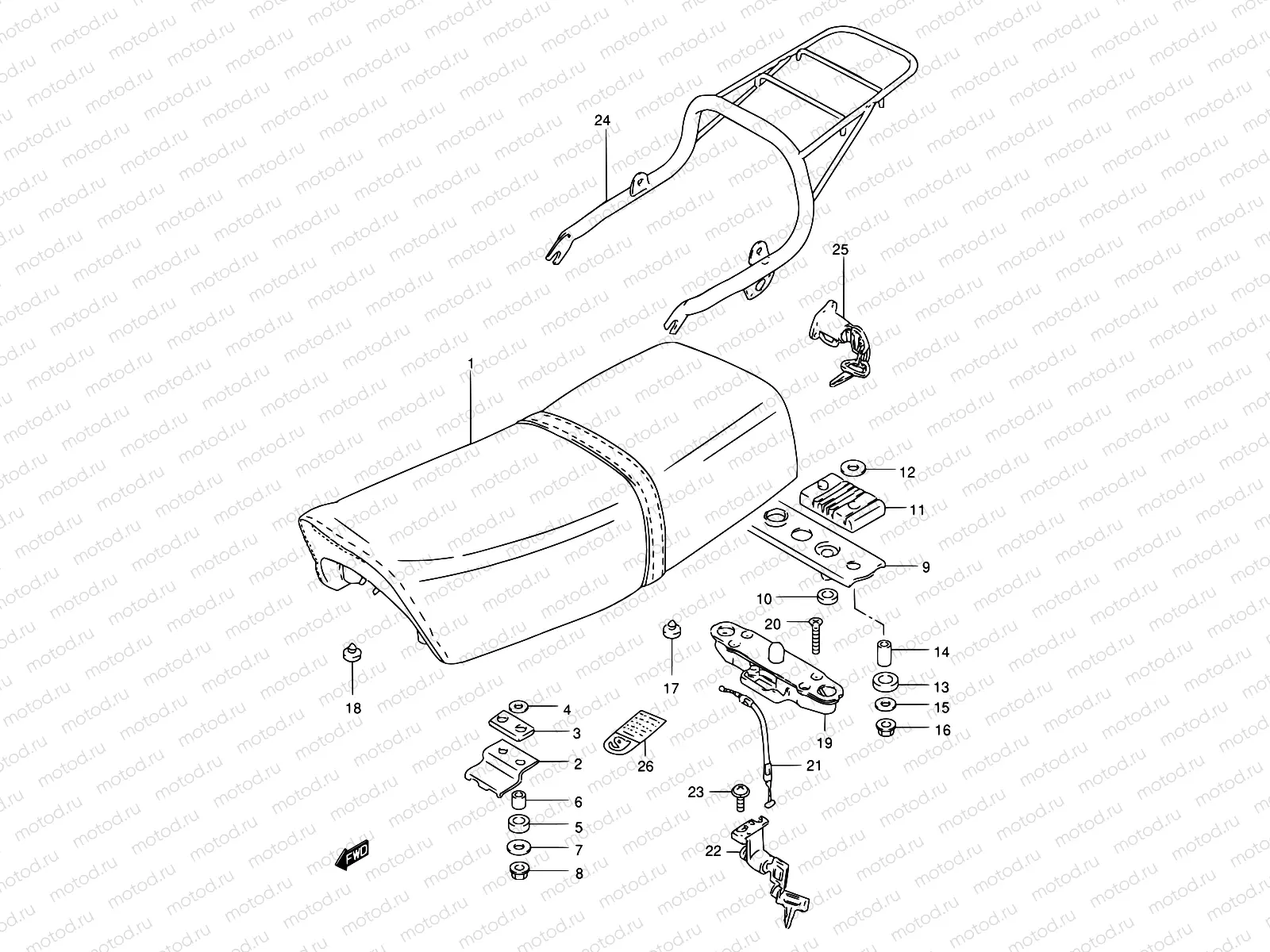

28A - SEAT (MODEL M/R)

28A - SEAT (MODEL M/R)

Например: 45100-34B41-H41

1

45100-34B41-H41

Seat set

1

45100-34B50-6LJ

Seat set

1

45100-34B50-6LK

Seat set

1

45100-34B30-6LJ

Seat set

1

45100-34B30-6LK

Seat set

1

45100-34B60-6LJ

Seat set

1

45100-34B60-6LK

Seat set

1

45100-13771-C2R

Seat set

1

45100-13670-8PB

Seat set

1

45100-13781-8PB

Seat set

2

45119-13600

Plate,seat froh

3

45125-13600

ZITTING

4

08322-0106A

Шайба

81 ₽/шт

5

09324-26470

CUSHION

97 ₽/шт

6

09180-06249

Кольцо/шайба

194 ₽/шт

7

09160-06084

Шайба 6.5X18X1

81 ₽/шт

8

08316-10067

Гайка

1 330 ₽/шт

9

45210-13700

Plate,seat lst

10

45213-13601

CUSHION,SEAT LOCK(10X22X6)

194 ₽/шт

11

45126-13600

.cushion, upper

12

09160-06084

Шайба 6.5X18X1

81 ₽/шт

13

45147-23450

CUSHION,SEAT FR

162 ₽/шт

14

45219-23450

.spacer

15

08212-06201

Шайба

81 ₽/шт

16

08316-10067

Гайка

1 330 ₽/шт

17

09321-10011

САЙЛЕНТБЛОК

162 ₽/шт

18

09321-10012

САЙЛЕНТБЛОК

178 ₽/шт

19

45220-13601

LOCK ASSY,SEAT STRIKER

5 396 ₽/шт

20

02112-0630A

Болт

85 ₽/шт

21

45280-13600

Cable,seat lock

22

95700-13831

Lock set,tank

23

02112-3512A

Болт

1 060 ₽/шт

24

46310-13711

Carrier, sports

24

46310-13610

Carrier, sports

24

46310-13732

Carrier

24

46310-13760

Carrier, sports

25

95700-38840

Lock set,helmet

26

11967-82000

LABEL
