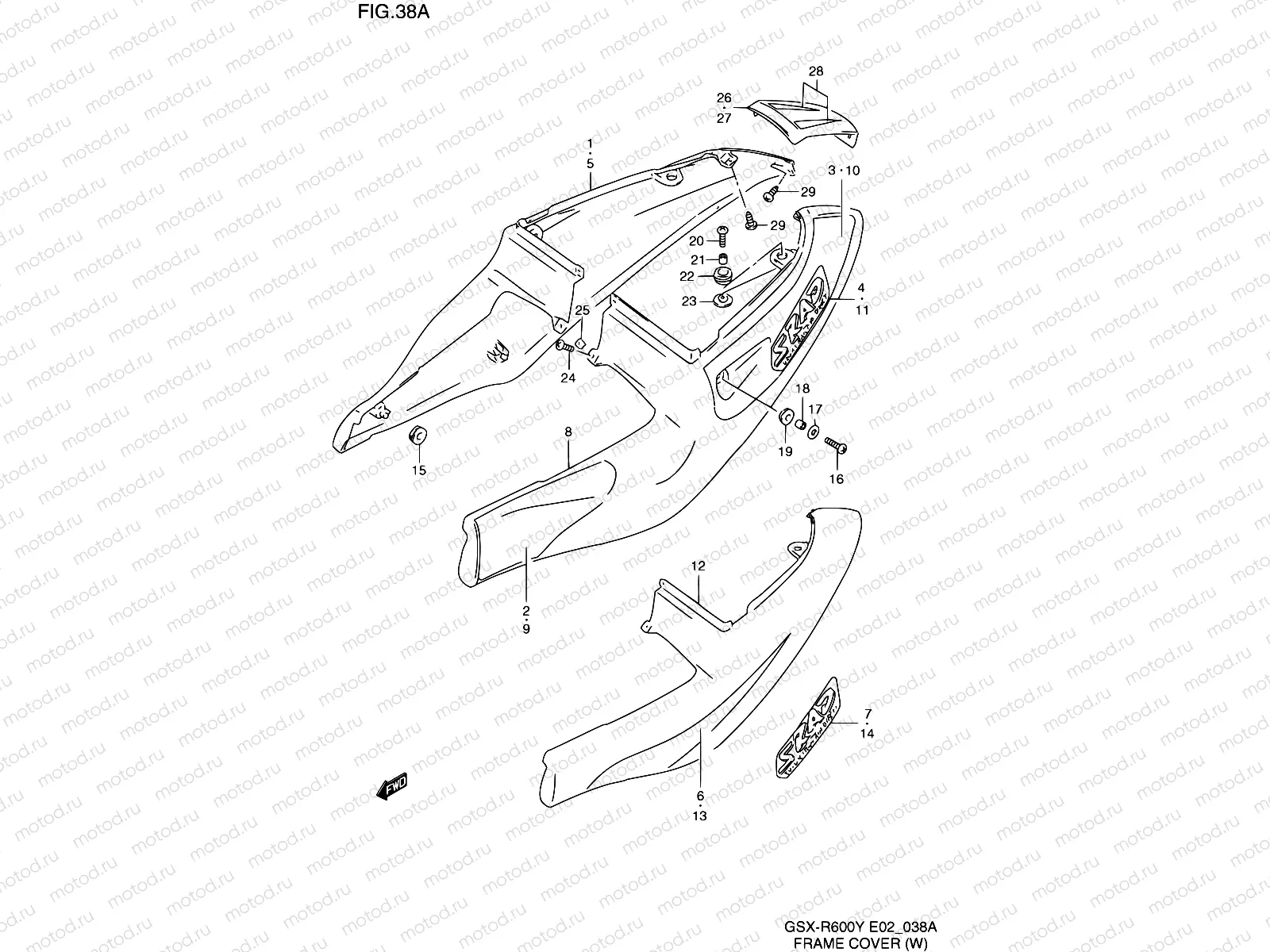

38A - FRAME COVER (MODEL W)

38A - FRAME COVER (MODEL W)

Например: 47110-34E30-1PX

1

47110-34E30-1PX

Cover,frame,r.

1

47110-34E30-019

Cover,frame,r.

2

68135-34E30-Y0W

.tape, no.1 rh (orange)

2

68135-34E30-24K

.tape, no.1 rh (charcoal)

3

68135-34E40-Y0W

Tape,frame cove

3

68135-34E40-Y2D

Tape,frame cove

4

68131-33E30-K4F

mblem,frame

4

68131-33E30-K3W

mblem,frame

5

47110-34E20-0JW

Cover,frame,r

6

68135-34E20-Y3P

Tape,frame cove

7

68131-33E30-F3S

MBLEM,FRAME COVER

1 744 ₽/шт

8

47210-34E30-1PX

Cover,frame,l.

8

47210-34E30-019

Cover,frame,l.

9

68145-34E30-Y0W

Tape,frame cove

9

68145-34E30-24K

Tape,frame cove

10

68145-34E40-Y0W

Tape,frame cove

10

68145-34E40-Y2D

Tape,frame cove

11

68131-33E30-K4F

mblem,frame

11

68131-33E30-K3W

mblem,frame

12

47210-34E20-0JW

COVER,FRAME,L(WHITE)

31 280 ₽/шт

13

68145-34E20-Y3P

Tape,frame cove

14

68131-33E30-F3S

MBLEM,FRAME COVER

1 744 ₽/шт

15

09320-08527

Cushion

1 640 ₽/шт

16

09139-06071

Винт,6X20

3 480 ₽/шт

17

09160-06054

Шайба

129 ₽/шт

18

09180-06258

SPACER(6.5X9X6.7)

1 410 ₽/шт

19

94433-26B01

Cushion

20

09136-06083

Винт 6X30

1 720 ₽/шт

21

09180-06286

Кольцо/шайба

162 ₽/шт

22

45149-04A00

CUSHION,TAIL COVER UPR

162 ₽/шт

23

45326-17C00

USHION,FRAME COVER LWR

786 ₽/шт

24

03241-1510B

Болт

1 290 ₽/шт

25

09148-05038

ГАЙКА

97 ₽/шт

26

47311-33E00-019

COVER,FRAME CTR

4 184 ₽/шт

27

47311-33E00

COVER,FRAME CTR(NON PAINT)

1 924 ₽/шт

28

68165-33E10-1LF

Tape set,frame

29

03541-1516A

Болт

1 210 ₽/шт
